System Box FRU Replacement

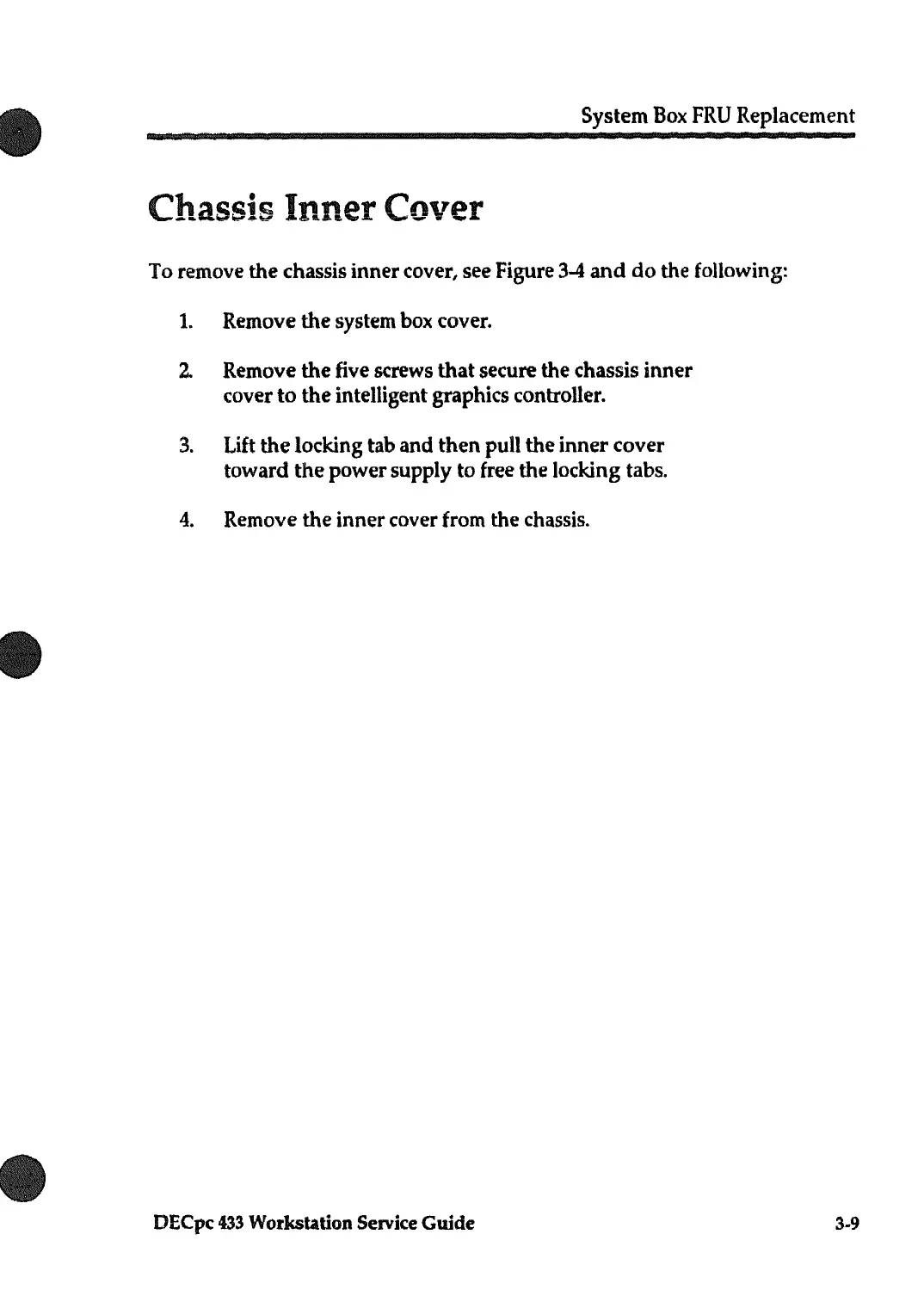

Chassis Inner Cover
To remove the chassis inner cover, see Figure 3-4 and do the following:
1. Remove the system box cover.
2. Remove the five screws that secure the chassis inner
cover to the intelligent graphics controller.
3. Lift the locking tab and then pull the inner cover
toward the power supply to free the locking tabs.
4. Remove the inner cover from the chassis.
DECpc 433 Workstation Service Guide
3-9
