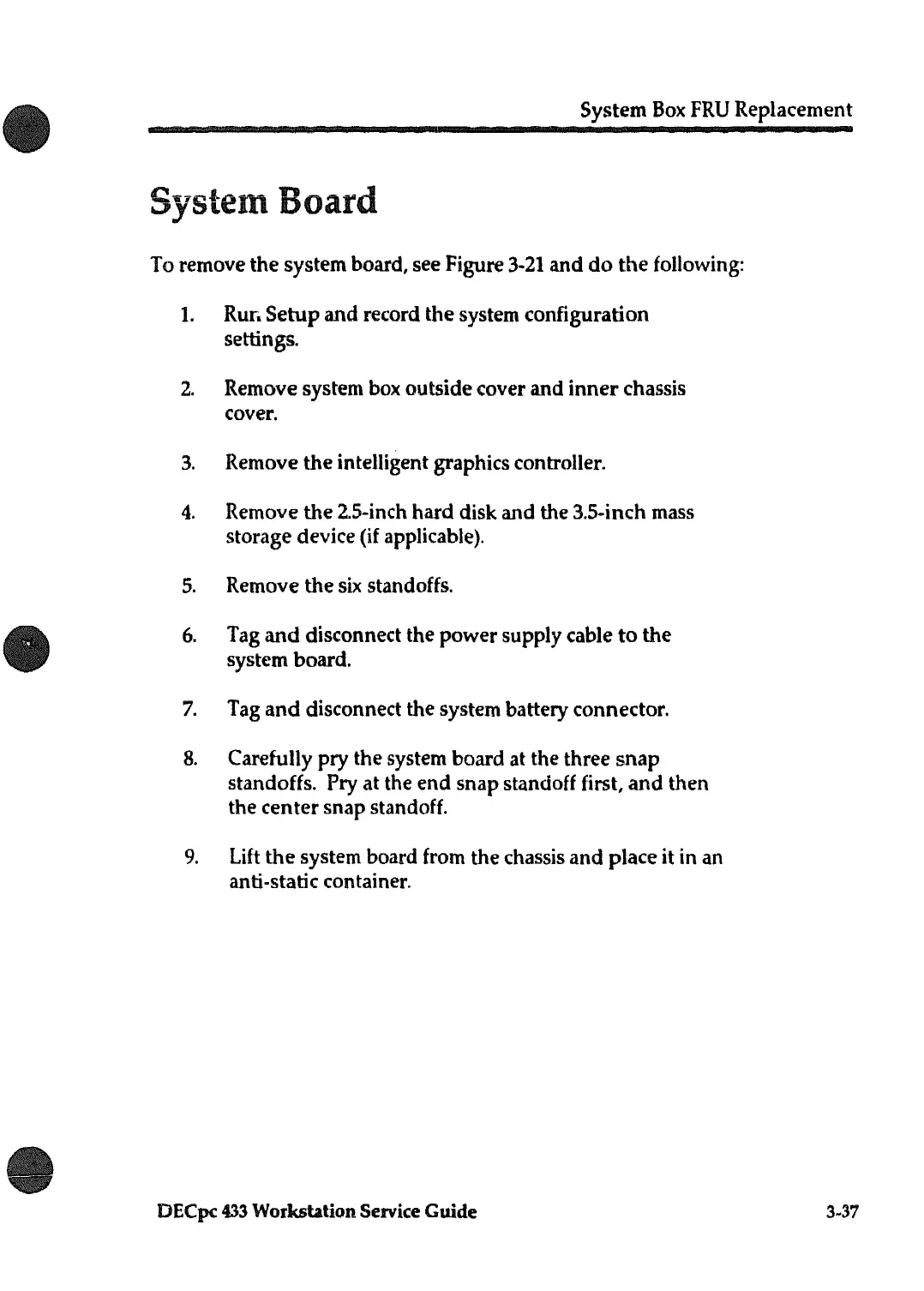

System

Box

FRU

Replacement

System Board

To remove

the

system board, see Figure

3-21

and

the

following:

Rur.

Setup

and

record

the

system configuration

settings.

Remove system box outside cover and

inner

chassis

cover.

Remove

the

intelligent graphics controller.

Remove

the

2.5-inch

hard

disk and the 3.5-inch mass

storage device

(if applicable).

Remove

the

six standoffs.

Tag

and

disconnect the

power

supply cable

the

system board.

Tag

and

disconnect the system battery connector.

Carefully pry the system board at the three

snap

standoffs.

Pry

the

end

snap standoff first,

and

then

the

center

snap standoff.

Lift

the

system board from

the

chassis

and

place it in an

anti-static container.

DECpc

433

Workstation Service

Guide
