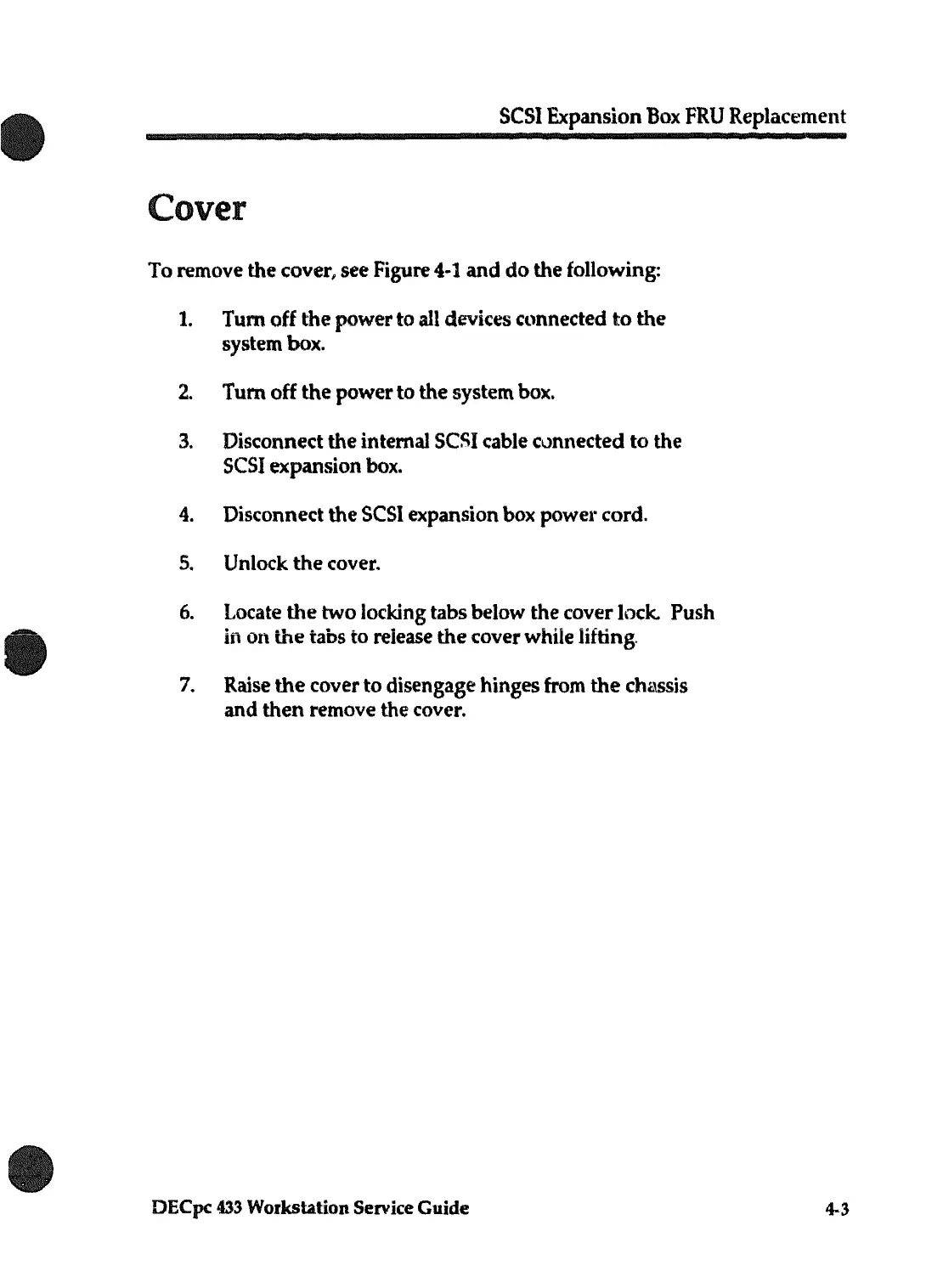

SCSI Expansion Box FRU Replacement

Cover

To

remove

the

cover, see

Figure4-l

and

do

the

following:

1.

Tum

off

the

power

to

all devices connected

to

the

system box.

2.

Tum

off

the

power

to

the

system box.

3.

Disconnect

the

intemal

SCSI

cable

c1.>nnected

to

the

SCSI

expansion box.

4.

Disconnect

the

SCSI expansion box

power

cord.

5.

Unlock

the

cover.

6.

Locate

the

two

locking tabs below

the

cover lock.

Push

in

on

the

tabs to release the cover whiie lifting.

7. Raise

the

cover

to

disengage

hinges

from

the

chassis

and

then

remove

the

cover.

DECpc

433

Workstation Service

Guide

4-3
