Example: Butterfly selection tool
This selection tool is useful for straight line integrations (densitometer traces)
and for integrating small angle scattering patterns from either a line or a point
x-ray source.

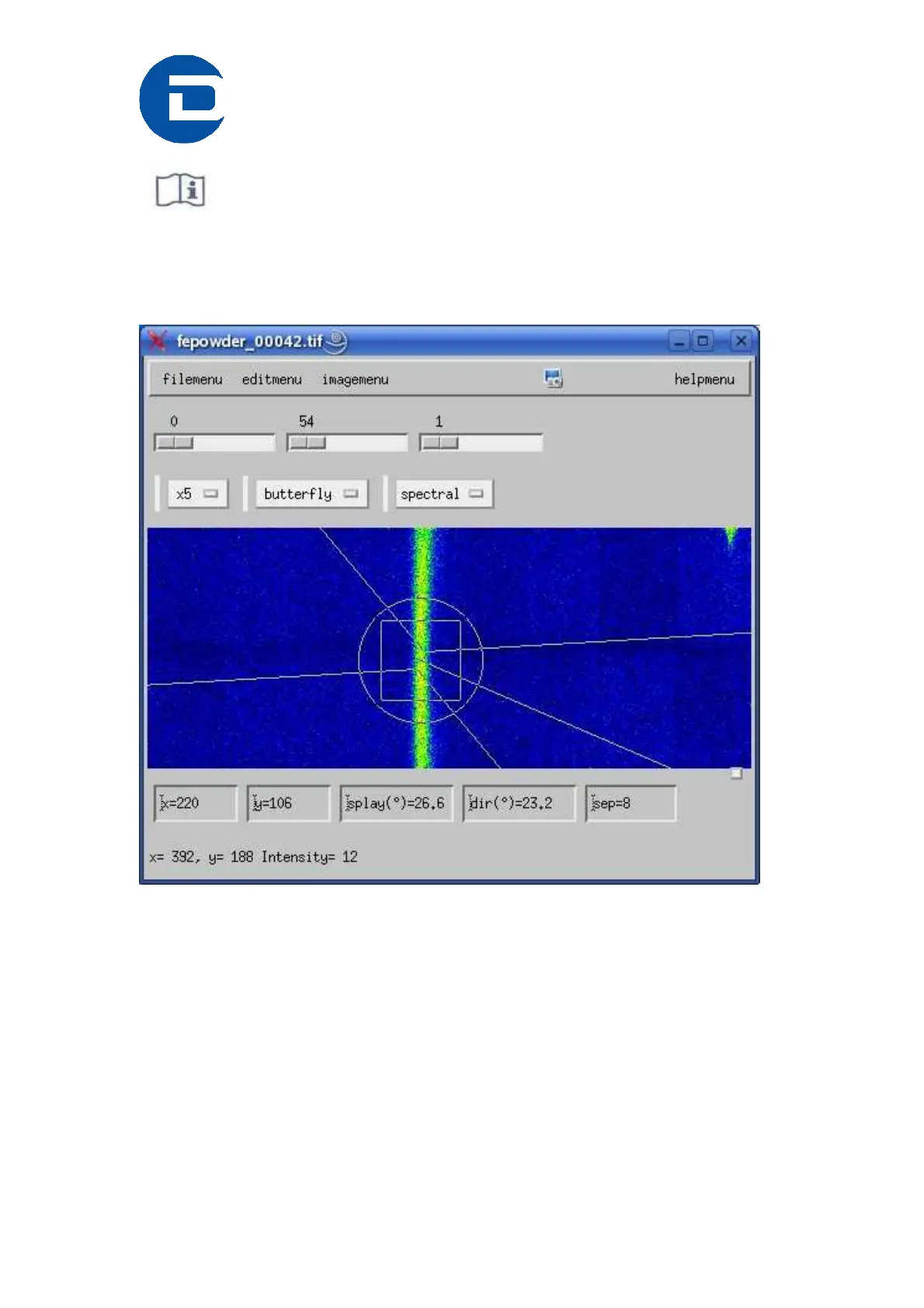

Figure 13 Example of a the butterfly selection tool
The size and position can be adjusted directly with the mouse or by typing the
values directly into the boxes. The circle is used only as a positioning aid. Use
the keyword integrate in the tvx window to display the result.
