Dectron, Inc. March 2012
DECTRON
DSH/DSV/RSH/DBH/RBH Series Dehumidifier Owners Manual
T.A.B. Set Optional Cooling-Water Flow
Data subject to change without notice.
198
AAA
151
21
XXX
YYY
ZZZ
Units with Water-Cooled Air-Conditioning Only

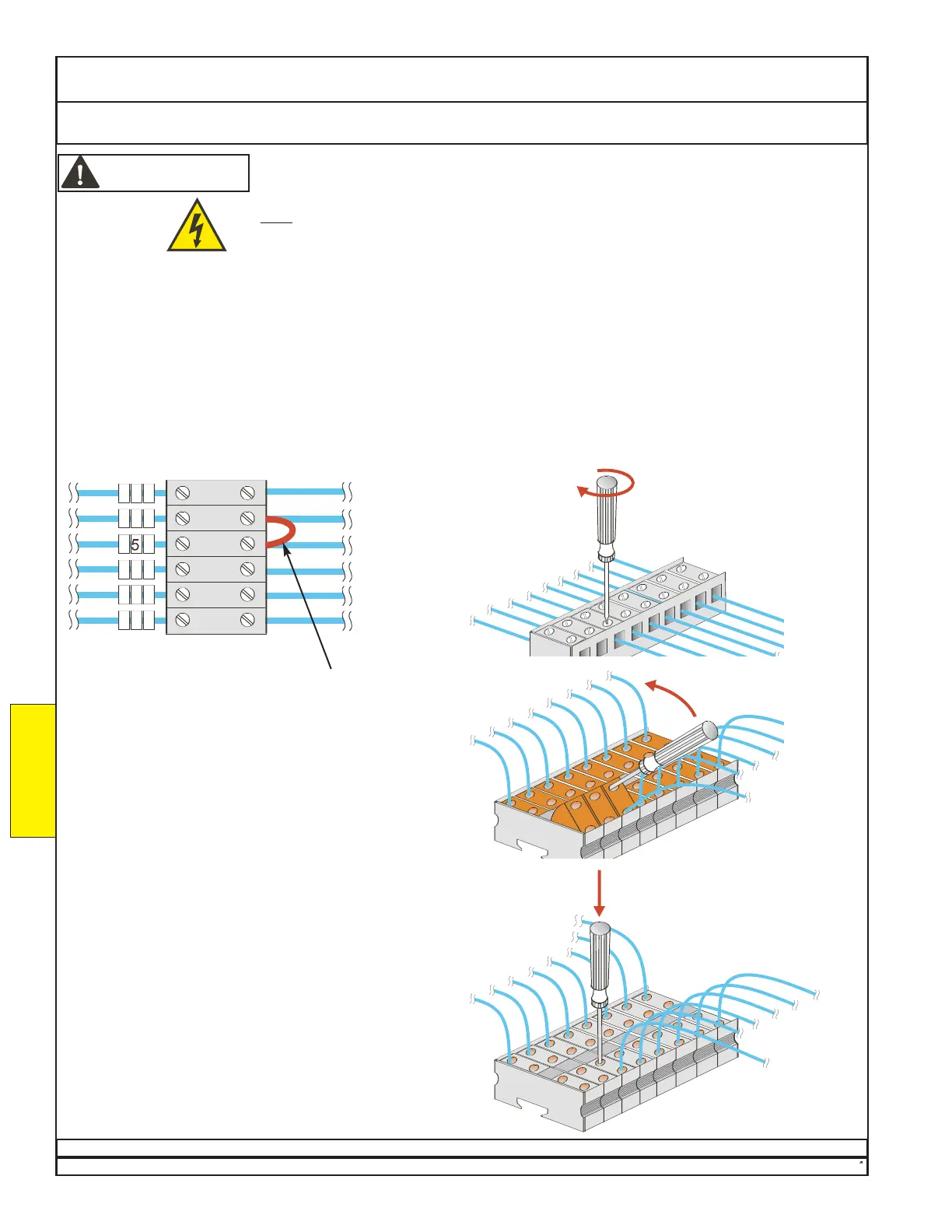

Locate the field-wiring terminal strip in the unit electrical enclosure.
Refer to the unit wiring diagram. Determine the wire numbers for the cooling-water-pump output, e.g. 151 and
152.
On the field-wiring terminal strip, locate those wires and jumper them together. There are several possibilities for
terminal strip styles - see diagrams below.
The presence of the jumper should bring on the cooling-water pump, open necessary valves, etc.
Samples
Actual location and
appearance may
vary.
Risk of electric shock. Can cause injury or death.
Exposed electric terminals may be present inside electrical and control enclosures.
Access to the voltage monitor (if any) may require opening the electrical enclosure.
Only
persons qualified to work with exposed line-voltage terminals should be allowed
to open the unit electrical enclosure.
Follow all safety regulations.
WARNING
Temporary Jumper
T.A.B.
