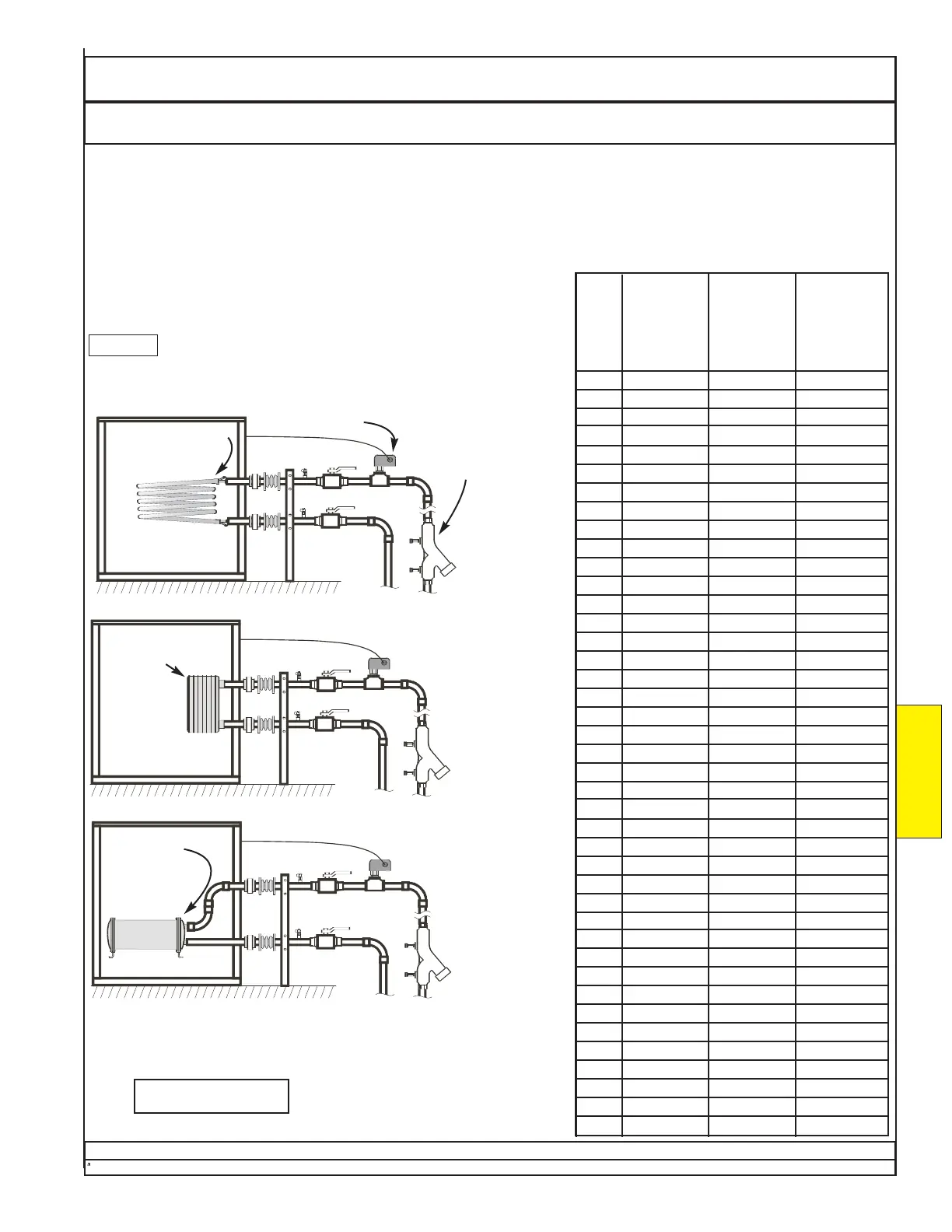

CONDENSER FLUID FLOW - units with water-cooled air conditioning only
Units with optional water-cooled air conditioning must have a constant flow of water that is at or below 90°F.
Where this cannot be achieved, contact Dectron. Contact Dectron before changing to any fluid other than water.
NOTE: Some sites may require cooling even during cool weather. Water flow must be available at all times.
Note the size of the unit from the unit nameplate.
Determine the type of cooling heat exchanger from the diagrams below.
NOTE: Do not confuse pool heat exchangers with
cooling heat exchangers.
Determine the water flow rate from the table shown here.
Dectron, Inc. March 2012
Owner’s Manual
DSH/DSV/RSH/DBH/RBH Series Dehumidifier
Set Optional Cooling-Water Flow T.A.B.
Data subject to change without notice.
199
010 6 (23)
015 6 (23)
020 8.5 (32) 8 (30)
030 15 (57) 10 (38)
040 20 (76) 15 (57)
042 17 (64) 16 (61)
050 20 (76) 20 (76)
060 30 (114) 20 (76)
062 30 (114) 20 (76)
080 40 (151) 30 (114)
082 40 (151) 30 (114)
100 40 (151) 40 (151)
102 40 (151) 40 (151)
120 60 (227) 50 (189)
122 60 (227) 50 (189)
150 60 (227) 60 (227)
152 80 (303) 60 (227)
162 80 (303) 70 (265)
164 80 (303) 60 (227)
182 80 (303) 80 (303)
184 80 (303) 80 (303)
202 80 (303) 100 (379)
204 90 (341) 100 (379)
242 100 (379) 120 (454)
244 100 (379) 120 (454)
282 120 (454) 140 (530)
284 120 (454) 160 (606)
362 160 (606) 140 (530)
364 160 (606) 160 (606)
368 160 (606) 160 (606)
402 180 (681) 190 (719)
404 180 (681) 200 (757)
408 180 (681) 200 (757)
482 120 (454) 240 (909)
484 200 (757) 240 (909)
488 200 (757) 240 (909)
562 240 (909) 280 (1060)
564 240 (909) 280 (1060)
568 240 (909) 320 (1211)
804 360 (1363) 380 (1438)
808 360 (1363) 400 (1514)
Co-axial
HX
GPM (LPM)
Water @
90°F (32°C)
Size
Plate
HX
GPM (LPM)
Water @
90°F (32°C)
Shell & Tube
HX
GPM (LPM)
Water @
90°F (32°C)
Plate Heat
Exchanger
Some units
may have
more than
one.
Shell & Tube
Heat Exchanger
Some units may have
more than one.
Samples
Appearance
may vary.
Measured Cooling-Water (if any) Flow
NOTICE
Risk of unit damage.
Excessive flow rates can damage heat exchangers.
Inadequate flow rates can cause failure to operate.
Co-axial Heat Exchanger
Some units may have
more than one.
Balancing
Valve
(by others)
Flow Switch
Samples
Appearance
may vary.
T.A.B.
5.31
