Installation Dedrone
10 v0.4 IM-Inst-RF360en

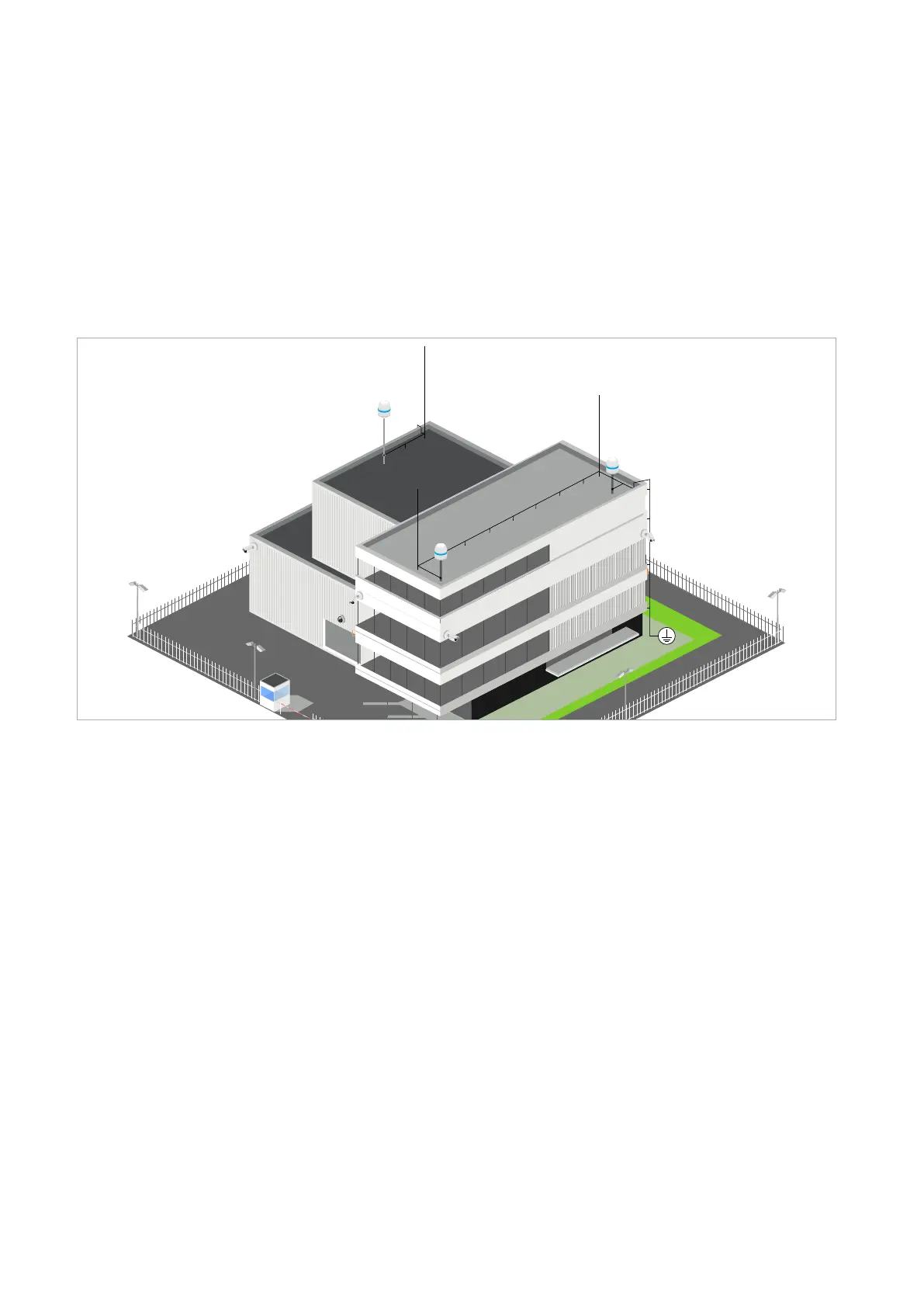

Lightning Protection Installation with RF-360s
Mounting Orientation
• Important for a good result is the vertical alignment of the device. Do not tilt the device.
5.4 Overvoltage Protection
For safe mounting in an exposed position overvoltage protection must be observed.
Ensure that the mast is connected to the lightning conductor of the building and there is a metallic
contact between the mast mount and the mast. The lightning conductor must be installed at least
1.5 m above the RF-360.
Ensure that the location has the appropriate clearance from power and lightning conductors, in
accordance with NEC725 and NEC800 (CEC Rule 16-224 and CEC Section 60 and Section 810 of the
National Electrical Code, ANSI/NFPA No.70).
6 Installation
6.1 Power Supply
The RF-360 can use two kinds of power supplies:
• AC power supply with the supplied power plug via a socket (AC 100-240V 50/60 Hz).
` Make sure that the power socket is grounded.
` In Denmark: Apparatets stikprop skal tilsluttes en stikkontakt med jord som giver forbindel-
se til stikproppens jord.
` In Finland: Laite on liitettävä suojakoskettimilla varustettuun pistorasiaan.
` In Norway: Apparatet må tilkoples jordet stikkontakt.
` In Sweden: Apparaten skall anslutas till jordat uttag
