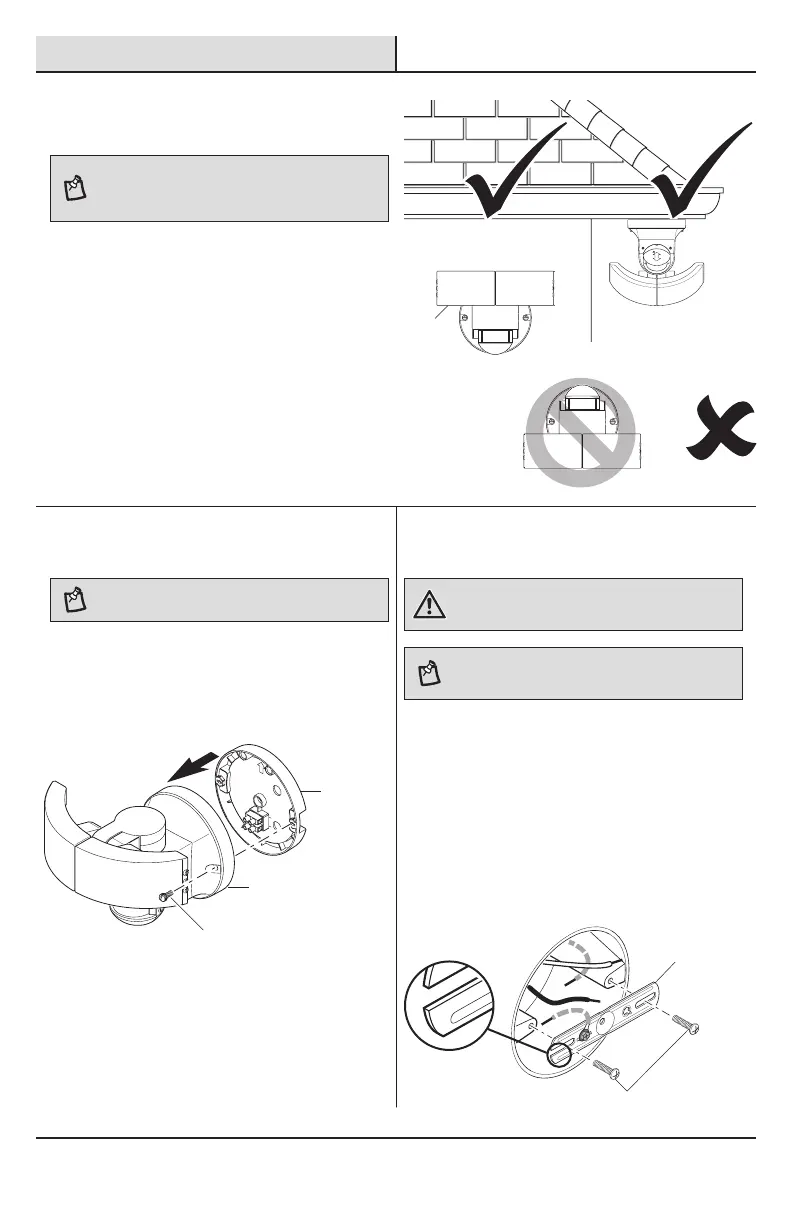

Installation
1
Determining the mounting
location
NOTE: The light xture should be mounted approximately
8 ft. (2.4 m) above the ground. If the light xture is
mounted higher than recommended, aiming the sensor
down will reduce the coverage area.
□ Determine the mounting location – wall or eave
mount.
□ Position the lamp heads (A) in the general
direction of the desired light coverage.
Wall Mount
Eave Mount
2
Removing the mounting plate
NOTE: This xture comes with a mounting plate (D). It is
pre-assembled on the light xture (B) for shipping.
□ Unscrew the two decorative screws (CC)
connecting the light xture (B) to the mounting
plate (D) and remove the mounting plate (D)
using the pull loop.
Black
Noir
Negro
L
N
White
Blanc
Blanco
3
Installing the mounting bracket
WARNING: Turn the power off at the circuit breaker or
fuse. Place tape over the circuit breaker switch and verify
power is off at the light xture.
NOTE: Four mounting bracket screws of various sizes are
included. The installation will only require two. Discard the
unused mounting bracket screws after installation.
□ Remove the existing light xture.
□ Install the mounting bracket (FF) with the
stamped word “FRONT” facing away from the
junction box. Use the mounting bracket screws
(AA or BB) that best t the junction box.
□ Firmly pull on the mounting bracket to verify
it is securely mounted to the junction box. If
necessary, use the screws that were removed
from the existing light xture.
FRON T
A
D
B
AA or BB
FF
CC
To Next Page
