Installation
Surfaces, synthetic laminates and adhesives
used must be heat resistant (100 °C
minimum).
The worktop must be aligned and fixed
horizontally.
Cut aperture for the hob in worktop as per
installation dimensions.
Product must be installed by a qualified
person in accordance with the regulations in
force. The manufacturer shall not be held
responsible for damages arising from
procedures carried out by unauthorized
persons which may also void the warranty.
Preparation of location and
electrical installation for the
product is under customer’s
responsibility.
The product must be installed in
accordance with all local
electrical regulations.
Prior to installation, visually check
if the product has any defects on
it. If so, do not have it installed.
Damaged products cause risks
for your safety.
Unpacking
• Please ensure that packaging material is
disposed of in a responsible manner.
• Plastic bags should be cut up to prevent
children playing with them and
accidentally suffocating.
• Some models feature a protective film
over stainless steel trim. This film must be
carefully removed before using the hob.
• If the appliance is damaged in any way,
do not use it. Report the damage to your
dealer.
*Minimum height to extractor as recommend
in hood instruction manual. If not
recommended in the hood instruction
manual, this height should be at least 650
mm.
**Minimum distance between cabinetry must
be equal to width of hob
Before installation

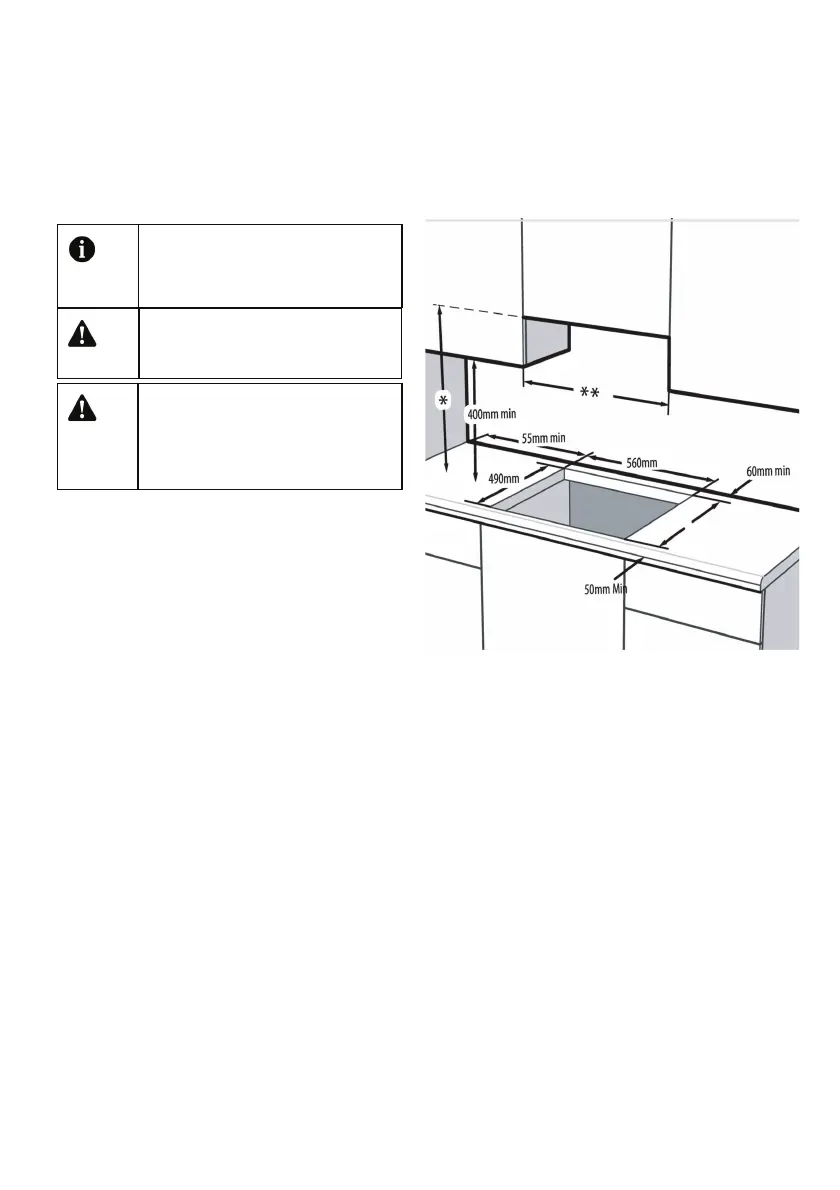

The hob is designed for installation into
commercially available work tops. A safety
distance must be left between the appliance
and the kitchen walls and furniture. See
figure (values in mm).
It can also be used in a free standing
position. Allow a minimum distance of 750
mm above the hob surface.
(*) If a cooker hood is to be installed above
the cooker, refer to cooker hood
manufacturer' instructions regarding
installation height. If not defined any size in
the hood manual, this height should be at
least 650 mm.
Remove packaging materials and transport
locks.

Defy DHD406A Specifications

General

Hob type	Ceramic
Product color	Black
Hob width size	- cm
Top surface type	Glass-ceramic
Appliance placement	Built-in
Cooking zone 1 type	Large
Cooking zone 2 type	Medium
Cooking zone 1 power	1800 W
Cooking zone 1 shape	Round
Cooking zone 2 power	1200 W
Cooking zone 1 diameter	180 mm
Cooking zone 1 position	Left front
Cooking zone 2 diameter	140 mm
Cooking zone 2 position	Right rear
Cooking zone 4 position	Right front
Number of cooking zones	4 zone(s)
Cooking zone 1 power source	Electric
Number of gas cooking zones	0 zone(s)
Built-in hood	No
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Connected load (gas)	- W
Connected load (electric)	6000 W
Control type	Touch
Display type	LED
Built-in display	Yes
Control position	Top front

Weight and Dimensions

Depth	510 mm
Width	650 mm
Height	55 mm
Installation compartment width	560 mm
Installation compartment depth (min)	490 mm
