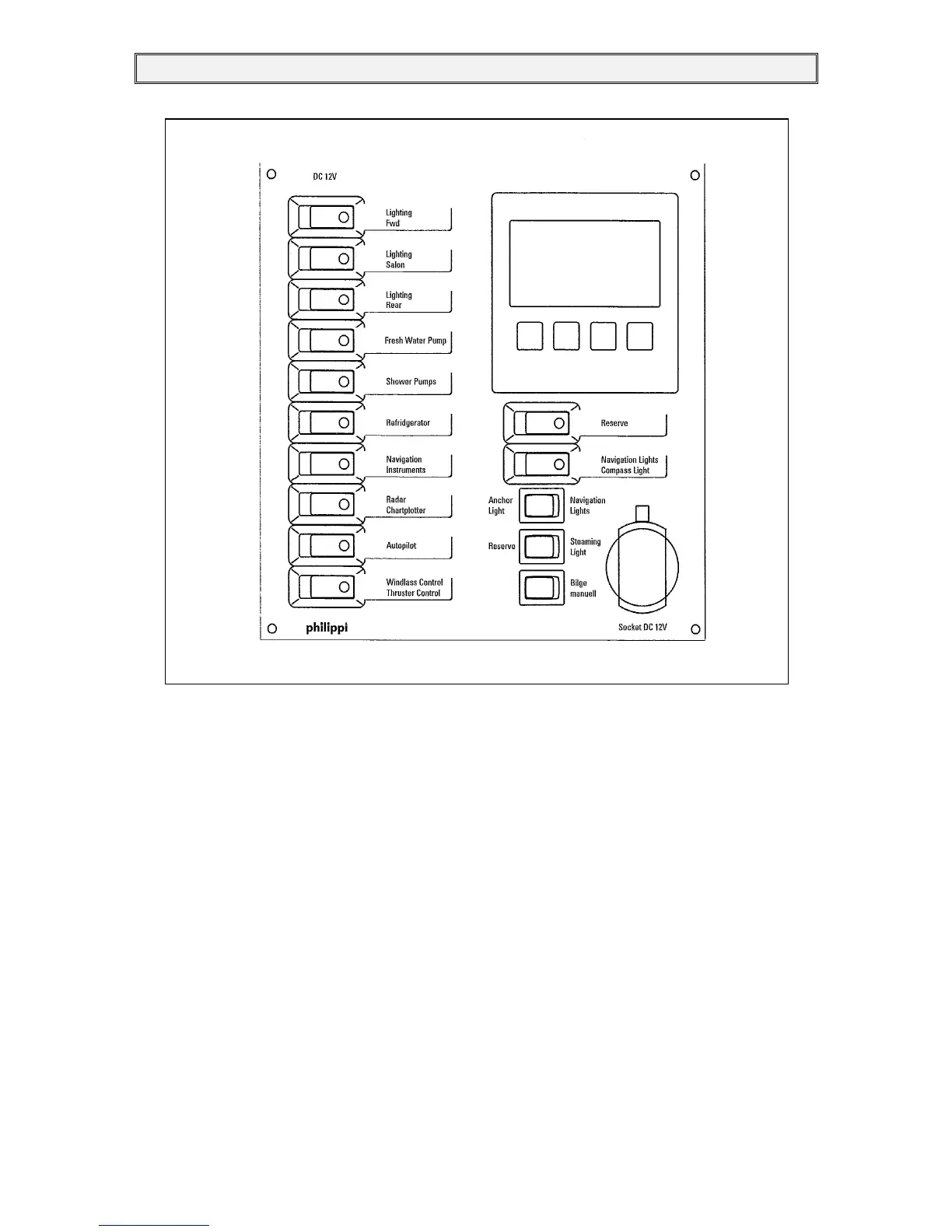

Figure 16: Control panel with connection numbers
4.5.3 Identifying the cables
The following numbers are to be found on the electric cables. Thus it is possible to check the
clamped connections and leads easily.
5 = Instrument lighting 6 = Interior lighting port
7 = Interior lighting starboard 9 = Pressure water pump
10 = Self steering gear 11 =Refrigerator
12= Bilge pump 13 = Waste water pump
14 = 12 V socket
Navigation lights are fuses with dip switches
4.5.4 Additional fuses
Apart from the fuses on the control panel and in the companion way, three more “in-line” fine wire
fuses have been installed, in each case a 2 A fine fuse in the control cables of the indicator for the
consumer batteries. An additional “delay action” 5 A fine wire fuse protects the cable for the engine
compartment ventilation.
