4.5.8 Tank monitoring
The fuel tank, water tank and holding tank indicators are all integrated in the navigation
control panel. Thus their level can be checked.
NOTE
The control indicator is a stepped
indicator with four steps ¼ ½ ¾ and full
4.5.9 Terminals/Supplies
In the event of a fault it is necessary for its
elimination to check whether the
distribution points are receiving any
current. In this page we want to show you
where the terminals and supplies are
positioned and how to find them on your
boat.
Supply- locker portside
Clothlocke4r forward to portside,
Distributor N°1
Supply - locker space starboard
Cloths locker forward to starboard
Distributor N° 2
Supply – backrest starboard
Nº 3 supply is on the side in front off the
chainplate support starboard
Supply - Clothes locker
N° 4 supply is in the clothes locker aft.

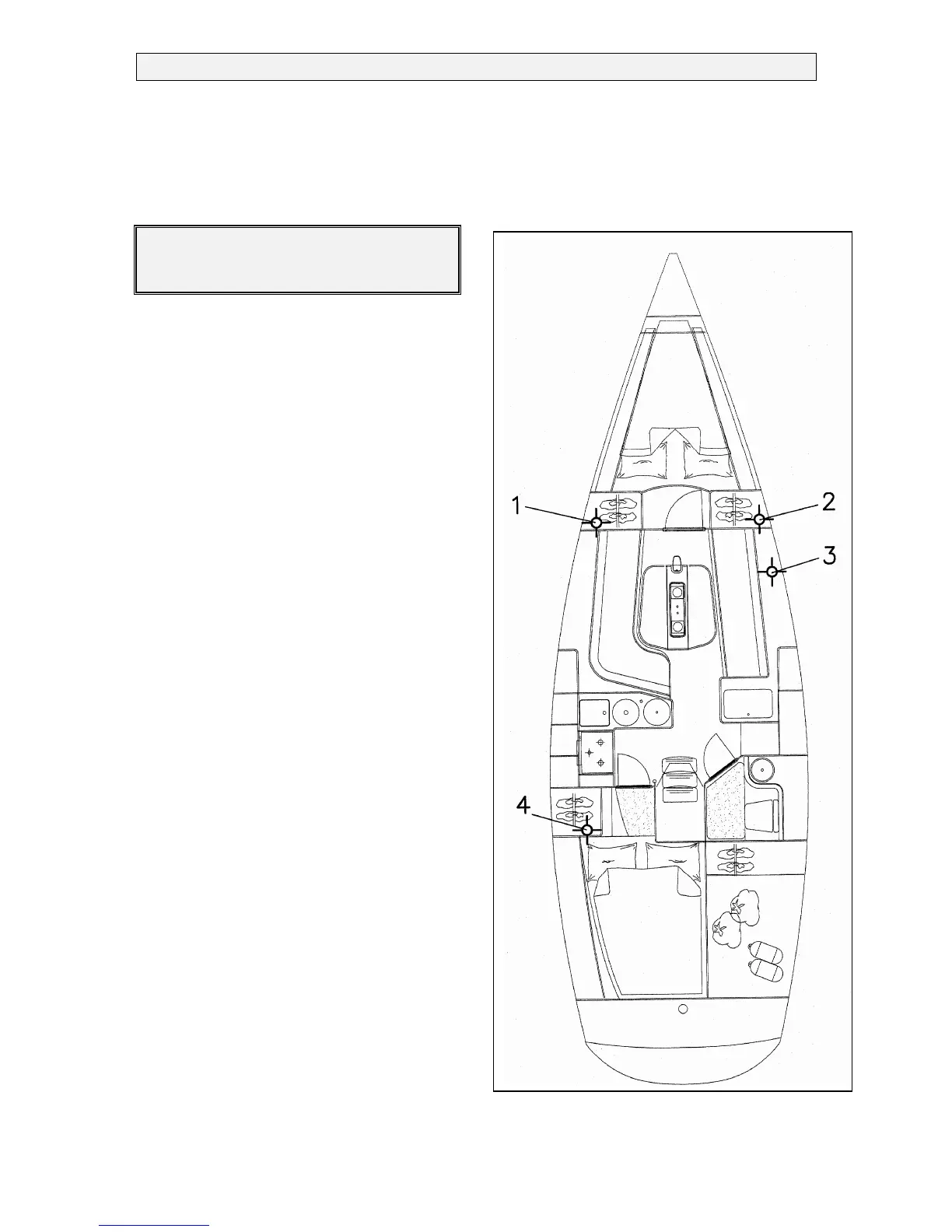

Figure 18: Terminals
