AL8-2 – Programming manual
4189320003D
Page 10/19

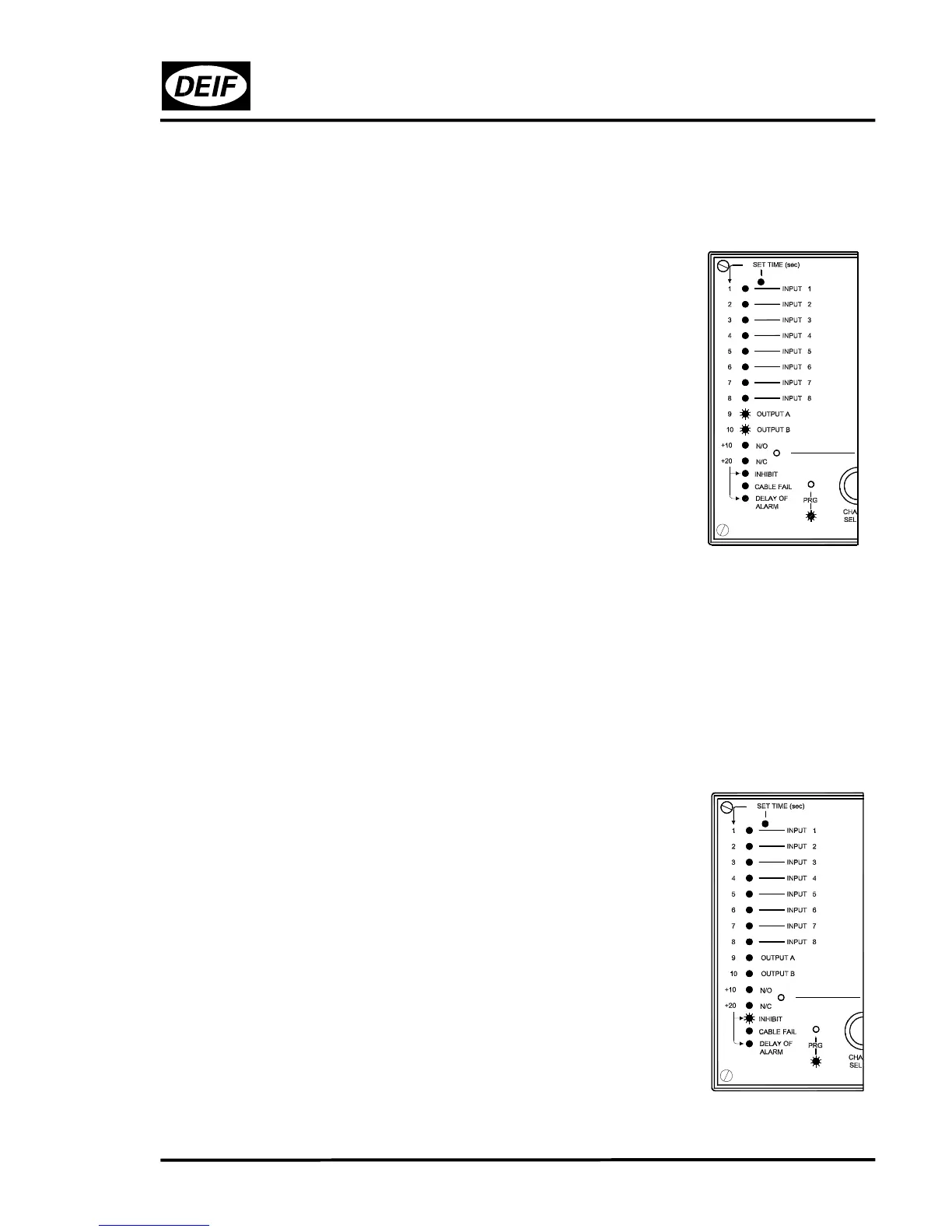

SELECTION OF OUTPUT RELAY (OUTPUT(S) A AND/OR OUTPUT B)
The LEDs for "OUTPUT A", "OUTPUT B" indicate the actual function as follows:
NOTE: Both LEDs are lit simultaneously.
EITHER: RED OUTPUT A FUNCTION:
RED OUTPUT B No output relays are
activated on alarm
OR: GREEN OUTPUT A FUNCTION:
RED OUTPUT B Output relay A is activated
on alarm
OR: RED OUTPUT A FUNCTION:
GREEN OUTPUT B Output relay B is activated
on alarm
OR: GREEN OUTPUT A FUNCTION:
GREEN OUTPUT B Both output relays A and B
are activated on alarm
Pressing the FUNCTION SELECT push-button will cause a change from the actual LED
indication/function to the next in the order, and so the FUNCTION SELECT push-button
is pressed, till the requested function is indicated by the LEDs. The requested function is
entered into the programme memory by pressing the ENTER push-button.
Pressing ENTER results in the next function in the order being automatically pointed to:
Inhibit function.
INHIBIT OF INCOMING ALARM (INHIBIT)
The "INHIBIT" LED indicates the actual function as follows:
EITHER: RED INHIBIT FUNCTION:
Inhibit function is NOT
active for this input
channel
OR: GREEN INHIBIT FUNCTION:
Inhibit function is active for
this input channel
Pressing FUNCTION SELECT causes a change from one
function to the other. When the required function is indicated,
enter this into the programme memory by pressing ENTER.
Pressing ENTER results in the next function in the order being
automatically pointed to: Alarm on cable failure.
