AL8-2 – Programming manual
4189320003D
Page 15/19
PROGRAMMING OF COMMON FUNCTIONS
If the alarm panel has been set to programming status (LED for "PRG": green), press
FUNCTION TEST to set the unit to programming status for common functions. The LED
for "PRG" remains lit (green) to indicate that the unit has been set to programming
status.
It is of course possible to set the unit to programming status for common functions direct
from normal operational mode: press PRG, then press FUNCTION TEST.
NOTE: Both buttons – PRG and FUNCTION TEST – are positioned behind the
front plate of the alarm panel and are activated by means of a thin
screwdriver, a needle or the like.
Do not use a pencil!
Note that when set to programming status for common functions, none of the LEDs for
input channels is lit, as programming is now carried out for common functions, not
individual channels.
The unit is now ready to be programmed for the first common function of the order:
SELECTION OF ACTIVATION/DEACTIVATION OF OUTPUT RELAY A ON AN
ALARM CONDITION (N/O, N/C)

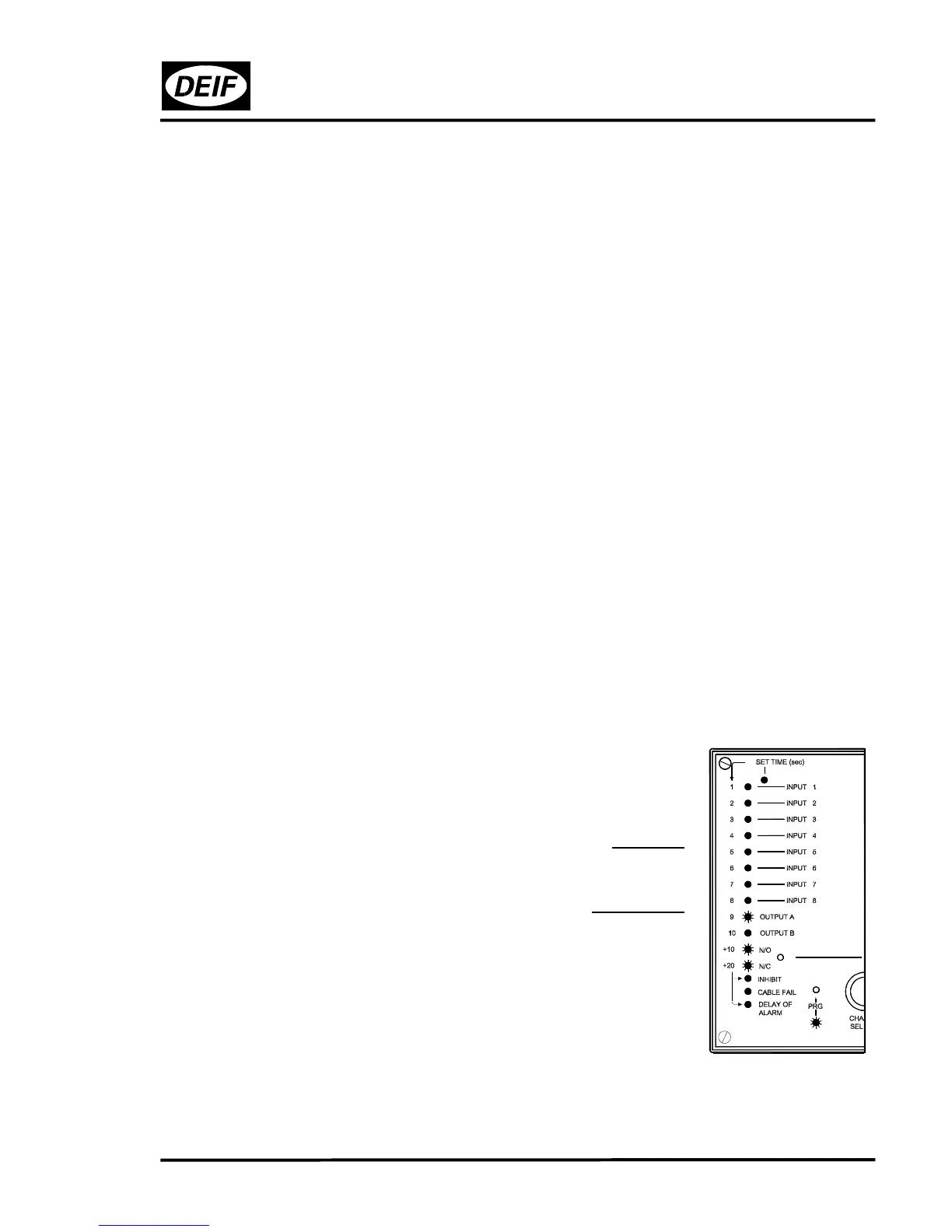

After pressing PRG and FUNCTION TEST, the LED "OUTPUT A" is lit (green).
The "N/O" and "N/C" LEDs indicate the actual function as follows:
NOTE: Both LEDs are lit simultaneously.
EITHER: GREEN N/O FUNCTION:
RED N/C Relay output A activated
on alarm
OR: RED N/O FUNCTION:
GREEN N/C Relay output A deactivated
on alarm
Pressing FUNCTION SELECT causes a change from one indica-
tion/function to the other.
When the requested function is indicated, enter this into the
programme memory by pressing ENTER.
