AL8-2 – Programming manual
4189320003D
Page 17/19

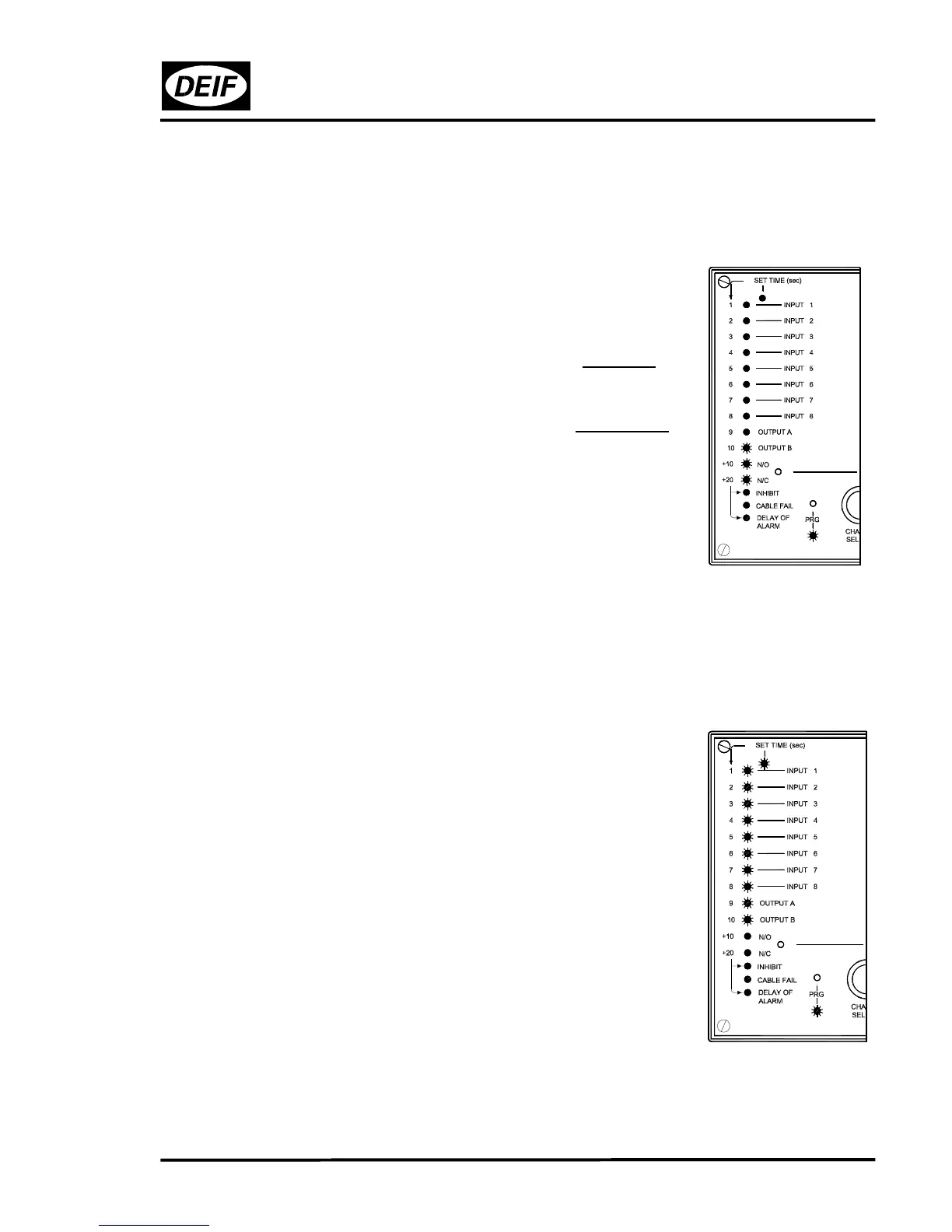

SELECTION OF ACTIVATION/DEACTIVATION OF OUTPUT RELAY B ON AN
ALARM CONDITION (N/O, N/C)
When output relay A has been programmed, the "OUTPUT B" LED is lit (green) and the
"N/O" and "N/C" LEDs indicate the actual function as follows:
NOTE: Both LEDs are lit simultaneously.
EITHER: GREEN N/O FUNCTION:
RED N/C Output relay B is activated
on
alarm
OR: RED N/O FUNCTION:
GREEN N/C Output relay B is deactivated
on alarm
Pressing FUNCTION SELECT causes a change from one
indication/function to the other.
When the requested function is indicated, this is entered into the
programme memory by pressing ENTER.
SELECTION OF TIME LIMITED ACTIVATION/DEACTIVATION OF OUTPUT RELAY
B
When the requested function as regards activation/deactivation of output relay B has
been entered, the "SET TIME" LED is lit (green) and the LEDs 1-10 are lit (red/green).
This time limit is programmed as described above for
activation/deactivation of output relay A.
Consequently:
Press FUNCTION SELECT, until the requested time limit for
output relay B is indicated and enter this into the programme
memory by pressing ENTER.
The "INHIBIT" LED is then lit (green) and the next function may
be programmed.
