Deif Multi-line 2 Description Of Options

GPC, PPU Option O1, Water turbine control
DEIF A/S Page 12 of 19
Jet deflector
In principle, the jet deflector is a 3-way valve intended to bypass the water flow in case there is a
generator shutdown.
Principle
Normally, the jet deflector is ‘closed’ (water flow led to the turbine) and held closed by a holding
magnet. In case of shutdown, the jet deflector magnet is deactivated, and the jet deflector
immediately changes to ‘open’ (water bypass) position.

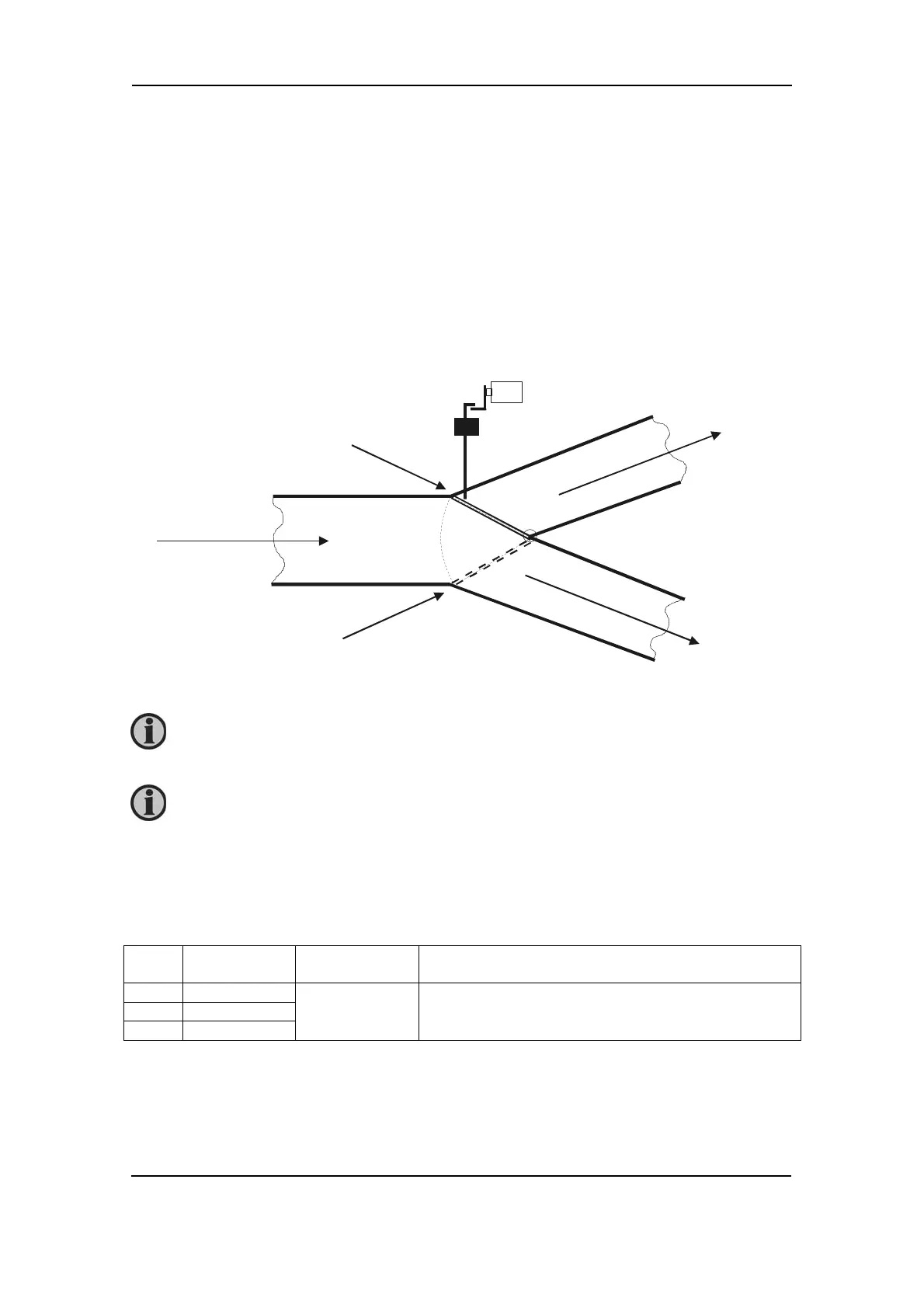

The principle looks like this (jet deflector shown in ‘closed’ position):
Jet deflector
Water inlet
To turbine
bypass
Holding
magnet
Moving
weight
Closed position
Open position
Relay selection
The relay used for the jet deflector is the relay 1. (Terminal 5, 6, 7 - see extract from I/O list
below).
Term.
Function Technical
data
Description
5 NO Relay 1
Configurable/jet deflector operation
6 Com. 250V AC / 8A
7 NC
If the jet deflector is moved to the ‘open’ position, it must be set back to ‘closed’
position manually.
Use the jet deflector feedback to indicate when the deflector is closed.
