WSI, WSDI, WSS or WSS-L User’s Manual
DEIF A/S
Page 17 of 19

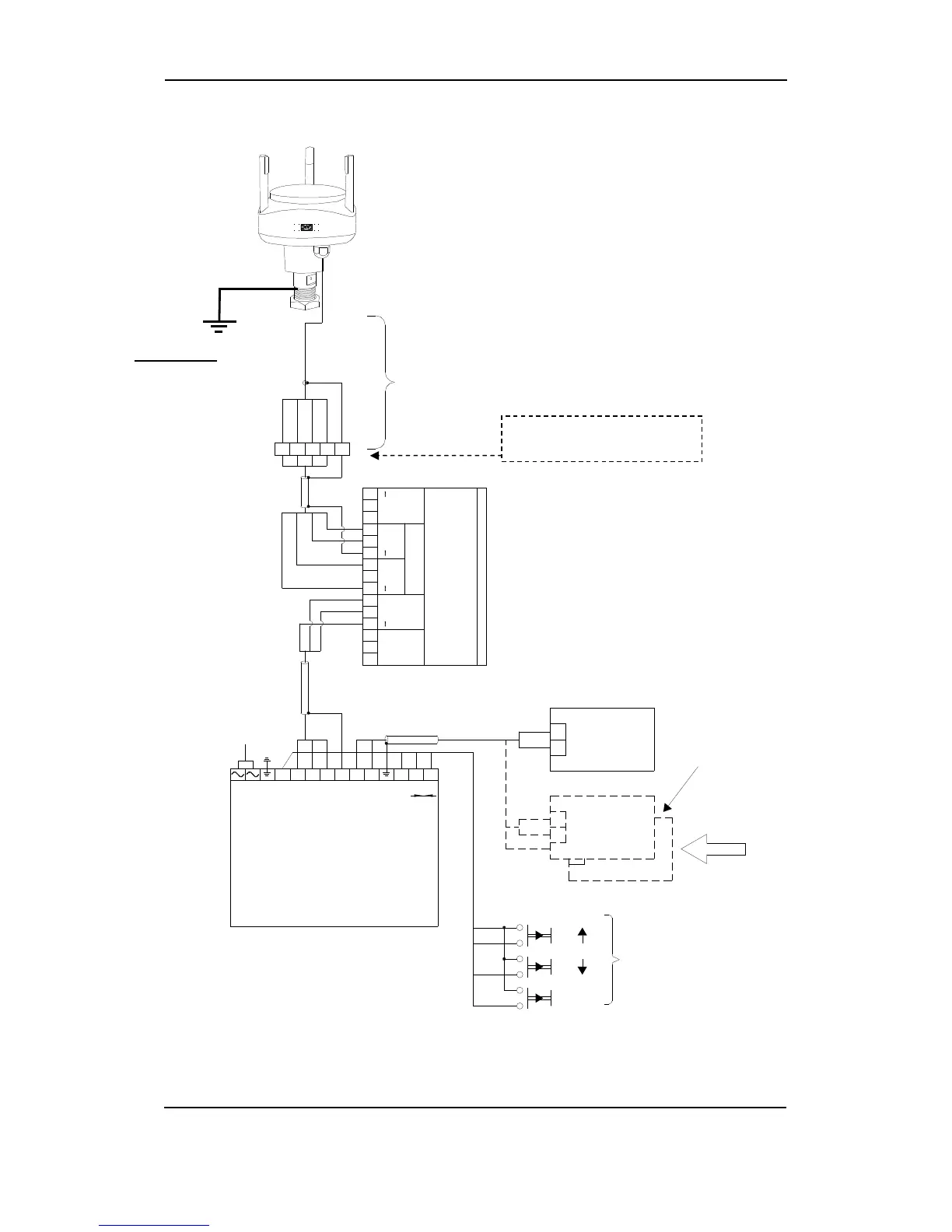

Connection diagram
9 7 5 4 6
Connection
box
2 meters of cable - part of WSS
4 x 0.75mm²
cable lenght
max. 300m
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
+
Power
18-32V
+ B ASD
Not used
InputSupply
DO NOT
connect
Display
WSDI
WSS
WSS interface box
3
4
2
D = wind Direction
S = wind Speed
The WSS box has to be mounted indoor,
recommended is close to the indicator.
1 2 3 4 5 A B 9 10 11
220V AC
EARTH
+5V
0V
wind Speed
DIRECTION
SCREEN
SIGNAL
RETURN
SCREEN
MODE
Display
WSDI
9
10
11
1
LISTENER
ACCORDING TO
NMEA 0183
MODE
EXTERNAL
CONTROL
STANDARD
LISTENER
LISTENERS
MULTIPLE
E.g. VDR
Alternatively use the
IP67 Con
nect
or
kit option
IMPORTANT!
Connect to the
ship’
s earth cable
(or steel hull).
