WSI, WSDI, WSS or WSS-L User’s Manual
DEIF A/S
Page 8 of 19

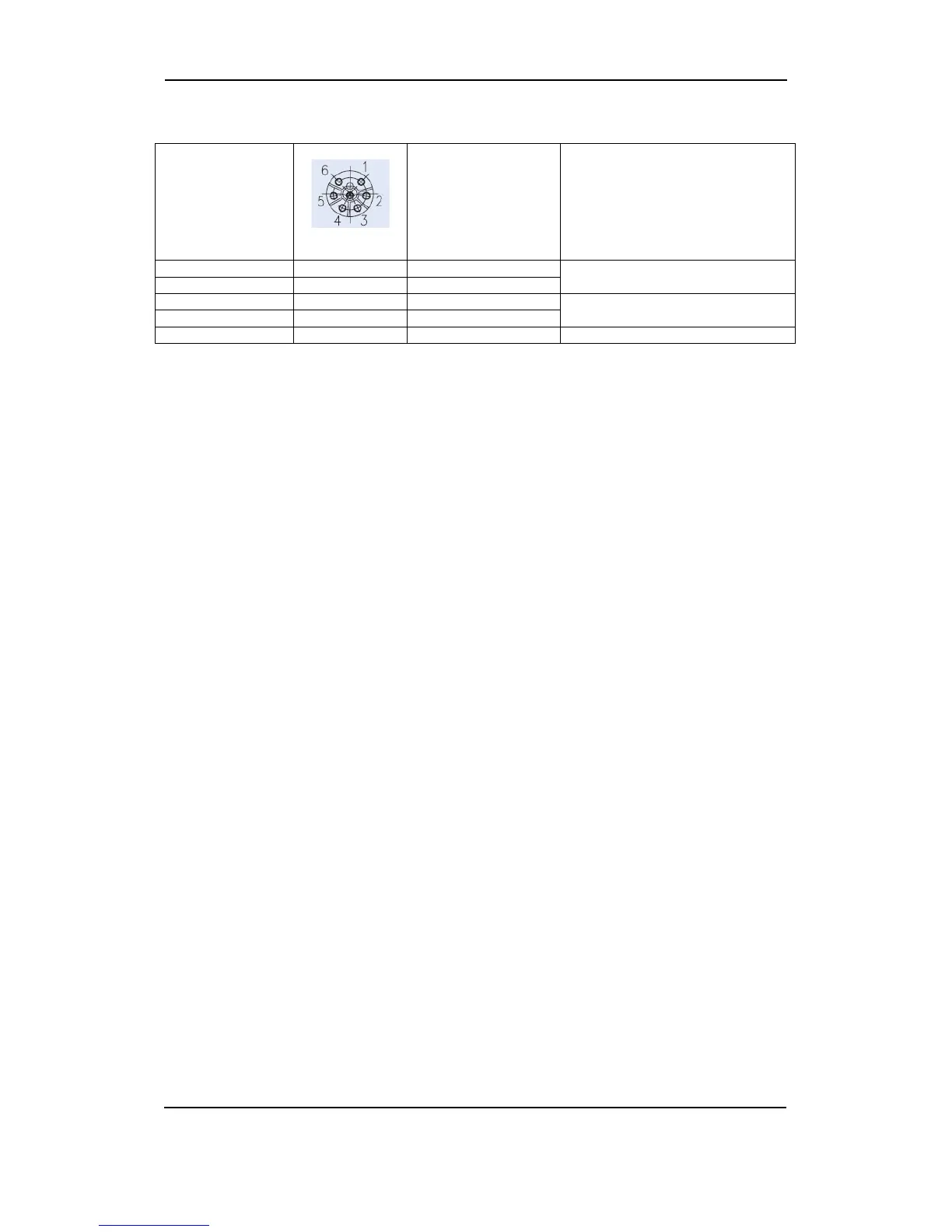

IP67 Connector kit assembly (OPTIONAL)
WSS/WSS-L
fixed cable
Male
connector
Connector
pin no.
WSS extension
cable xx meters
Female
connector
Signal comments
Black (-) 1 Black (-) 30V DC Supply for WSS/WSS-L
Red (+) 2 Red (+)
Orange 3 Orange RS485 Comm. from WSS/WSS-L
Brown 4 Brown
Screen 5 Screen Cable screen
Note: Male and female connectors must be soldered to the respective cables!
