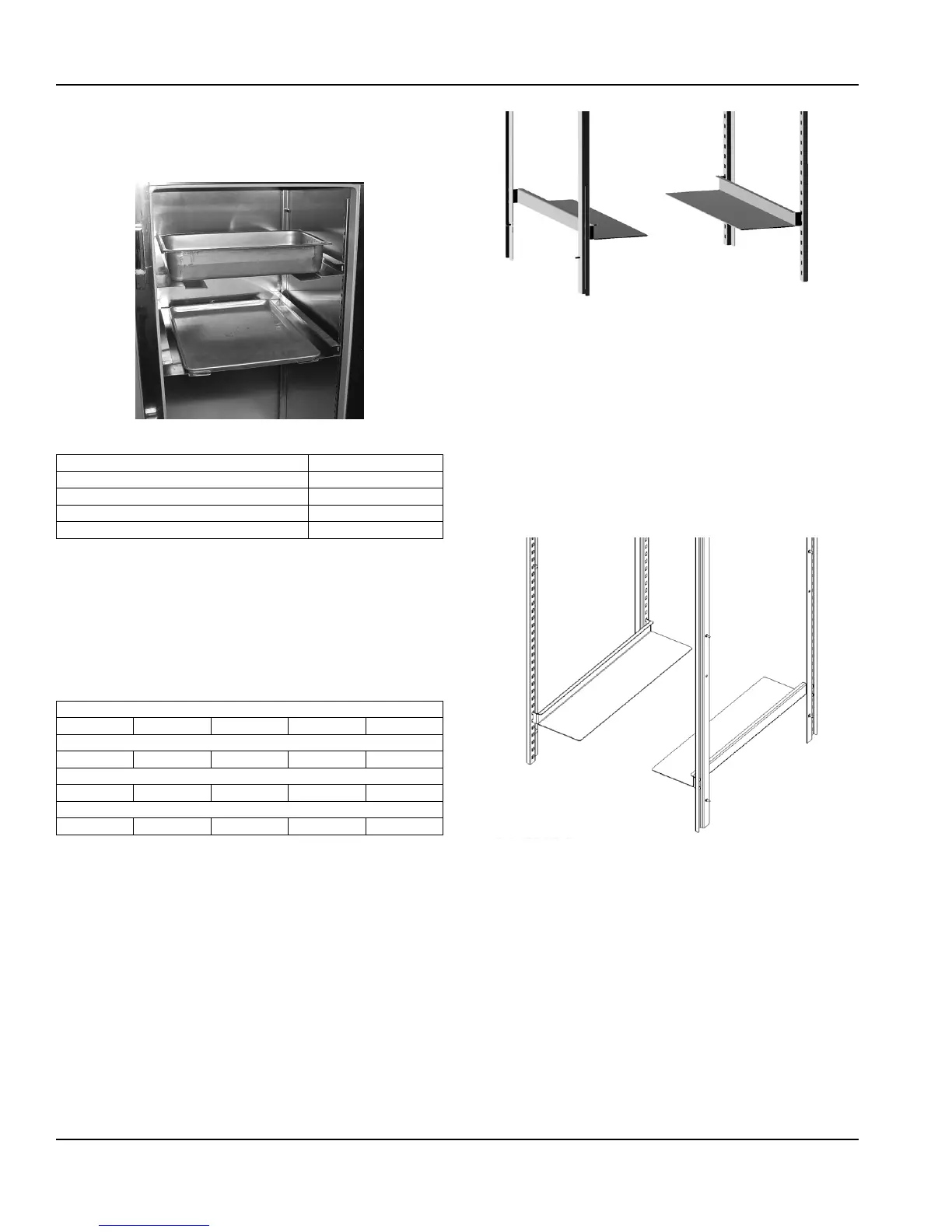

T-2 Tray Slide Installation
Universal Bottom Support for 12” x 20” and 18” x 26”
pans
Installed T-2 tray slide with both size pans
System Name T-2
Slide Style Tray
Support Style Bottom
Compatible with 12” x 20” Pans Yes
Compatible with 18” x 26” Pans Yes
The T-2 (Universal) tray slide system is designed to support
both 12” x 20” and 18” x 26” pans by the bottom. The tray
slide is an L shaped piece of formed stainless steel.
Each set of tray slides is mounted at the same height across
a door section. If the tray slides are not at the same height,
the pan cannot be held securely. For each pan, one set of
two (2) tray slides is used.
Centers
2.0” 3.0” 4.0” 5.0” 6.0”
Maximum Tray Slides for a Full Section
25 17 12 10 8
Maximum Tray Slides for a Half Section (Top)
10 6 5 4 4
Maximum Tray Slides for a Half Section (Bottom)
10 6 6 5 4
T-2 Tray Slide System
T-2 Installation Instructions
1. For each pan, two (2) tray slides will be used. Each tray
slide must have another tray slide at the same height,
on the opposite side of the door section. Mount the
tray slides onto the pilasters by sliding the tabs down
into the pilaster cutouts. Make sure that all tabs are
engaged securely to each pilaster.
NOTE: A dead-blow hammer is recommended to seat the
tab into the cutouts.
Pilaster
Slider
2. Verify that all tray slides are lined up evenly.
NOTE: An easy check to verify correct installation is to slide
a pan onto each slide. If the pan is held securely, and is level
inside the door section, the installation has been successful.
