External power adapter
This section describes how to install the external power adapter (EPA) inside the power adapter holder. It also describes how to
attach the power adapter holder assembly to the switch. This EPA installation instruction procedure applies to the N3208PX-ON
switch only.
NOTE: Do not use this installation procedure for the full-width N3200-ON Series switches.
You can use one or two EPAs with your adapter holder in a two-post or four-post rack. You can side-mount a single EPA to the
switch. You can center-mount or front-mount the dual-EPA assembly.
You must order the mounting supplies for the EPA-related installation separately.
NOTE: If you are using two external power adapters (EPAs) in a two-post front- or center-mount rack, you must have two-
rack units space available in your rack. Install the switch in the bottom portion of the two-rack units and the EPA in the top
portion above the switch.
Topics:
• Power adapter holder assembly
• Wall or ceiling installation
• DIN rail installation
• Single-EPA and switch four-post installation
• Single-EPA and switch two-post center-mount installation
• Single-EPA and switch two-post front-mount installation
• Dual-EPAs two-post front-mount installation
• Dual-EPAs two-post center-mount installation

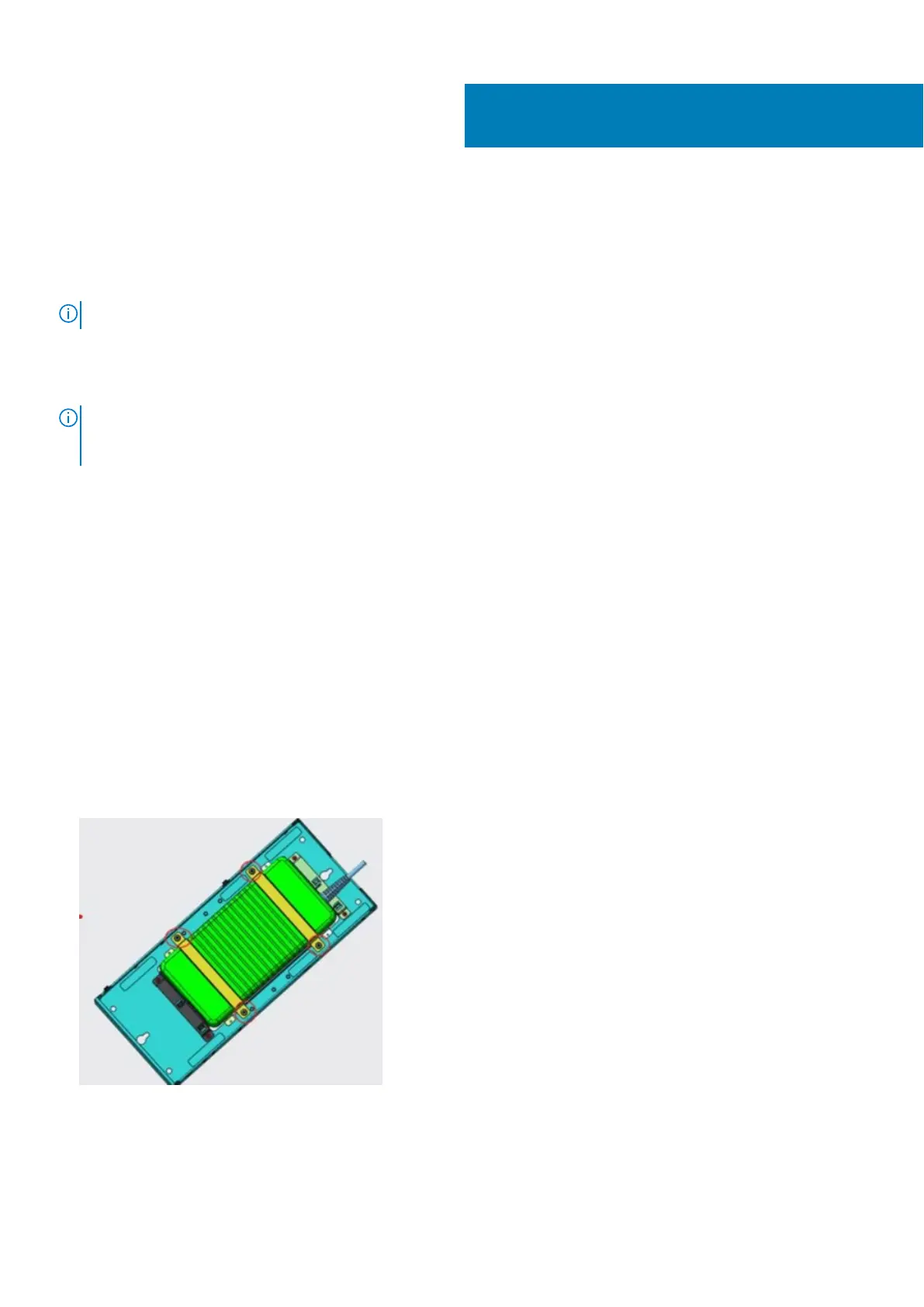

Power adapter holder assembly
To install your EPA into the power adapter holder:
1. Set the EPA inside the power adapter holder.
2. Secure the EPA in place using the two metal straps and four screws that ship with the holder.
3. Attach the wire cable clips to the front and back of the power adapter holder.
5
External power adapter 43
