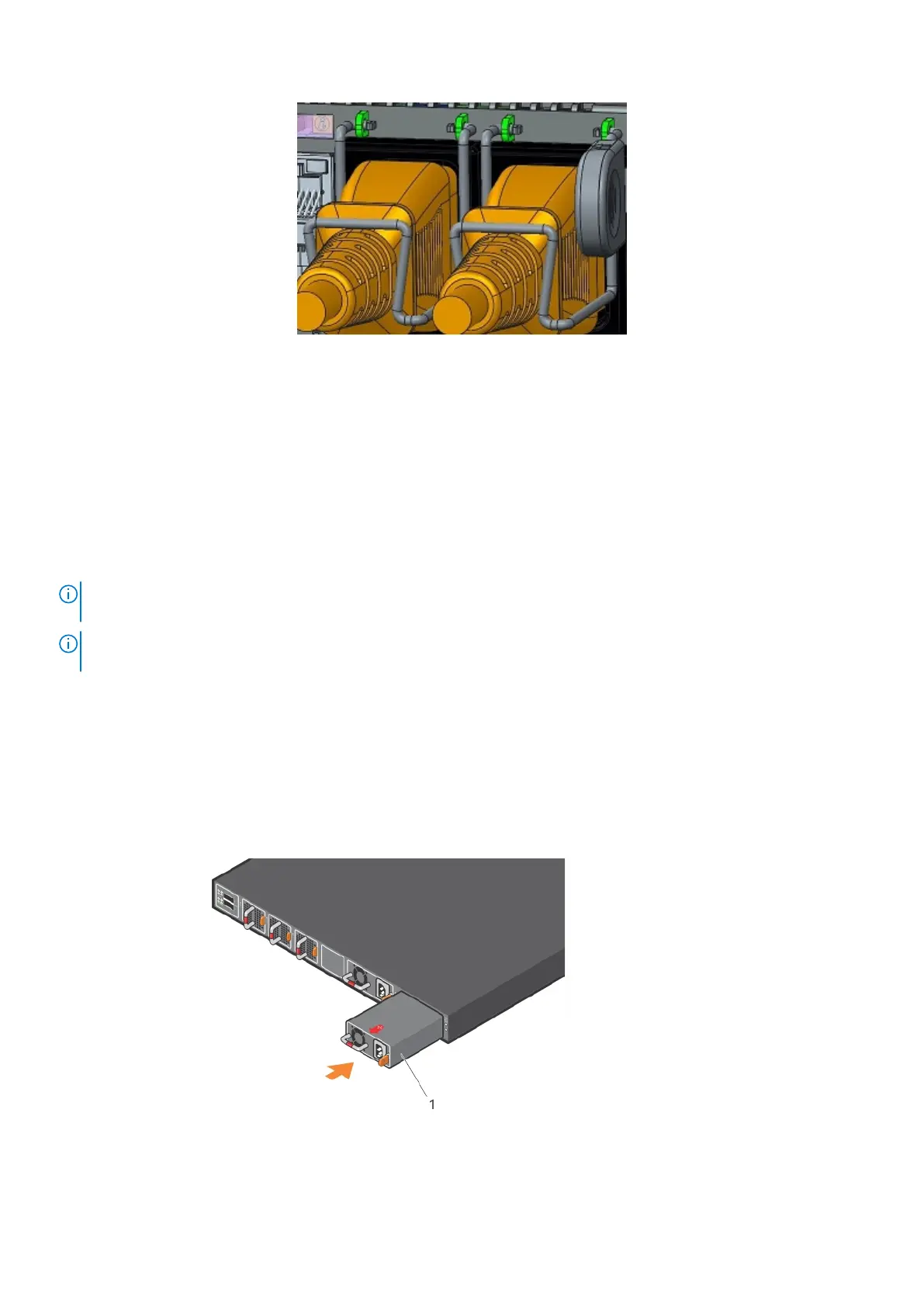

Figure 4. AC power cable clips
PSU LEDs
● Solid green—Input is OK.
● Flashing green blink at 1 Hz—PSU is in a faulty state.
● Off—PSU is off.
AC or DC power supply installation
NOTE:
The PSU slides into the slot smoothly. Do not force a PSU into a slot as this action may damage the PSU or the
switch.
NOTE: Ensure that you correctly install the PSU. When you install the PSU correctly, the power connector is on the right
side of the PSU.
1. Remove the PSU slot cover from the N3200-ON Series switch using a small #1 Phillips screwdriver. The PSU slot cover has
two screws on the top and two screws on the bottom of the platform.
2. Remove the PSU from the electro-static bag.
3. Insert the PSU into the switch PSU slot—insert the exposed PSU connector first.
The PSU slot is keyed so that you can only fully insert the PSU in one orientation. When you install the PSU correctly, it
snaps into place and is flushed with the back of the switch.
4. Plug in the appropriate AC three-prongs cable from the switch PSU to the external power source.
N3224T-ON, N3224F-ON, N3224P-ON, N3248TE-ON, and N3248X-ON PSU installation
1. PSU. Optional PSU also shown.
N3224PX-ON, N3248P-ON, and N3248PXE-ON PSU installation
Power supply
57
