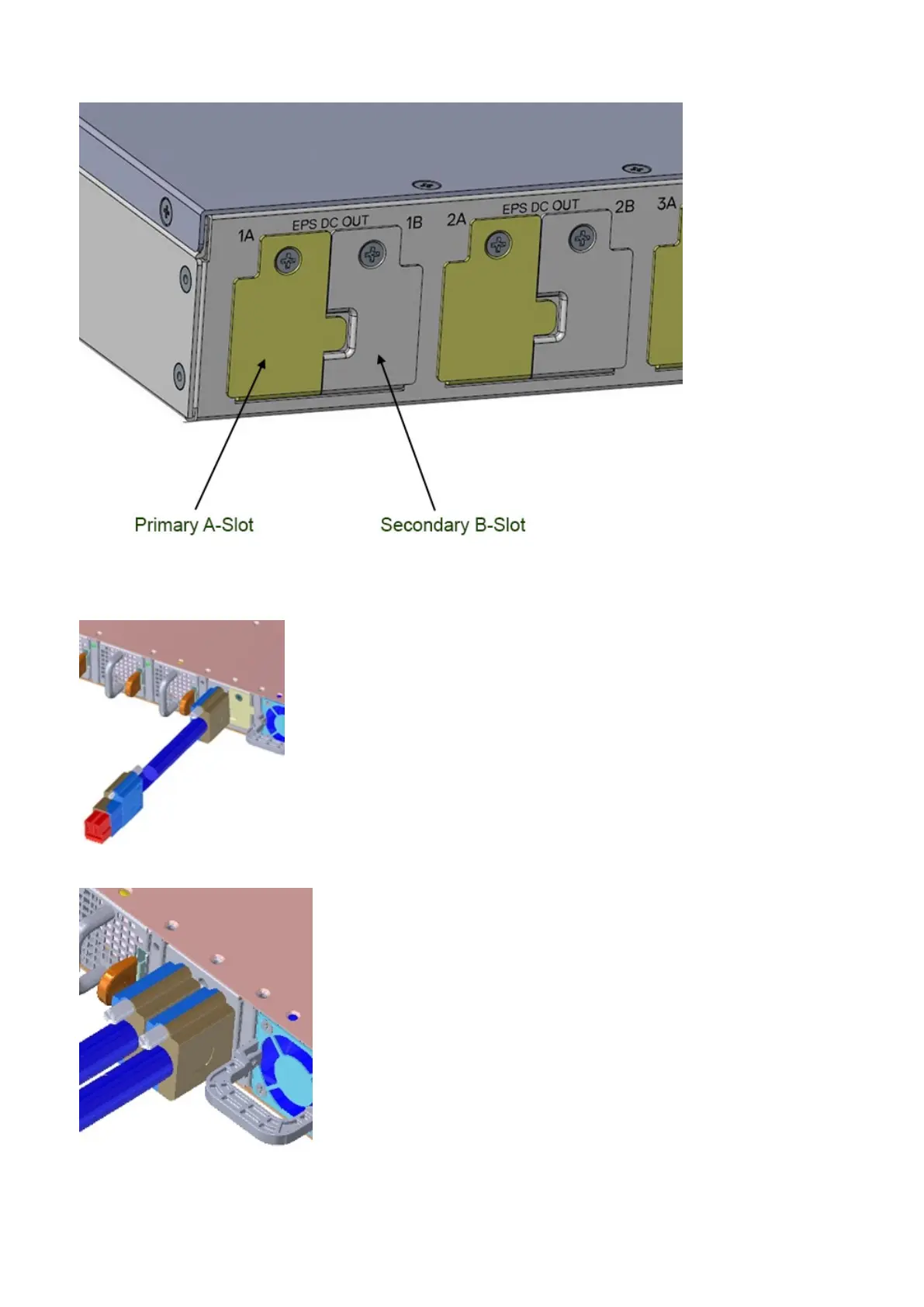

3. Connect the EPS power cable to the EPS-DC-In on the switch.
Torque the screw to 10 in-lbs.
One EPS power cable connected
Two EPS power cables connected
4. Connect the other end of the DC cable to either a MPS-1S shelf or MPS-3S shelf.
Power supply
63
