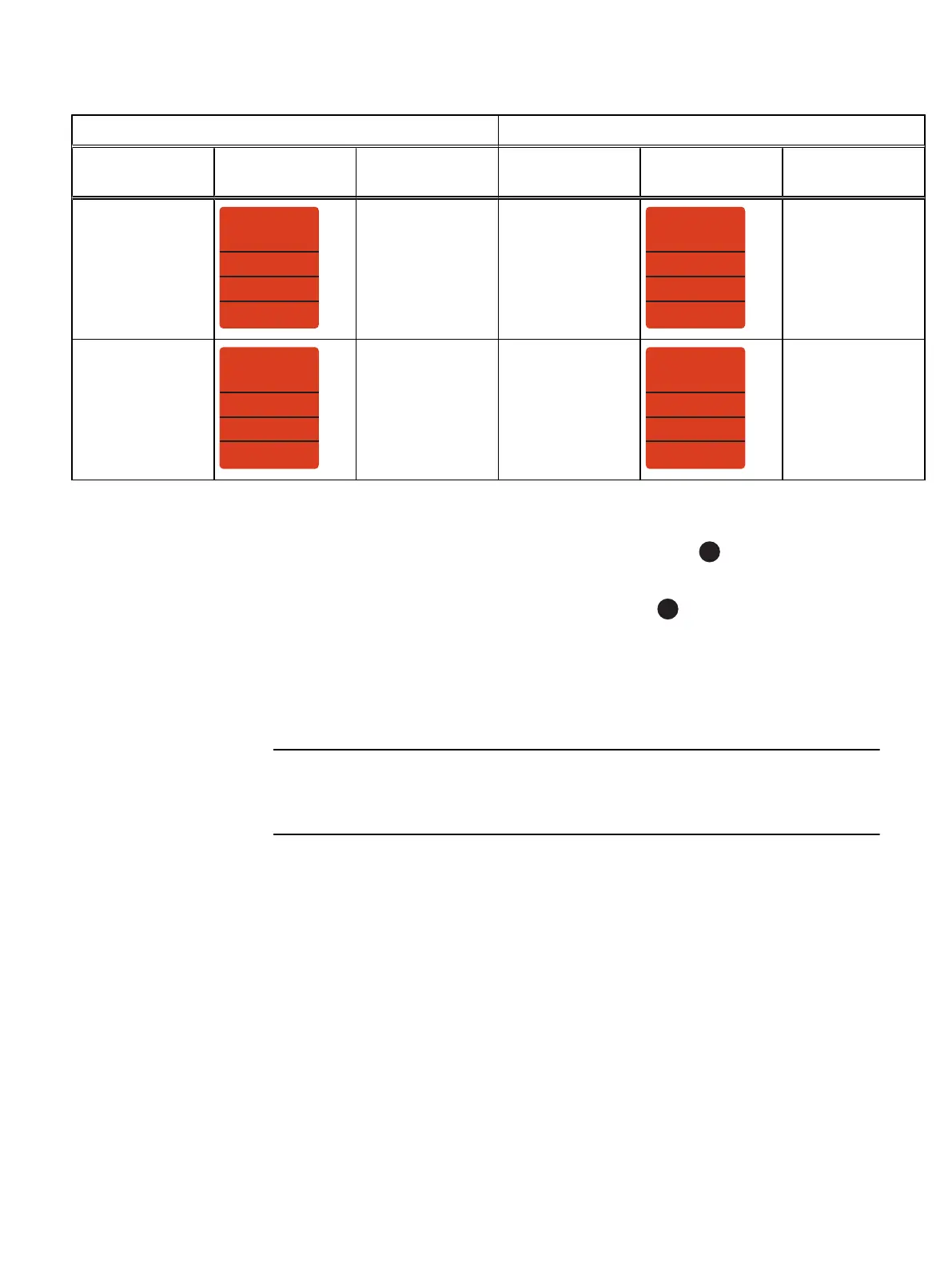

Expansion port cable labeling details Primary port cable labeling details
Label part
number
Label Port Label part
number
Label Port
046-001-561
SP A SAS 0
SP A SAS 0
SP A SAS 0
SP A SAS 0
046-001-561_xx
SP A SAS 0 046-021-010
046-021-010_xx
LCC A PORT A
LCC A PORT A
LCC A PORT A
LCC A PORT A
LCC A Port A
046-003-489
SP B SAS 0
SP B SAS 0
SP B SAS 0
SP B SAS 0
046-003-489_xx
SP B SAS 0 046-021-011
046-021-011_xx
LCC B PORT A
LCC B PORT A
LCC B PORT A
LCC B PORT A
LCC B Port A
2. Connect DPE port 0 to the new DAE to extend BE0.
a. Connect port 0 on SP A in the bottom slot in the DPE to port A on the link
control card A (LCC A) at the bottom of the DAE. [
]
b. Connect port 0 on SP B in the top slot in the DPE to port A on the link
control card (LCC B) at the top of the DAE. [
]
Cabling the DPE SAS module ports to create back-end buses 2 through 5
Where supported, the following example shows how to connect remaining four SAS
back-end ports and shows the cable labels for these SAS cables, as well as the back-
end bus and enclosure numbers for these DPE to DAE connections.
The optional back-end 12-Gb/s SAS module is not supported on all Unity storage
systems.
Cable the DAE to the 12-Gb/s SAS modules in the DPE 0, port 0 through port 3, to
create back-end bus 2 through 5, BE2-BE5.
Use the following illustration to complete this cabling task:
Cable and power up your DAE components
58 Unity 300/300F, Unity 350F, Unity 380/380F, Unity 400/400F, Unity 450F, Unity 500/500F, Unity 600/600F
