The 10GbE BaseT 4-port card serves Ethernet traffic and iSCSI block protocol. The
following speeds are supported: 1GbE and 10 GbE.
Embedded module and 4-port card LED status

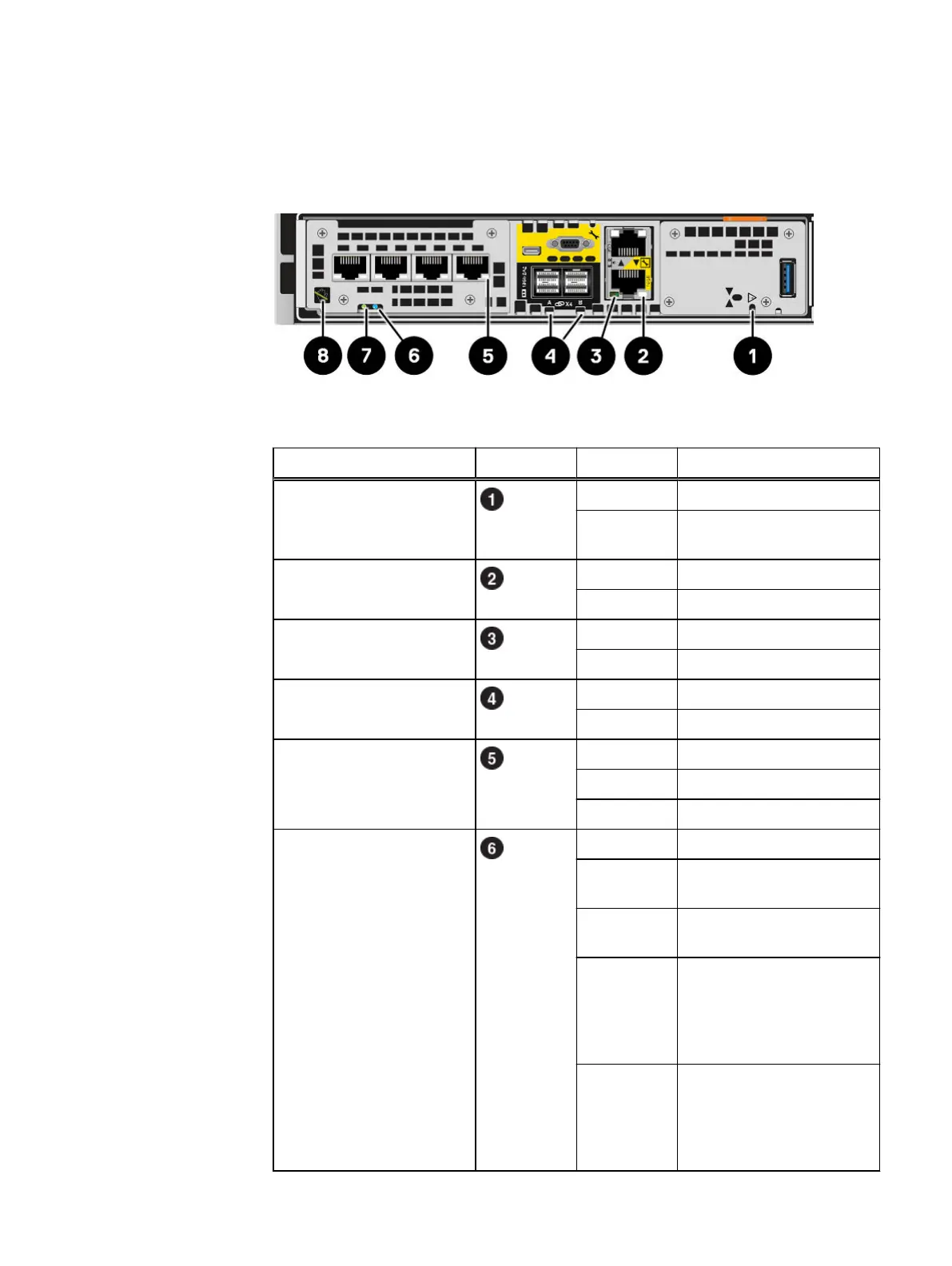

Figure 7 Embedded module LEDs
Table 5 Embedded module LEDs
LED Location State Description
Embedded module power Amber Embedded module has faulted
Off No fault has occurred, normal
operation.
Ethernet port link Green Link established.
Off No link established.
Ethernet port activity Amber Port activity.
Off No port activity.
SAS port/activity Link Blue SAS port link is up.
Off No link established.
Port link Green Link up with high speed.
Amber Link up with degraded speed.
Off Link down.
Storage processor assembly
fault
Amber Fault has occurred.
Blue Storage processor assembly
in Degraded Mode.
Amber or blue
blinking
System is booting.
Blue and
amber
alternating
(green for 3
seconds)
System not initialized. A
management IP address has
not been assigned.
Blue and
amber
alternating at
one second
intervals
Storage processor assembly
in Service Mode.
DPE component descriptions
DPE embedded modules and 4-port cards 13
