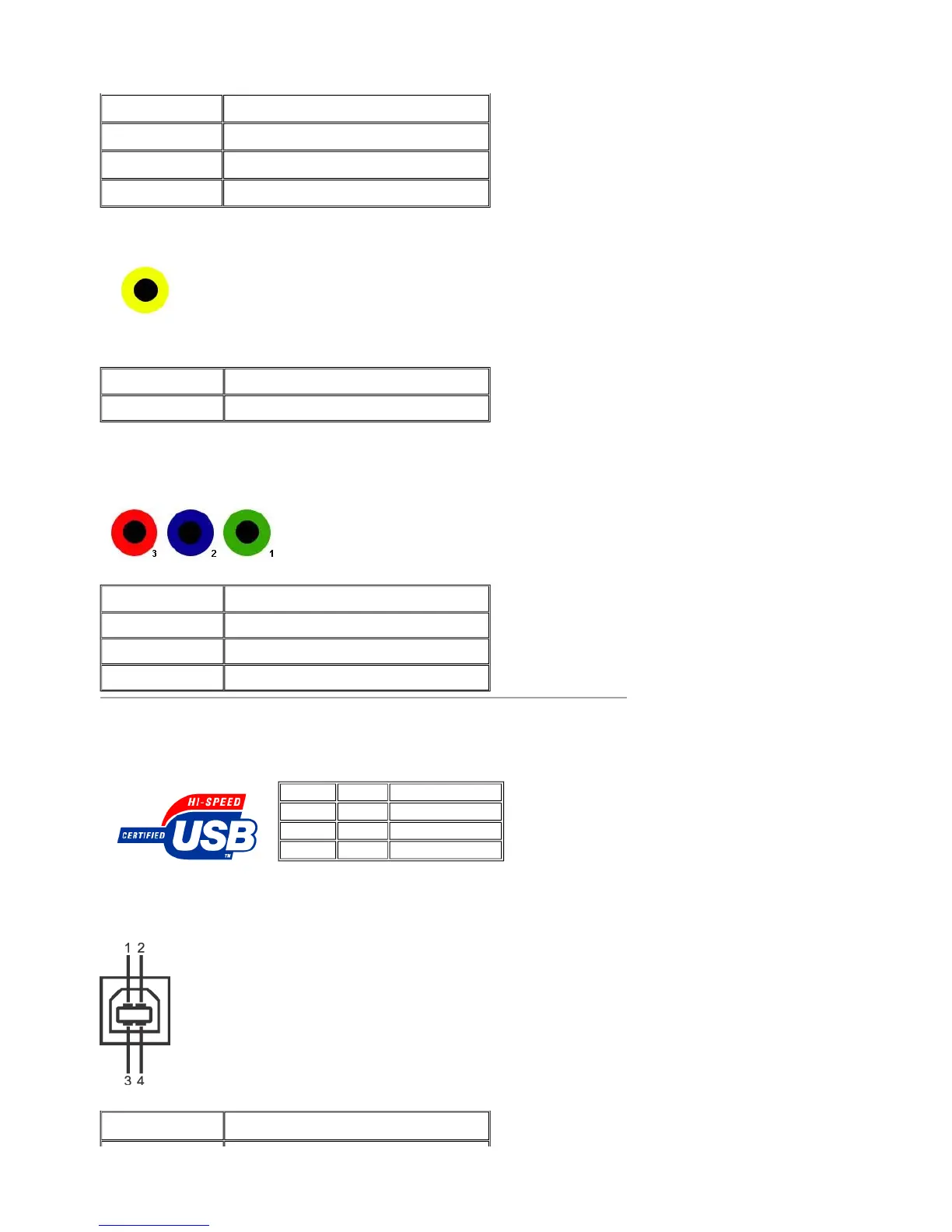

Dell 2407WFP - Universal Serial Bus (USB) Interface

Composite Video Connector
Component Video Connector
Universal Serial Bus (USB) Interface
USB Upstream Connector
2 GND
3 LUMA
4 CHROMA
5 GND
Pin Number 1-pin Side of the Connected Signal Cable (cable not included)
1 LUMA COMPOSITE CHROMA
Pin Number 3-pin Side of the Connected Signal Cable (Cable not included)
1
Y (Luminance signal)
2
Pb (Color differential signal)
3
Pr (Color differential signal)
This monitor supports High-Speed Certified USB 2.0 interface.
Data Rate Power Consumption
High speed 480 Mbps 2.5W (Max., each port)
Full speed 12 Mbps 2.5W (Max., each port)
Low speed 1.5 Mbps 2.5W (Max., each port)
Pin Number 4-pin Side of the connector
