USB Downstream Connector
USB Ports
z 1 upstream - rear
z 4 downstream - 2 on rear; 2 on left side
Card Reader Specifications
Overview
z The Flash Memory Card Reader is a USB storage device that allows users to read and write information from and
into the memory card.
z The Flash Memory Card Reader is automatically recognized by Windows 2000 and XP.
z Once installed and recognized, each separate memory card (slot) appears as a separate drive/drive letter.
z All standard file operations (copy, delete, drag-and-drop, etc.) can be performed with this drive.
Features
The Flash Memory Card Reader has the following features:
z Supports Windows 2000 and XP operating systems
z No Windows 9X support from Dell
z Mass Storage Class device (No drivers are required under Windows 2000 and XP)
z USB-IF certification
z Supports various memory card media
1 DMU
2
VCC
3 DPU
4 GND

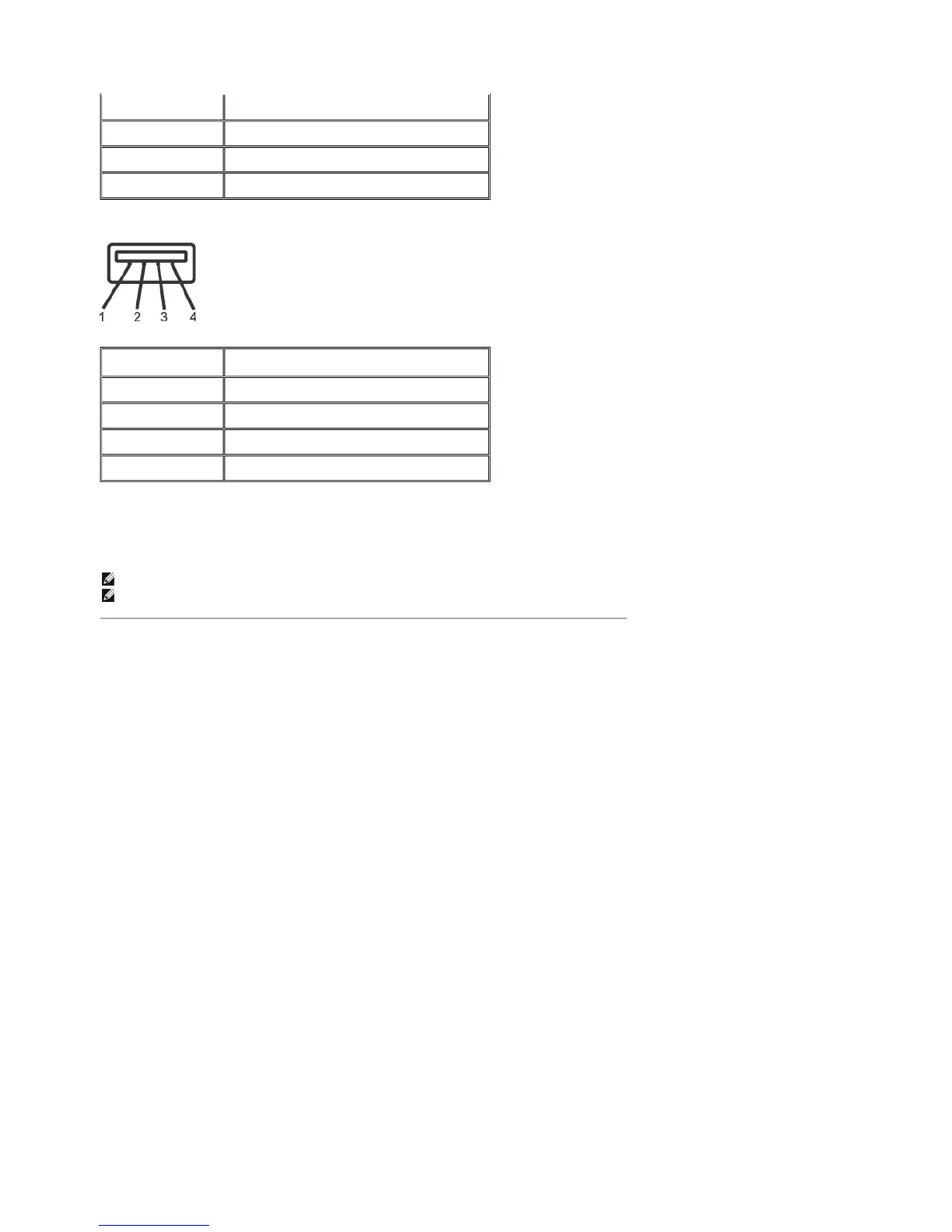

Pin Number
4-Pin Side of the Signal Cable
1 VCC
2 DMD
3 DPD
4 GND
NOTE: USB 2.0 capability requires 2.0 capable computer
NOTE: The monitor's USB interface works only when the monitor is on or in power save mode, If you switch the monitor off and then on,
attached peripherals may take a few seconds to resume normal functionality.
