Dell 2407WFP - Power Management and Connectivity; Power Consumption & Modes; Connector Pin Assignments

* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.

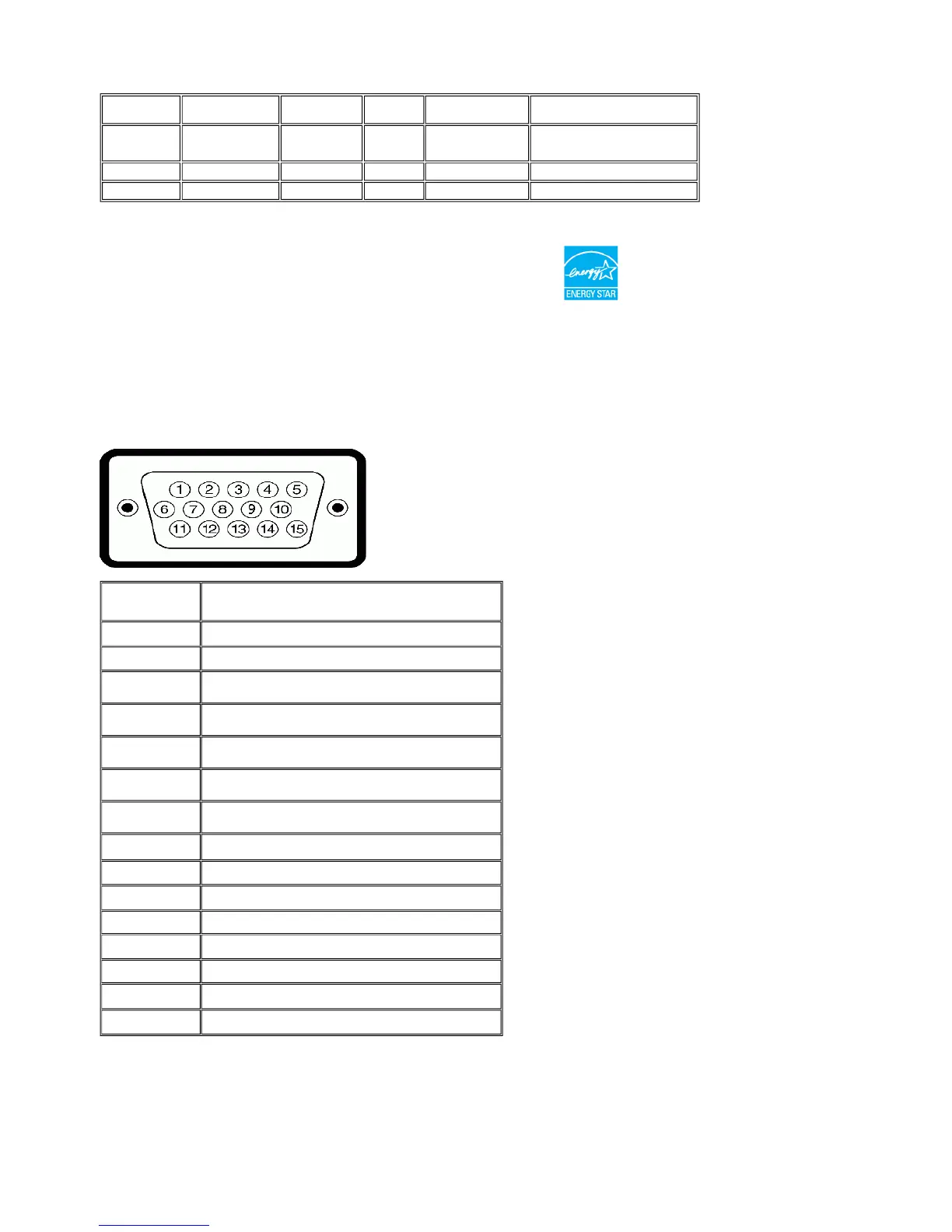

Pin Assignments
VGA Connector
DVI Connector
VESA Modes Horizontal Sync Vertical Sync Video Power Indicator Power Consumption
Normal
operation
Active Active Active Green 110W (maximum)*
57W (normal)**
Active-off mode Inactive Inactive Blanked Amber Less than 2 W
Switch off - - - Off Less than 1 W (at 230 V)
* With Audio + USB
** Without Audio + USB
This monitor is ENERGY STAR-compliant as well as TCO '99/ TCO '03 power management compatible.
Pin Number 15-pin Side of the Connected Signal Cable
1 Video-Red
2 Video-Green
3 Video-Blue
4 GND
5 Self-test
6 GND-R
7 GND-G
8 GND-B
9
Computer 5V/3.3V
10 GND-sync
11 GND
12 DDC data
13 H-sync
14 V-sync
15 DDC clock
