Connecting Your Projector
CAUTION: Before you begin any of the procedures in this section, follow the
"Safety Instructions" on page 7.

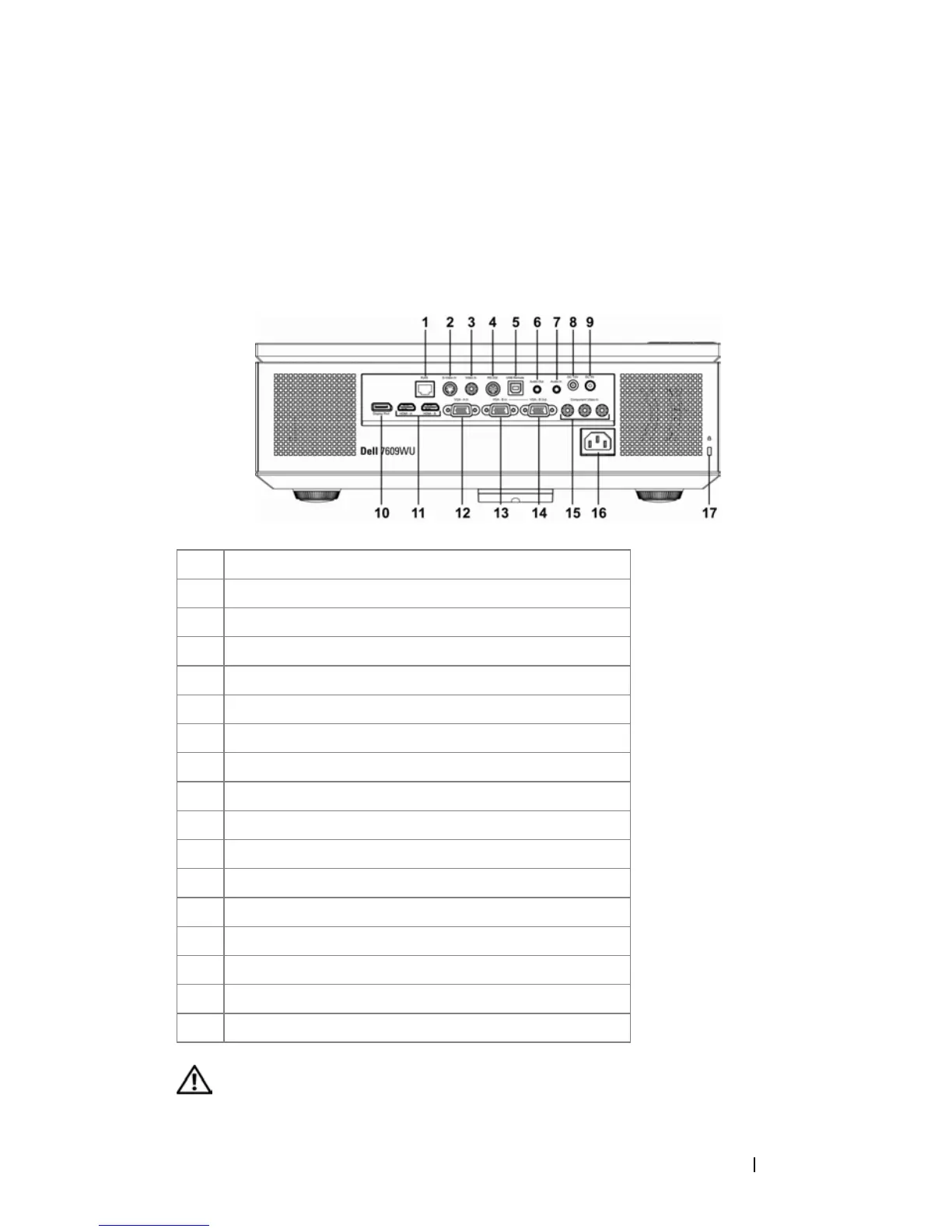

1 RJ45 network connector
2 S-video input connector
3 Composite video input connector
4 RS232 connector
5 USB remote connector
6 Audio output connector
7 Audio input connector
8 12 Volt DC relay output
9 5 Volt DC relay output
10 DisplayPort connector
11 HDMI input connectors
12 VGA-A input (D-sub) connector
13 VGA-B input (D-sub) connector
14 VGA-B output (monitor loop-through) connector
15 Component video input connectors
16 Power cable connector
