Dell Alienware Aurora R15 User Manual

About this task
Steps
1. Align the tabs on the right-side cover with the slots on the chassis.
2. Push the right-side cover towards the chassis until it snaps into place.
Next steps
1. Install the top cover.
2. Install the left-side cover.
3. Follow the procedure in After working inside your computer.
Front bezel
Removing the front bezel
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
3. Remove the top cover.
4. Remove the right-side cover.
About this task

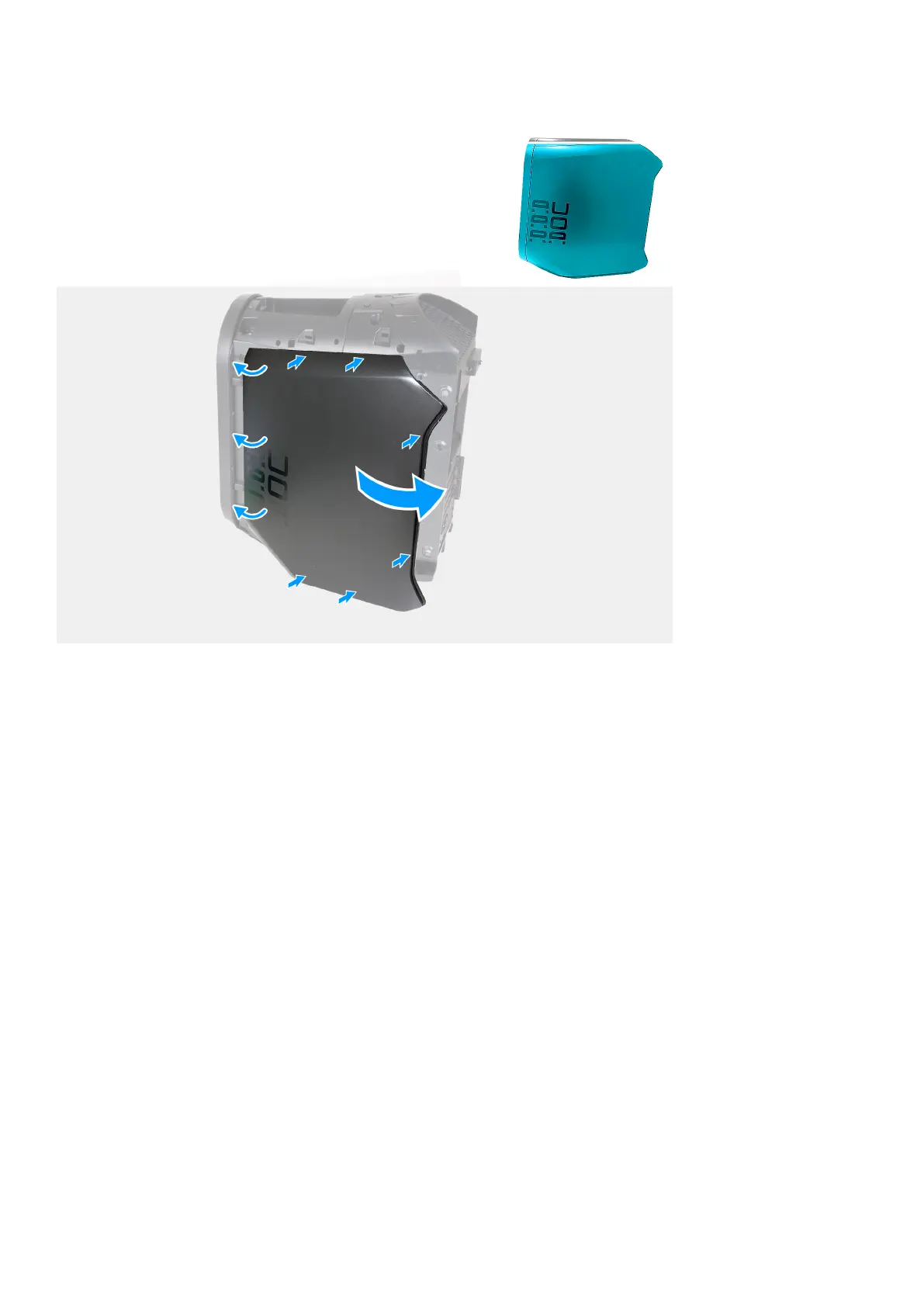

The following images indicate the location of the front bezel and provide a visual representation of the removal procedure.
Removing and installing components
23

Dell Alienware Aurora R15 Specifications

General

Chipset	Intel Z790
Processor Options	13th Gen Intel Core i9-13900KF
Graphics Options	NVIDIA GeForce RTX 4090
Memory	Up to 64GB DDR5
Storage Options	Up to 4TB NVMe SSD + Up to 2TB 7200RPM SATA HDD
Power Supply	1350W Platinum-rated PSU
Cooling	Liquid-cooled CPU and high-performance air cooling options
Operating System	Windows 11 Home, Windows 11 Pro
Front Ports	1x USB 3.2 Gen 2 Type-C
Wireless	Wi-Fi 6E (802.11ax), Bluetooth 5.2
Dimensions	510mm
Weight	16 kg
