Steps

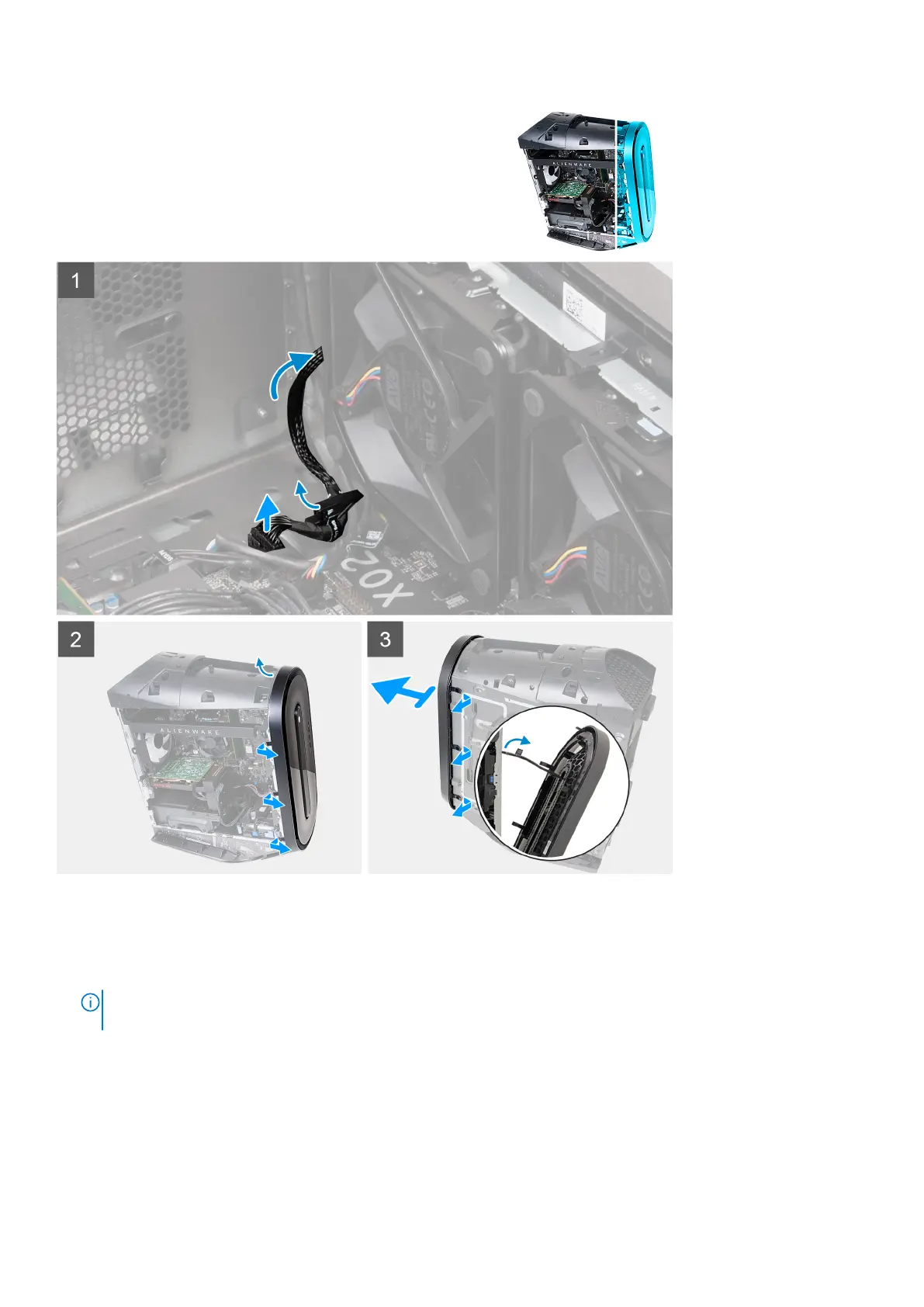

1. Place the computer in an upright position.
2. Disconnect the front I/O-panel cable from the system board.
3. Pull the tabs of the front bezel from the slots on the front panel.
NOTE:
Start with tab on top, proceed to the tabs on the left of the front bezel, and then to the tabs on the right of the
front bezel.
4. Pull the front bezel, together with the front I/O-panel cable, away from the chassis slowly.
Installing the front bezel
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
24
Removing and installing components
