Installing the system board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the connectors on your system board.

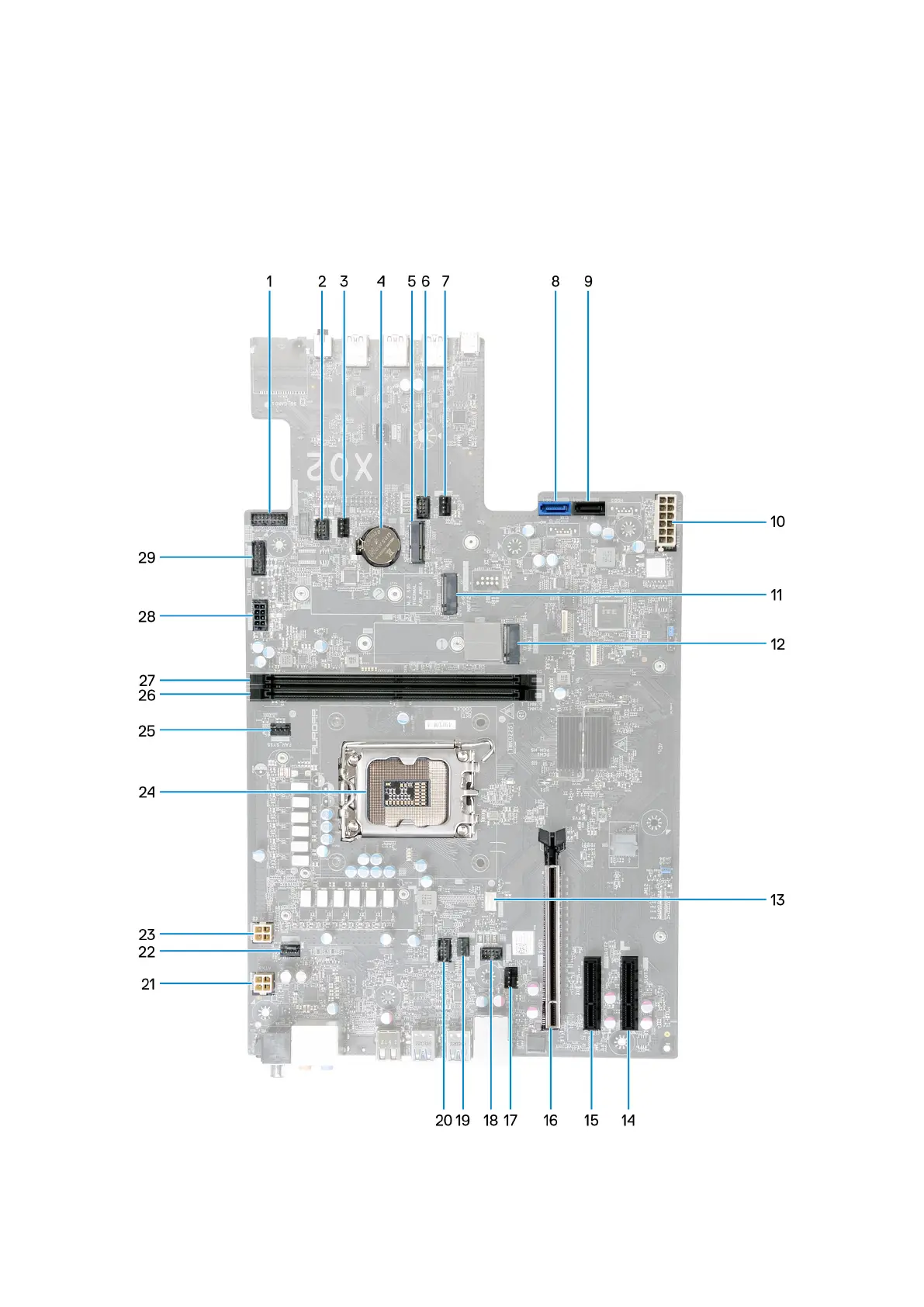

Figure 3. System-board components
1.
Front I/O-panel cable 2. SYSFAN_LED3 connector
92 Removing and installing components
