Dell Alienware Aurora R15 User Manual

Steps

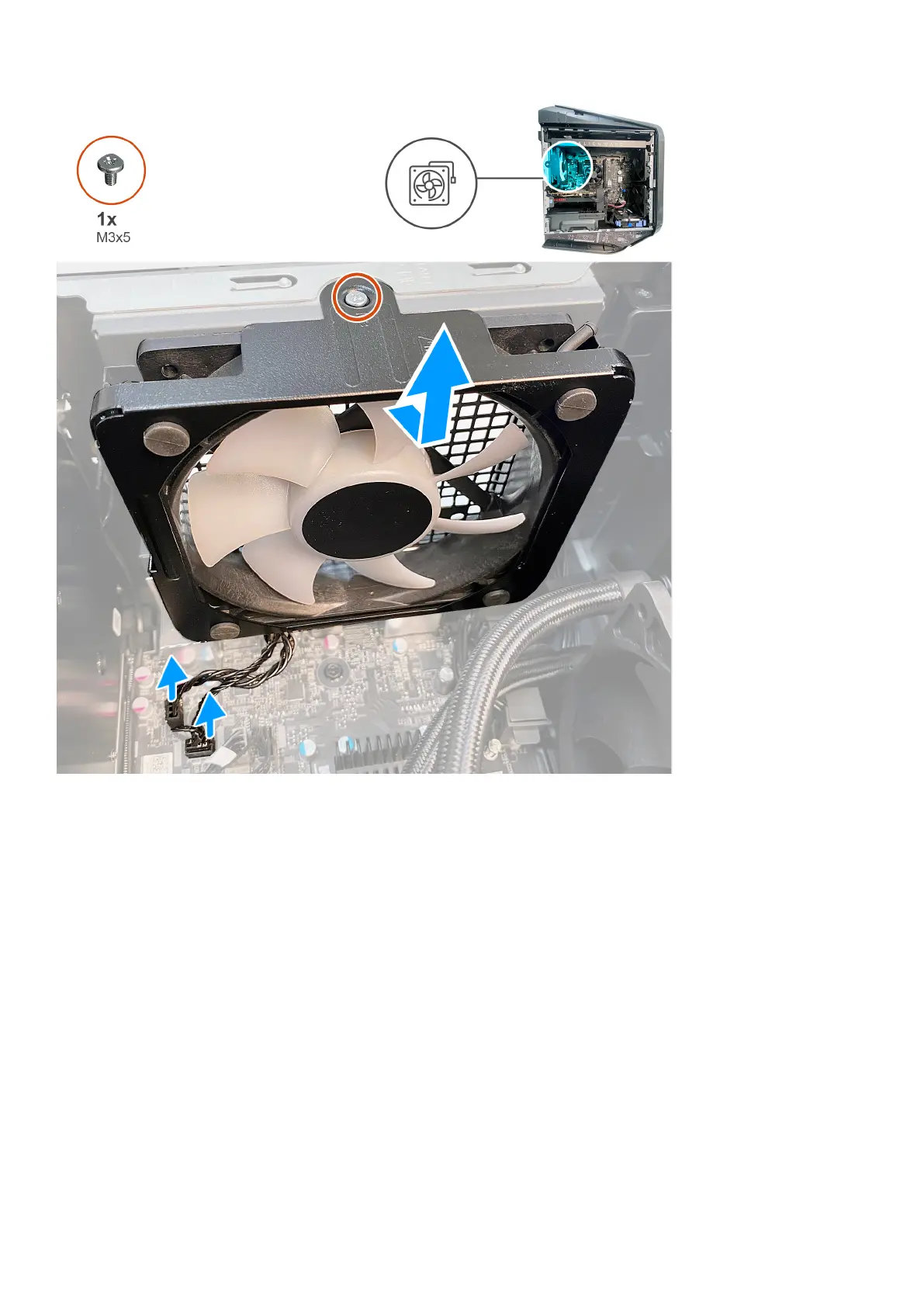

1. Lay the computer on its right side.
2. Disconnect the rear-chassis fan cable from the system board.
3. Remove the screw (M3x5) that secures the rear-chassis fan to the chassis.
4. Slide and lift the rear-chassis off the chassis.
Installing the rear-chassis fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the rear-chassis fan and provide a visual representation of the installation
procedure.
Removing and installing components
77

Dell Alienware Aurora R15 Specifications

General

Chipset	Intel Z790
Processor Options	13th Gen Intel Core i9-13900KF
Graphics Options	NVIDIA GeForce RTX 4090
Memory	Up to 64GB DDR5
Storage Options	Up to 4TB NVMe SSD + Up to 2TB 7200RPM SATA HDD
Power Supply	1350W Platinum-rated PSU
Cooling	Liquid-cooled CPU and high-performance air cooling options
Operating System	Windows 11 Home, Windows 11 Pro
Front Ports	1x USB 3.2 Gen 2 Type-C
Wireless	Wi-Fi 6E (802.11ax), Bluetooth 5.2
Dimensions	510mm
Weight	16 kg
