Steps

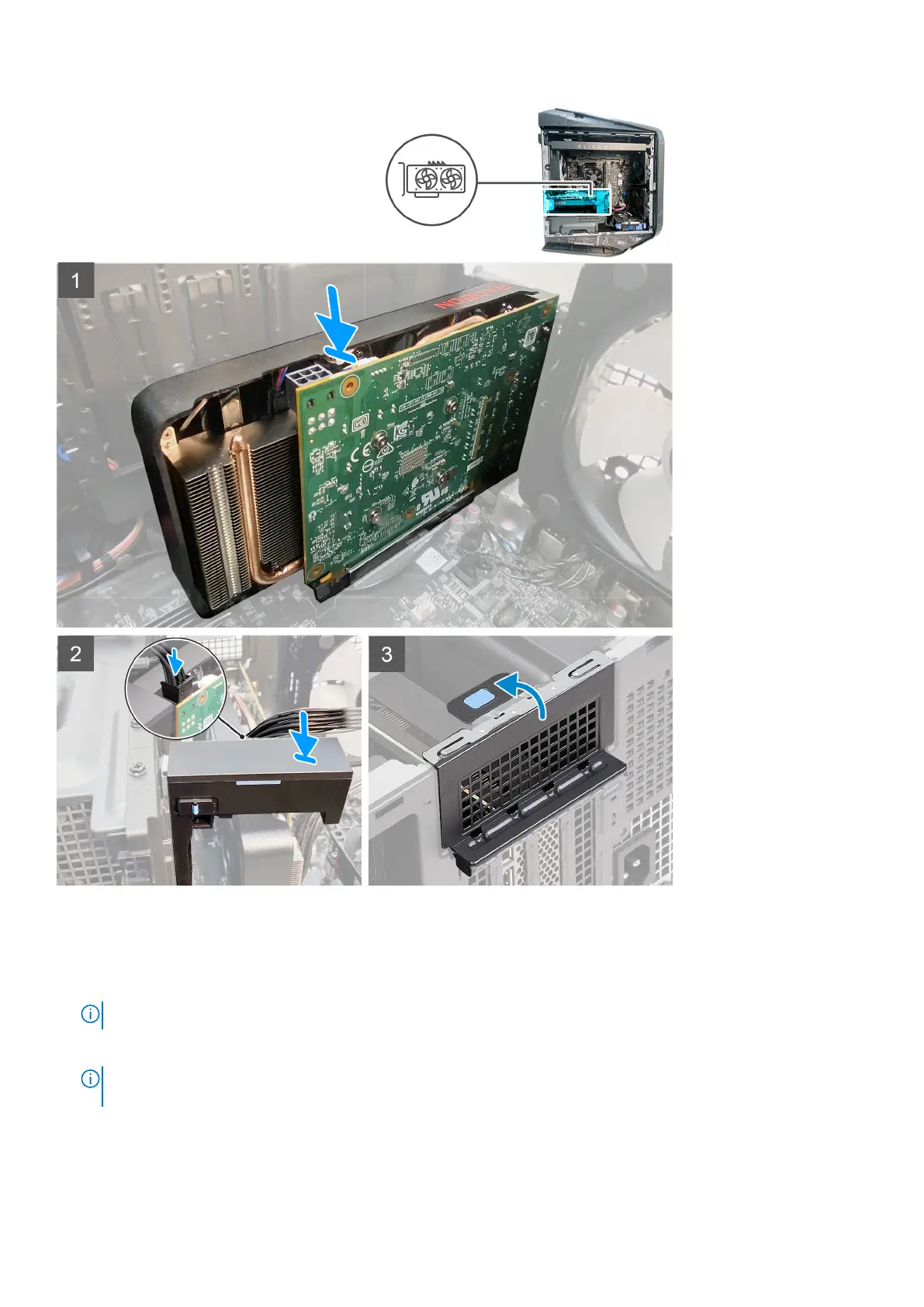

1. Place the card into the PCIe slot and press down firmly until the single-graphics card snaps into place.
2. Close the expansion-card door and snap the latch back into position.
3. Replace the graphics-card end holder over the PCIe fan and slide the latch into its lock position.
NOTE: Skip this step if your graphics card does not ship with a graphics-card end holder.
4. Align and place the graphics-card bracket on the chassis and slide the latch to its lock position.
NOTE:
Skip this step if your graphics card does not ship with a graphics-card end bracket or a graphics-card bracket
holder.
5. Connect the graphics-card power cables to the graphics card.
Removing and installing components
