Steps
1. Remove the four screws (M2x2.5) that secure the I/O board to the palm-rest and keyboard assembly.
2. Remove the tape that secures the I/O daughter board cable to the palm-rest and keyboard assembly.
3. Disconnect and remove the I/O daughter board cable from the I/O daughter board.
4. Lift the I/O board off the palm-rest and keyboard assembly.
Installing the I/O board
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

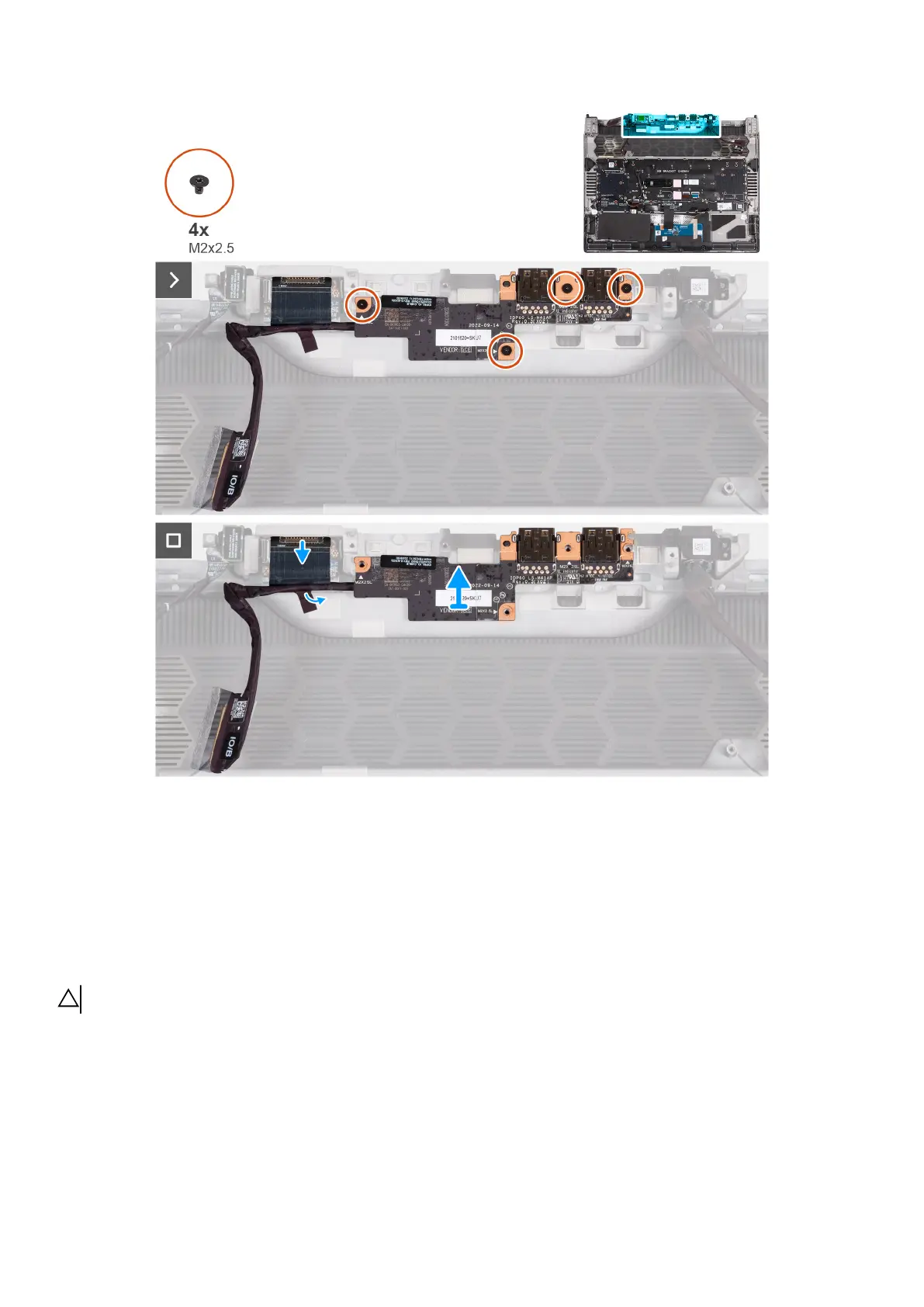

The following images indicate the location of the I/O board and provide a visual representation of the installation procedure.
