Steps

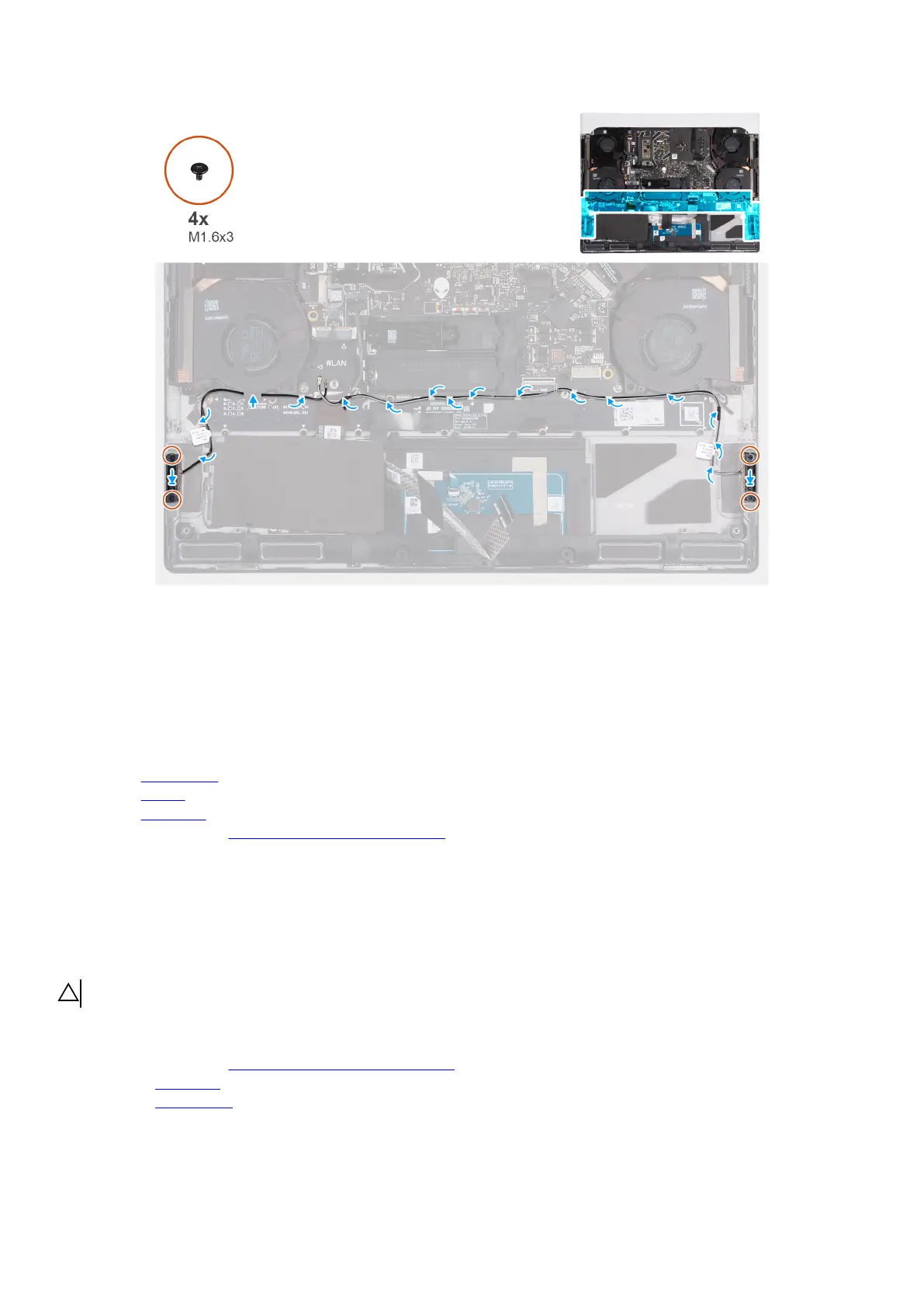

1. Align and place the left and right antennas on the slot on the palm-rest and keyboard assembly.
2. Route the antenna cables onto the routing guides on the palm-rest and keyboard assembly.
3. Adhere the tape that secures the antenna cables to the palm-rest and keyboard assembly.
4. Replace the four screws (M1.6x3) that secures the left and right antennas to the palm-rest and keyboard assembly.
Next steps
1. Install the
wireless card.
2. Install the battery.
3. Install the base cover.
4. Follow the procedure in
After working inside your computer.
Processor fan
Removing the processor fan
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the
wireless card.
About this task
The following images indicate the location of the processor fan and provide a visual representation of the removal procedure.
