Steps

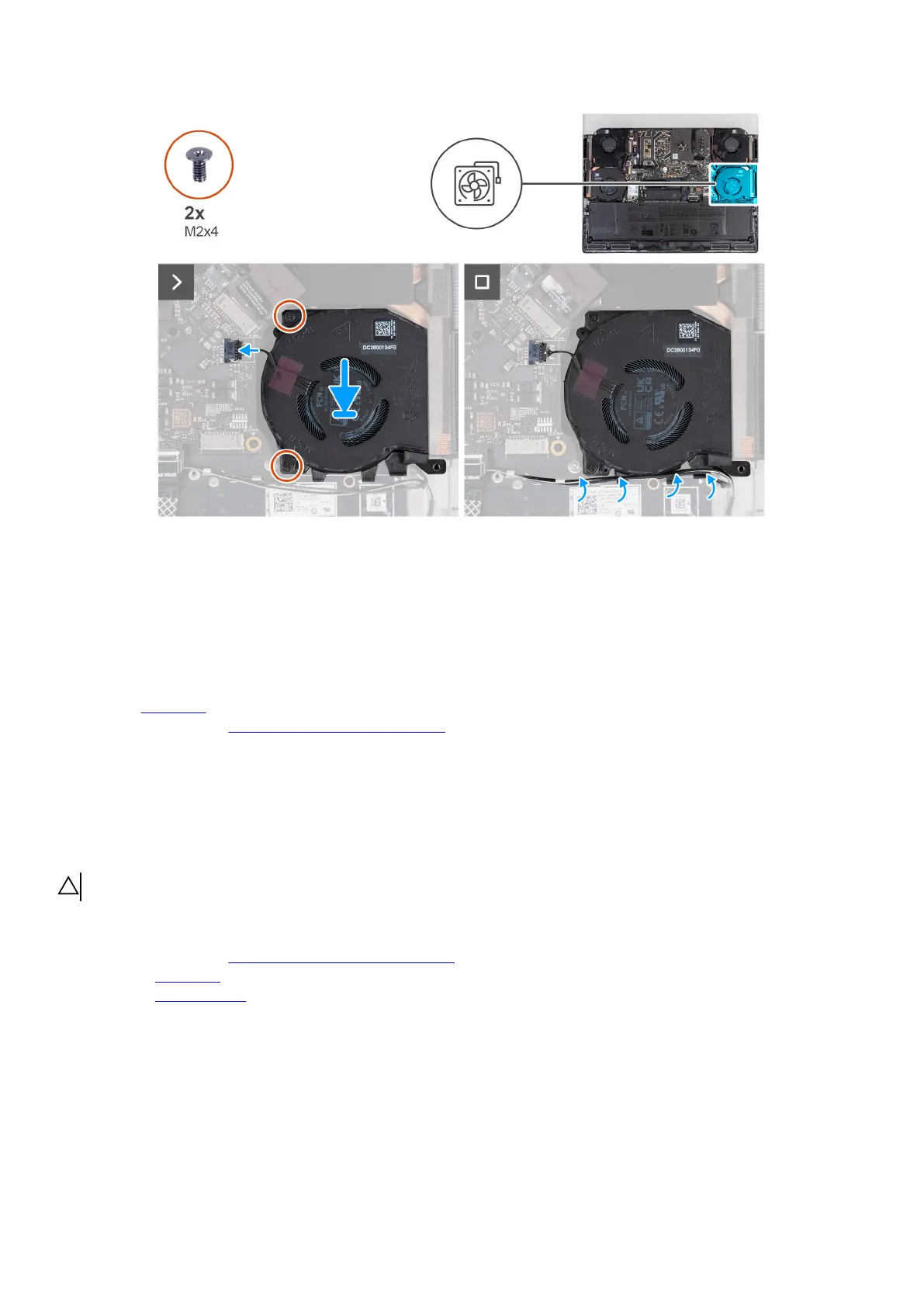

1. Align and place the graphics-card fan into the slot on the palm-rest and keyboard assembly.
2. Connect the graphics-card fan cable to the system board.
3. Replace the two screws (M2x4) that secure the graphics-card fan to the palm-rest and keyboard assembly.
4. Route the speaker cable and the antenna cable through the routing guides on the bottom of the graphics-card fan.
Next steps
1. Install the
base cover.
2. Follow the procedure in After working inside your computer.
Power-adapter port
Removing the power-adapter port
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the rear I/O-cover.
About this task
The following images indicate the location of the power-adapter port and provide a visual representation of the removal procedure.
