Steps

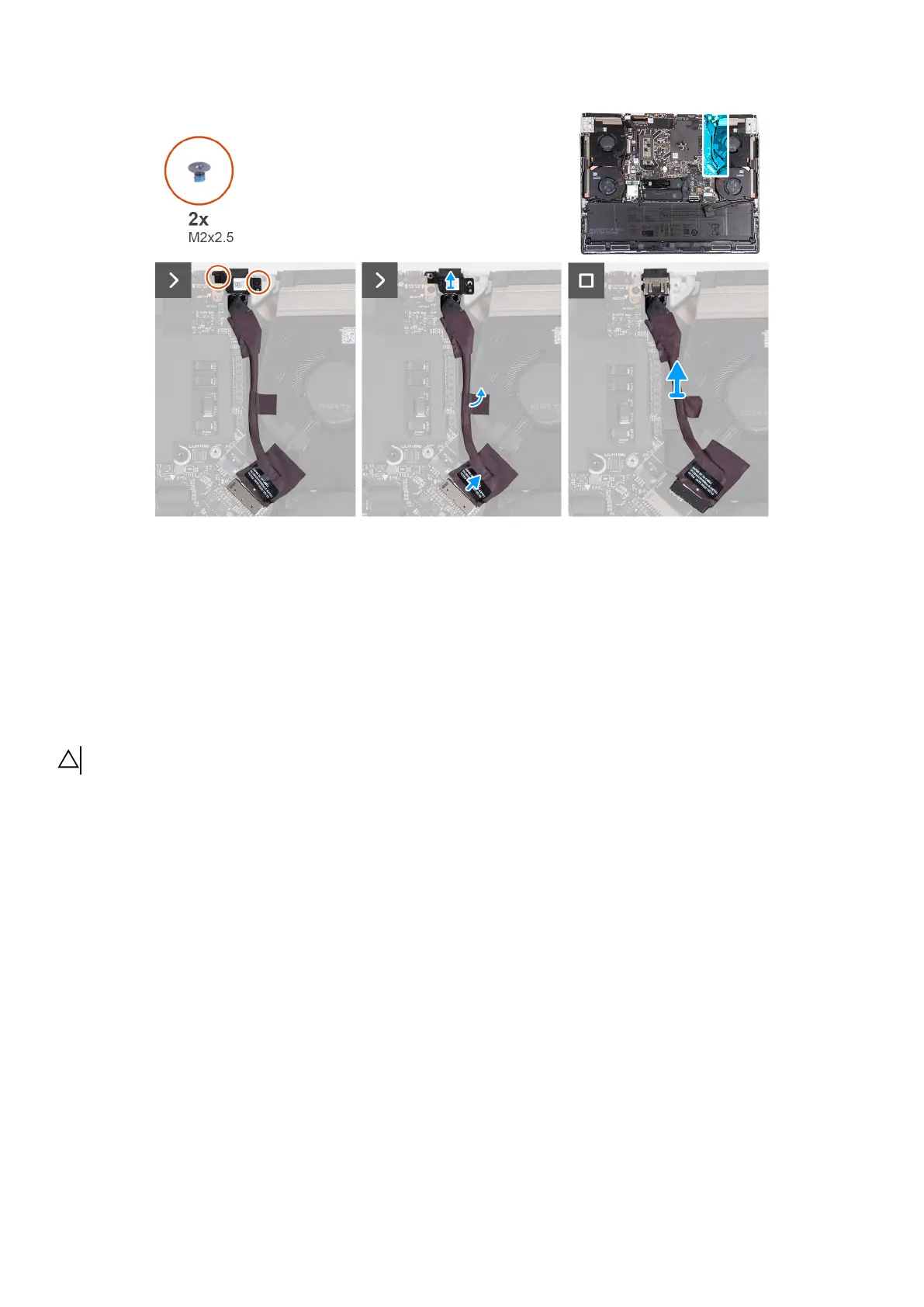

1. Remove the two screws (M2x2.5) that secure the power-adapter port bracket to the palm-rest and keyboard assembly.
2. Lift the power-adapter port bracket off the palm-rest and keyboard assembly.
3. Using the pull tab, disconnect the power-adapter port cable from the system board.
4. Peel the tape that secures the power-adapter port cable to the fan and heat-sink assembly.
5. Lift the power-adapter port, along with its cable, off the palm-rest and keyboard assembly.
Installing the power-adapter port
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the power-adapter port and provide a visual representation of the installation
procedure.
