Dell D825TM - 2 Disassembly; Cabinet Removal; Service Position; D,A and D1 Board Removal

— 10 —
D825TM

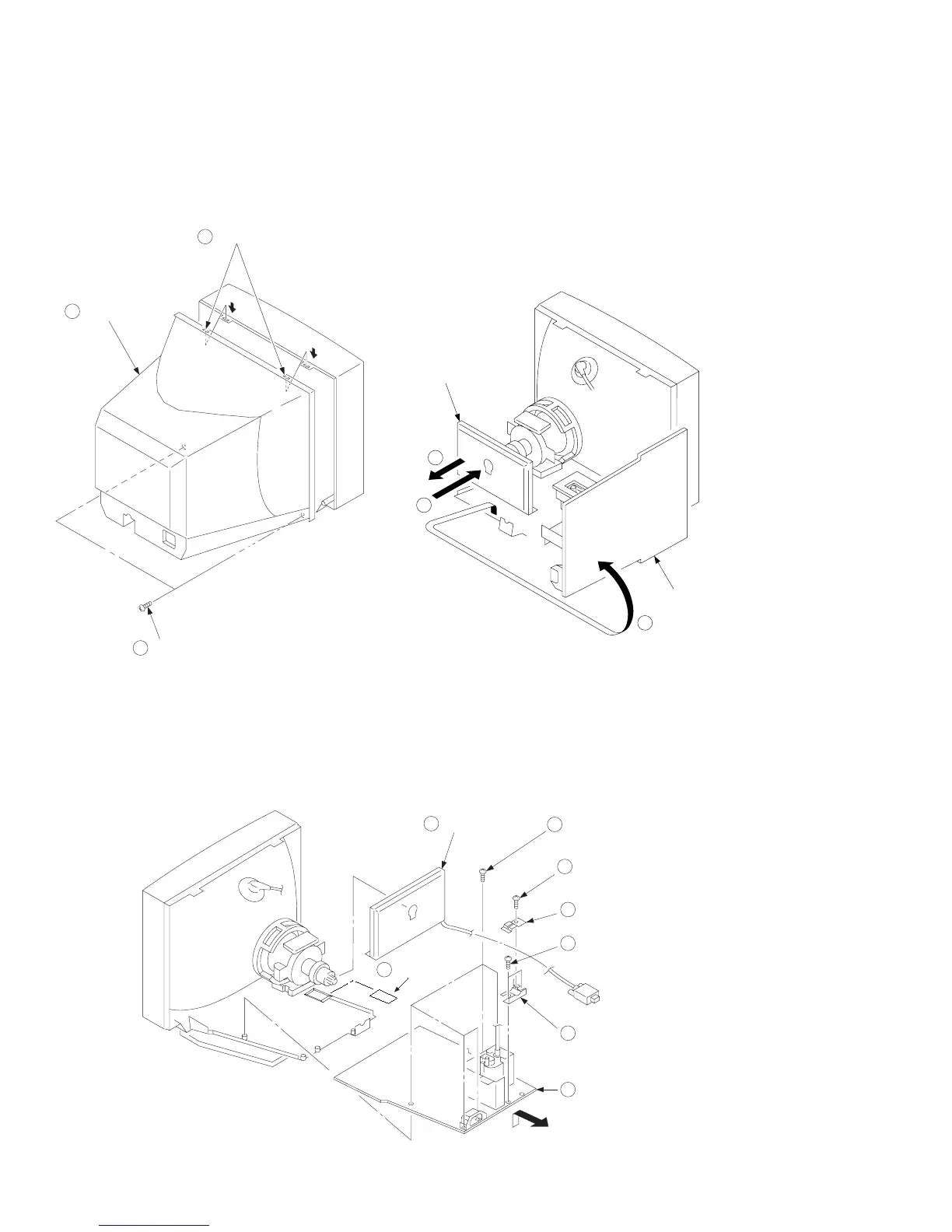

2-3. D, A and D1 BOARD REMOVAL
2-1. CABINET REMOVAL
2-2. SERVICE POSITION
SECTION 2
DISASSEMBLY
1
2
3
A board
D board
Cabinet
1
3
2
Two screws
(BVTP 4 x 16)
Two claws
PUSH
PUSH
Cable bracket
Cable stopper
Five screws
(BVTP 3 x 12)
D board
One screw
(BVTT 4 x 8)
1
4
5
7
3
8
A board
Two screws
(BVTP 3 x 12)
6
D1 board
2
