D825TM
SECTION 6
EXPLODED VIEWS
Note:
The components identified by shading
and mark
¡¡
¡¡
¡
are critical for safety.
Replace only with part number specified.
• Items with no part number and no descrip-
tion are not stocked because they are sel-
dom required for routine service.
• The component parts of an assembly are
indicated by the reference numbers in the
remarks column.
• Items marked " * " are not stocked
since they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
7-685-648-79 SCREW +BVTP 3x12
7-685-663-71 SCREW +BVTP 4x16

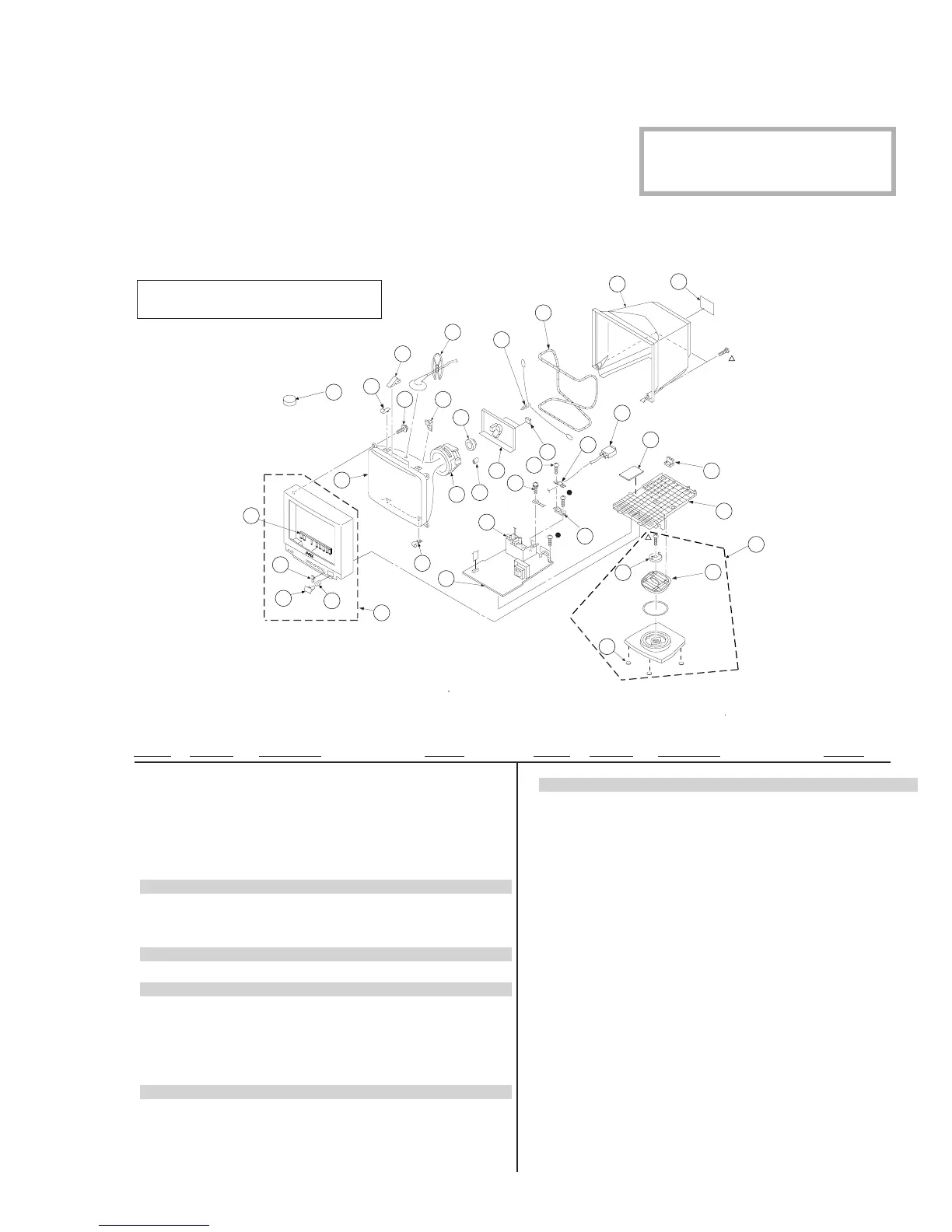

6-1. CHASSIS
r
REF.NO. PART NO. DESCRIPTION REMARK
1 X-4035-260-1 BEZEL ASSY 2-5
2 3-653-339-01 SPRING, COMPRESSION
3 4-062-873-01 BUTTON, POWER
4 4-062-874-01 GUIDE, LIGHT
5 * 4-062-872-01 BUTTON, MULTI
6 ¡ 8-734-837-05 CRT, 15FRS (MIZ) (M36LDJ15X)
7 4-045-123-01 HOLDER, DEGAUSSING COIL
8 4-040-897-01 SPACER, DY
9 4-365-808-01 SCREW (5), TAPPING
11 ¡ 1-452-923-11 NECK ASSY
12 ¡ 8-451-491-11 DY Y15FRF4-M
13 1-500-386-11 FILTER CLAMP (FERRITE CORE)
14 * A-1294-026-A A BOARD, COMPLETE
15 * 4-050-329-01 CUSHION (A)
16 4-369-318-00 SPRING, TENSION
17 ¡ 1-409-799-11 COIL, DEMAGNETIZATION
18 4-062-875-01 CABINET
19 * A-1346-704-A D BOARD, COMPLETE
21 ¡ 1-453-252-11 TRANSFORMER ASSY, FLYBACK (NX-4430//X4K4)
22 4-389-025-01 SCREW (M4x8)(EXT.TOOTHWASHER)
23 7-685-881-09 SCREW + BVTT 4x8 (S)
24 * 4-045-131-01 STOPPER, CABLE
25 * 4-045-130-01 BRACKET, CABLE
26 * 1-782-836-11 CABLE ASSY VIDEO (15P D-SUB)
27 * A-1343-447-A D1 BOARD, MOUNTED
28 * 4-063-360-01 COVER, CABLE
29 * 4-063-533-01 BRACKET, CHASSIS
30 X-4035-259-1 STAND BASE, ASSY 31-33
31 4-063-361-01 SLIDER
32
33 4-061-996-01 CUSHION
35 1-452-032-00 MAGNET, DISC
36 3-704-372-01 HOLDER, HV CABLE
37 * 4-063-560-01 LABEL, INFORMATION
REF.NO. PART NO. DESCRIPTION REMARK
¢
18
27
37
16
8
14
13
21
12
22
23
7
2
3
35
29
28
25
26
24
6
31
15
19
17
36
8
9
1
7
5
4
11
32
30
33
4-060-340-01 STOPPER (A)
To Next Page
