Removing and Installing Parts 73
NOTICE: Match the colored strip on the cable with pin 1 on the drive (pin 1 is marked as "1").
6
Connect the power cable to the system board (see page 53).
7
Locate the data cable from the CD or DVD drive in the upper drive bay and connect its middle data
connector to the new drive.
8
Reattach the front panel (see page 62).
9
Replace the computer cover (see page 75).
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the
computer.
10
Connect your computer and devices to electrical outlets, and then turn them on.
11
See the documentation that came with the drive for instructions on installing any software required for
drive operation.
Battery
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the
Product Information Guide.
NOTICE: To prevent static damage to components inside your computer, discharge static electricity from your
body before you touch any of your computer’s electronic components. You can do so by touching an unpainted
metal surface on the computer chassis.

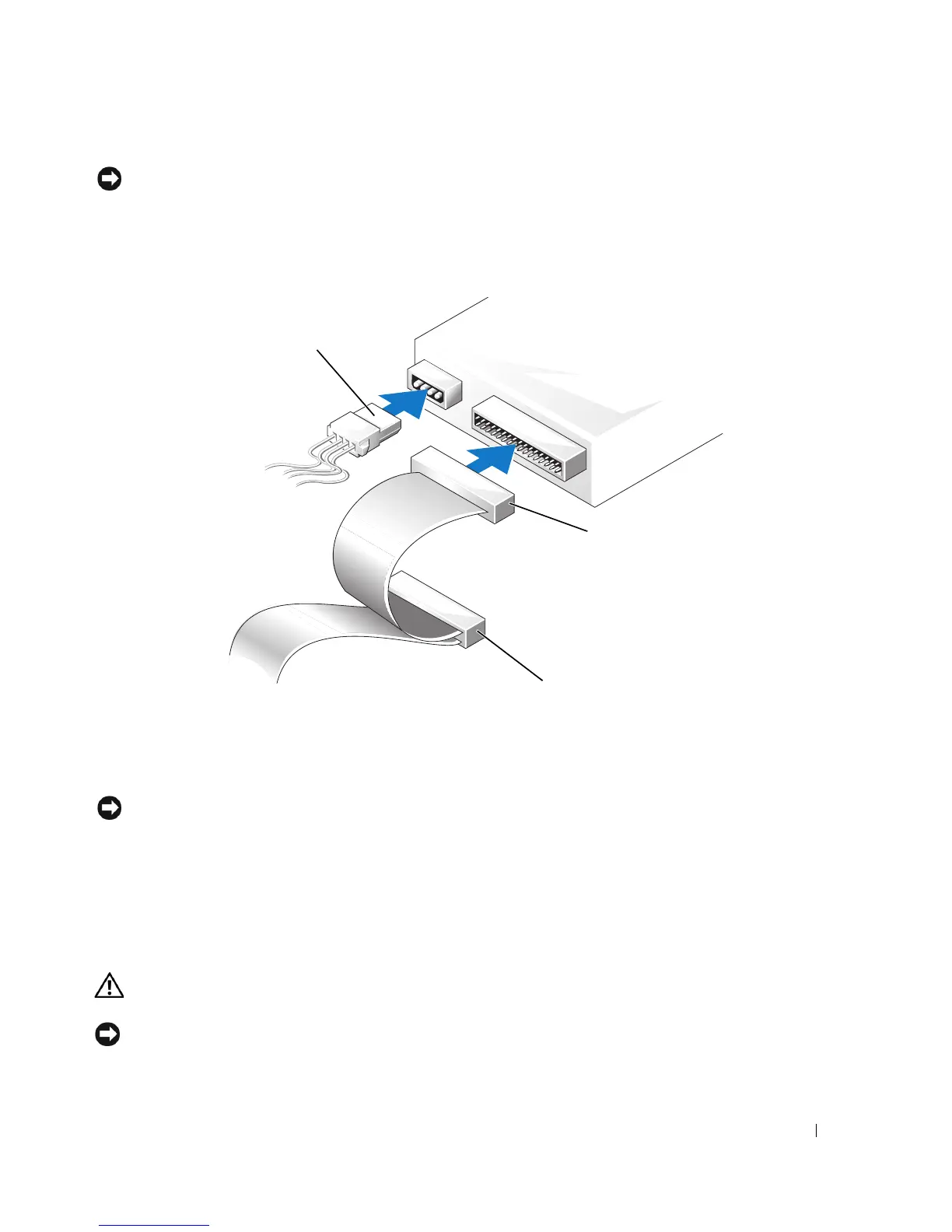

power cable
first CD/DVD
connector
(primary drive)
second CD/DVD
connector (secondary
drive)
