Dell E2009W - E2009 W Disassembly Block

Service Manual
21

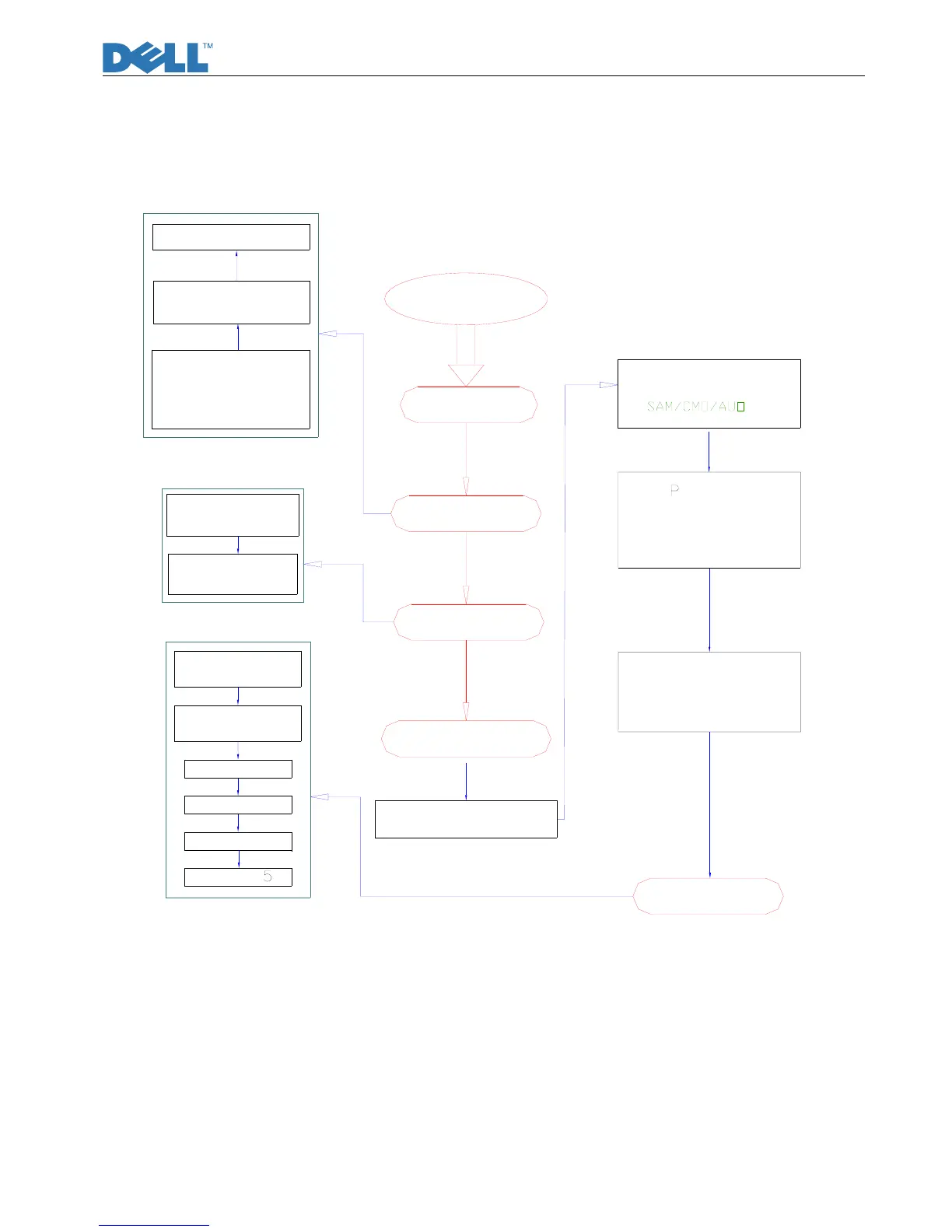

2. E2009W Disassembly Block
PANEL*1
keypad board*1
Screw,P,Cross,
T,T-2*3,BLK*4
(P,cross,T.T-3*4,Zn)*1
EMI clip*
fix-plateL*1
(P,Cross,M4*10,BLACK-NL)*4
FINAL ASSY*1
(I,Cross,M3*4,Zn-Cc)*4
(
)
(P,Cross,W/WAS,M3*6,Zn-Cc)*3
FFC-CABLE*1
(P,Cross,W/WAS,M3*6,Zn-Cc)*
2
(BOLT,#4-40,NI)*4
(P,cross,T.T-3*4,Zn)*1
PANEL ASSY*1
spring*2
slide*1
fix-plateR*1
Chassis*1
I/F board*1
ower board*1
CHASSIS ASSY*1
STAND ASSY*1
kensington lock*1
BACK COVER ASSY*1
Back cover*1
Front bezel*1
logo plate*1
Button_Function *1
FRONT BEZEL ASSY*1
VESA release button*1
LE20M9 DISASSEMBLY BLOCK
power lens*1
(B,Cross,W/WAS,M3*9,Zn-Cc)*1
I,Cross,M3*6,Zn-Cc)*2
TAPE,ACE,85x20mm*1
Note: 1. The arrows point out the direction of disassembly.
