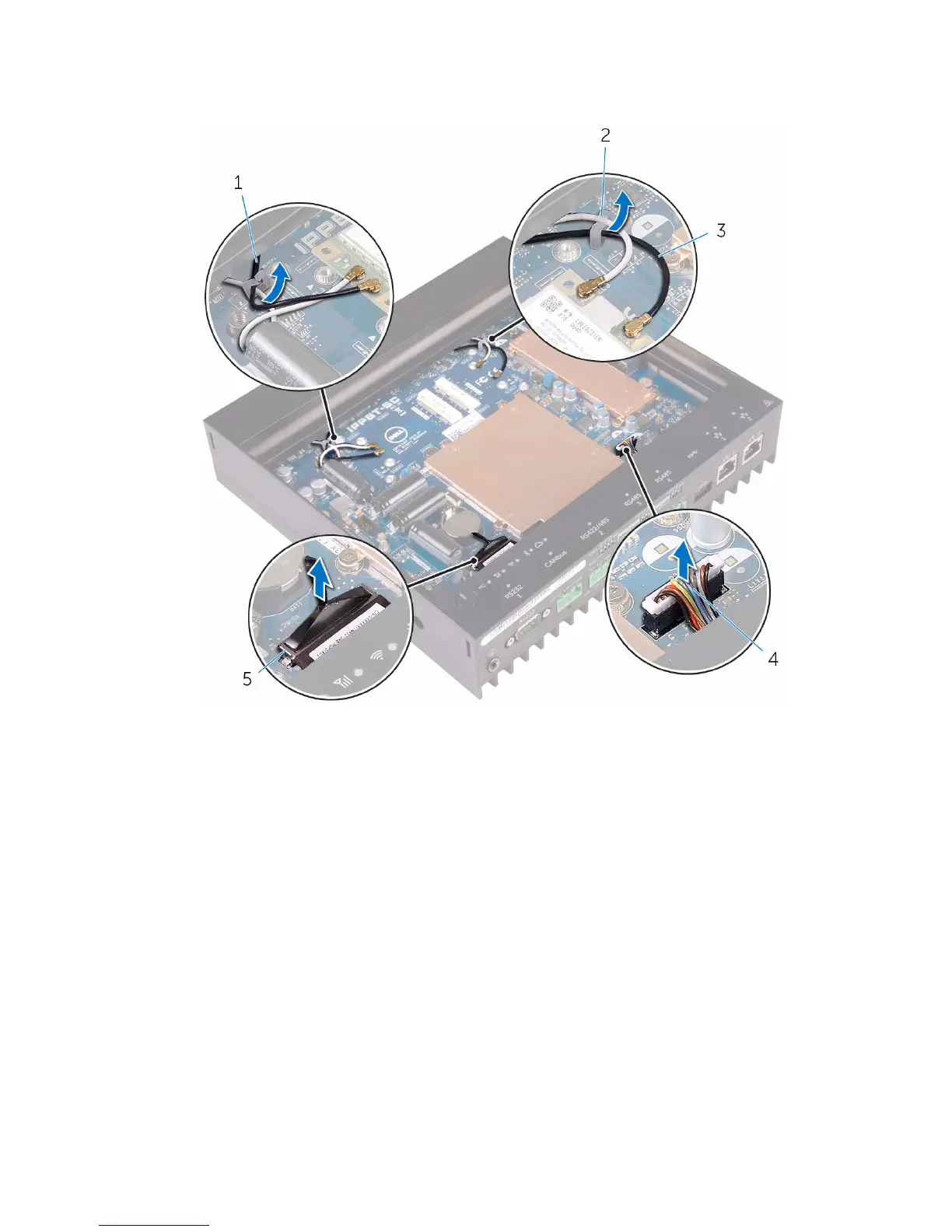

6 Disconnect the Dip Switch board cable and status-light board cable from
the system board.
1 mobile broadband card
cables (2)
2 routing guide (2)
3 , 4 ,
5 Dip Switch board cable 6 status-light board cable
31
