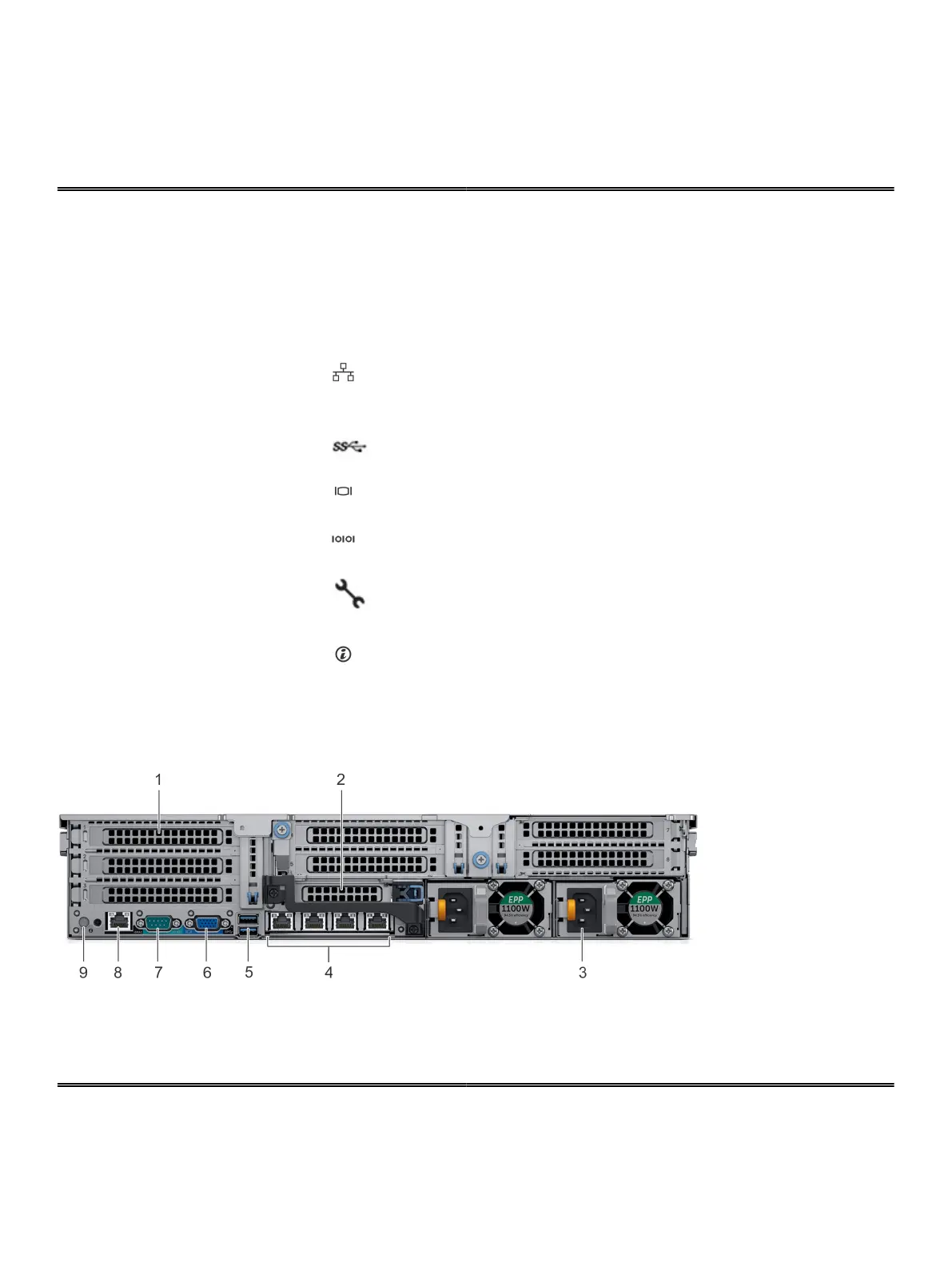

Table 5 Back view features for the R740xd
Item Ports, panels, or slots Icon Description
1 Full-height PCIe expansion
card slot (7)
N/A The PCIe expansion card slot (riser 1, 2 and 3) connects up to
seven full-height PCIe expansion cards to the system. For more
information, see Expansion bus specifications.
2 Half-height PCIe expansion
card slot
N/A The PCIe expansion card slot (riser 2) connects one half-height
PCIe expansion cards to the system. For more information, see
Expansion bus specifications.
3 Power supply unit (2) N/A For more information, see Technical specifications.
4 NIC ports The NIC ports that are integrated on the network daughter card
(NDC) provide network connectivity. For more information about
the supported configurations, see Technical specifications.
5 USB port (2) The USB ports are 9-pin and 3.0-compliant. These ports enable
you to connect USB devices to the system.
6 VGA port Enables you to connect a display device to the system. For more
information, see Technical specifications.
7 Serial port Enables you to connect a serial device to the system. For more
information, see Technical specifications.
8 iDRAC9 dedicated port Enables you to remotely access iDRAC. For more information, see
the Integrated Dell Remote Access Controller User's Guide at
www.dell.com/idracmanuals.
10 System identification
button
The System Identification (ID) button is available on the front and
back of the system. Press the system ID button to identify a
system in a rack. You can also use the system ID button to reset
iDRAC and access BIOS using step-through mode.
Figure 6 Back view of the VxFlex Ready Node R740xd 4 x 2.5 inch drive system
Table 6 Back view features for the VxFlex Ready Node R740xd 4 x 2.5 inch drive system
Item Ports, panels, or slots Icon Description
1 Full-height PCIe expansion
card slot (3)
N/A The PCIe expansion card slot (riser 1) connects up to three full-
height PCIe expansion cards to the system. For more information,
see Expansion bus specifications.
VxFlex appliance and VxFlex Ready Node R740xd system overview
R740xd Owner's Guide 13

Dell EMC VxFlex Ready Node R740xd Specifications

General

Form Factor	2U rack server
Operating System Support	VMware ESXi, Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor	Intel Xeon Scalable processors (up to 28 cores)
Memory	Up to 3TB DDR4
Storage	Up to 24 x 2.5"
RAID Controller	PERC H730P, H740P
Power Supply	1100W
Network	Dual-port 10GbE or 25GbE NIC options
