Table 30 iDRAC Quick Sync 2 indicators and descriptions (continued)
iDRAC Quick Sync 2 indicator
code
Condition Corrective action
Solid amber Indicates that the system is in fail-safe
mode.
Restart the system. If the problem persists, see
Getting help on page 45.
Blinking amber Indicates that the iDRAC Quick Sync 2
hardware is not responding properly.
Restart the system. If the problem persists, see
Getting help on page 45.
iDRAC Direct LED indicator codes
The iDRAC Direct LED indicator lights up to indicate that the port is connected and is being used as a part of the iDRAC
subsystem.
You can configure iDRAC Direct by using a USB-to-micro USB (type AB) cable, which you can connect to your laptop
or tablet. The following table describes iDRAC Direct activity when the iDRAC Direct port is active:
Table 31 iDRAC Direct LED indicator codes
iDRAC Direct LED
indicator code
Condition
Solid green for two
seconds
Indicates that the laptop or tablet is connected.
Flashing green (on for two
seconds and off for two
seconds)
Indicates that the laptop or tablet connected is recognized.
Turns off Indicates that the laptop or tablet is unplugged.
NIC indicator codes
Each NIC on the back of the system has indicators that provide information about the activity and link status. The
activity LED indicator indicates if data is flowing through the NIC, and the link LED indicator indicates the speed of the
connected network.

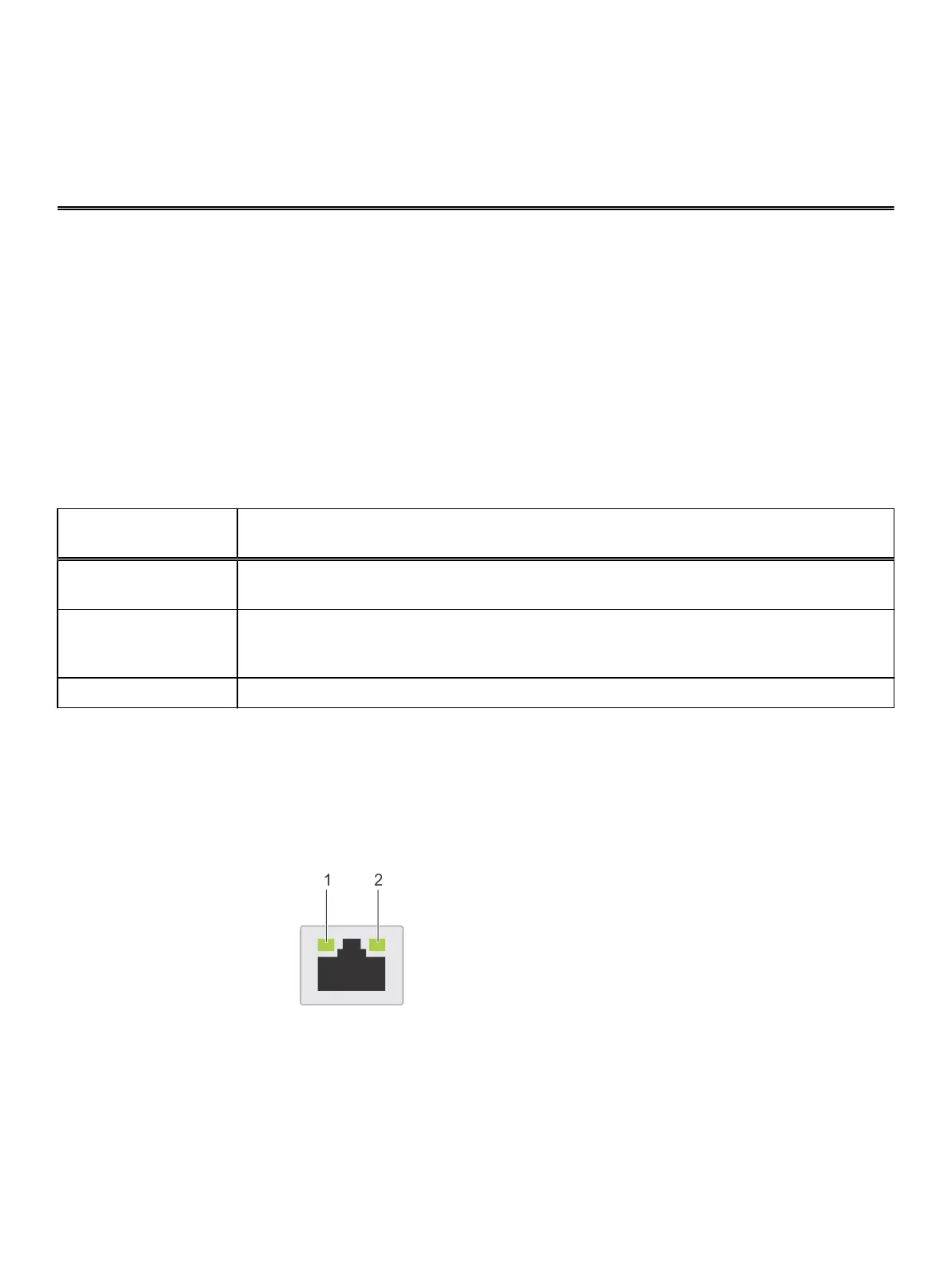

Figure 18
NIC indicator codes
1. Link LED indicator
2. Activity LED indicator
The NIC indicators table describes different NIC indicator codes and condition of the connectivity.
System diagnostics and indicator codes
36 R740xd Owner's Guide
