Front view of the R740xd system
The front view displays the features available on the front of the system.

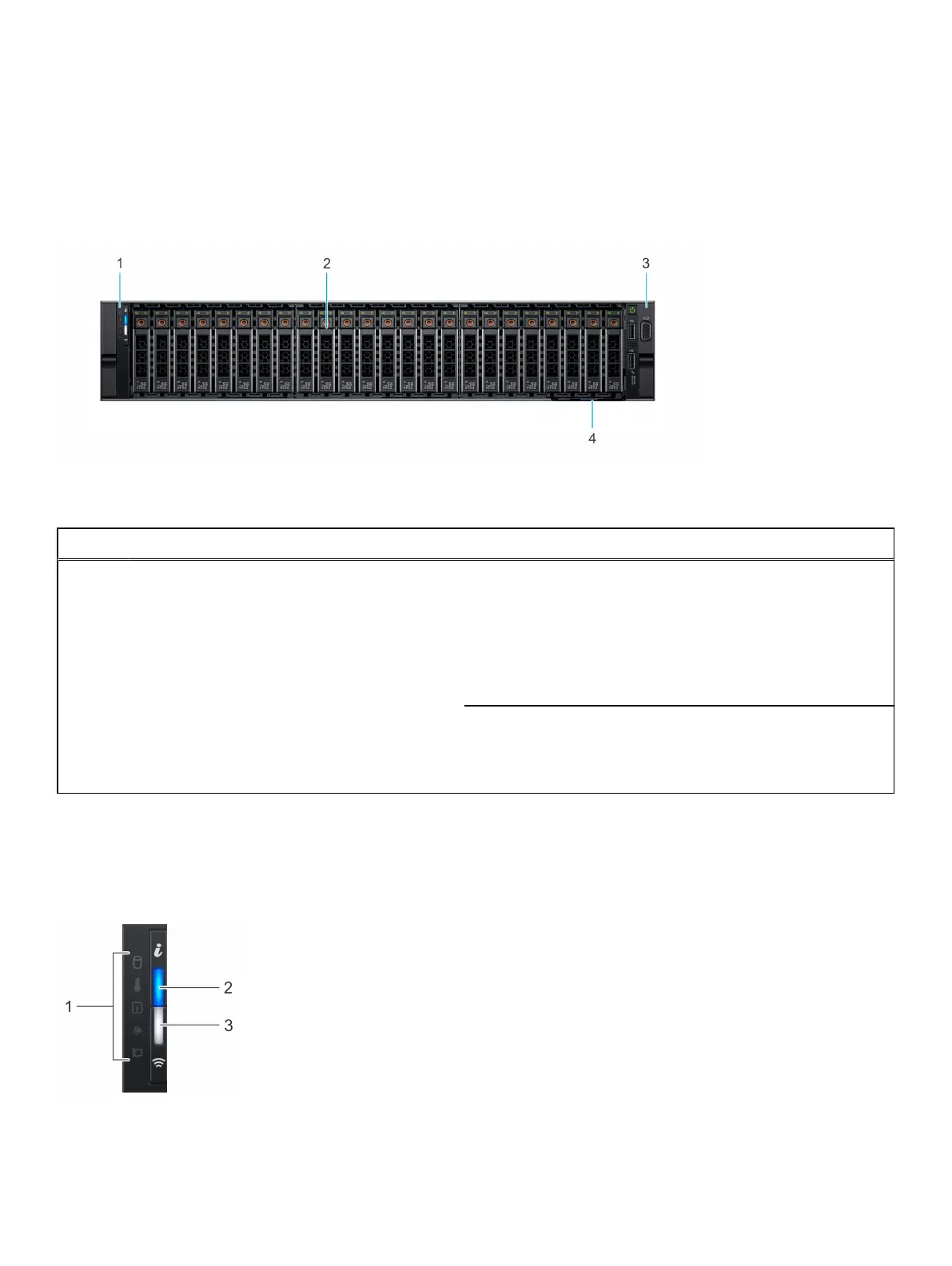

Figure 1 Front view R740xd system
Table 1 Features available on the front of the 24 x 2.5 inch drive R740xd system
Item Ports, panels, and slots Icon Description
1 Left control panel N/A Contains system health and system ID, status LED and optional
iDRAC Quick Sync 2 (wireless).
2 Drive slots N/A Enable you to install drives that are supported on your system. For
more information, see Technical specifications.
3 Right control panel N/A Contains the power button, VGA port, iDRAC Direct micro USB
port, and two USB 2.0 ports.
4 Information tag N/A
The Information Tag is a slide-out label panel that contains system
information such as Service Tag, NIC, MAC address, and so on. If
you have opted for the secure default access to iDRAC, the
Information tag also contains the iDRAC secure default password.
Left control panel view
The left control panel with optional iDRAC Quick Sync 2.0 indicator is explained as follows:
Figure 2
Left control panel
VxFlex appliance and VxFlex Ready Node R740xd system overview
8 R740xd Owner's Guide
