Dell EMC VxFlex Series - Data Networks a and B; Data Network a Cabling

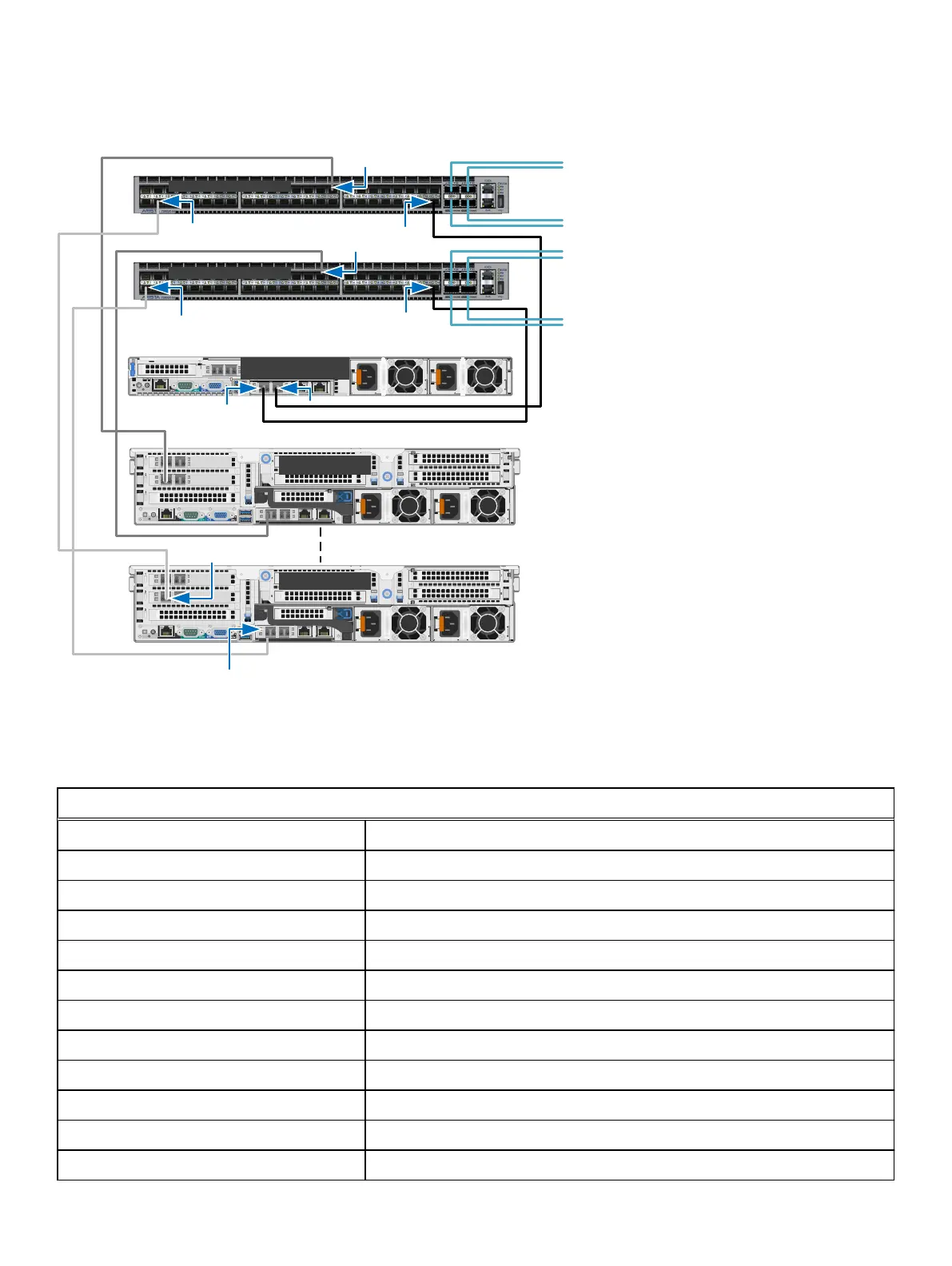

Figure 38 Data networks A and B
iDRA
C
iDRA
C
Data Switch A
Node 17
Node 1
Mgmt Server
40 G link to
core switch
Data Switch B
40 G link to
core switch
40 G link to
core switch
4
2
48
0
0
2
31
29
48
1
Table 18 Data network A cabling
Data Network A
Source Destination
Node 1 Onboard Port 0 Data Network Switch A Port 2
Node 2 Onboard Port 0 Data Network Switch A Port 6
Node 3 Onboard Port 0 Data Network Switch A Port 10
Node 4 Onboard Port 0 Data Network Switch A Port 14
Node 5 Onboard Port 0 Data Network Switch A Port 18
Node 6 Onboard Port 0 Data Network Switch A Port 22
Node 7 Onboard Port 0 Data Network Switch A Port 26
Node 8 Onboard Port 0 Data Network Switch A Port 30
Node 9 Onboard Port 0 Data Network Switch A Port 34
Management Server Port 0 Data Network Switch A Port 48
Node 10 Onboard Port 0 Data Network Switch A Port 1
Wiring Diagrams for a R740XD Configuration
Dell EMC VxFlex Ready Node Server Installation Guide 75
