Dell FORCE10 Open Automation User Manual

76 | Web GUI and HTTP Server
www.dell.com | support.dell.com
Web Graphical User Interface
In the Open Automation package, the Web graphical user interface (GUI) provides a
user-friendly way to retrieve configuration information from a switch by choosing a
menu option.
Getting Started
To open the Web interface and get started on switch operations, follow these steps:
Step Task
Prerequisites: Only the following web browsers are supported:
• Internet Explorer 7.0 or later
• Firefox 3.6 or later

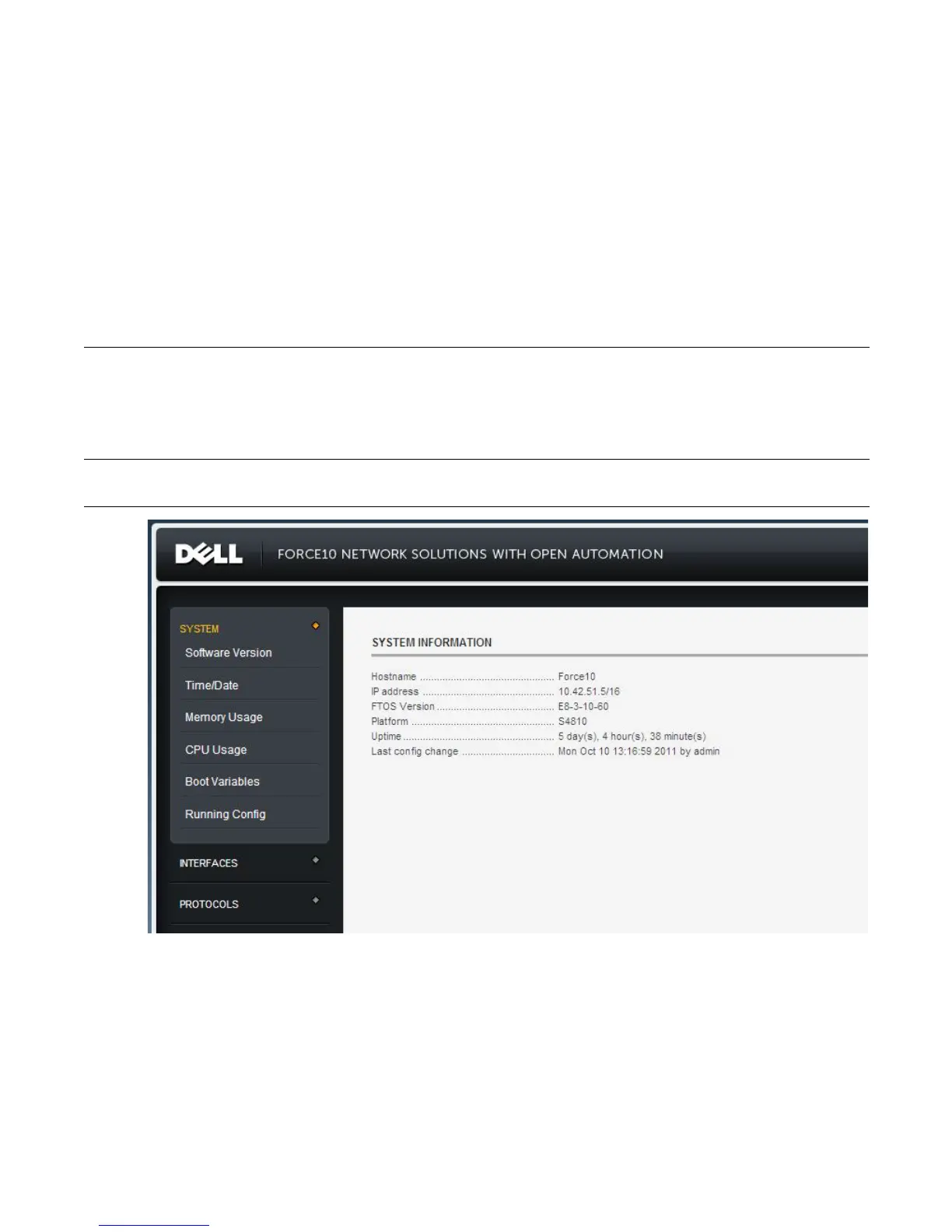

1. Open a web browser and enter the http://ip-address command to access the Open Automation web-based
interface for a switch. The main screen of the Web GUI is displayed as shown below:

Dell FORCE10 Open Automation Specifications

General

Series	FORCE10
Model	Open Automation
Jumbo Frame Support	Yes
Product Type	Switch
Ports	Varies by model
Switching Capacity	Varies by model
Forwarding Rate	Varies by model
MAC Address Table Size	Varies by model
Power Supply	Varies by configuration
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Dimensions	Varies by model
Weight	Varies by model
