Steps

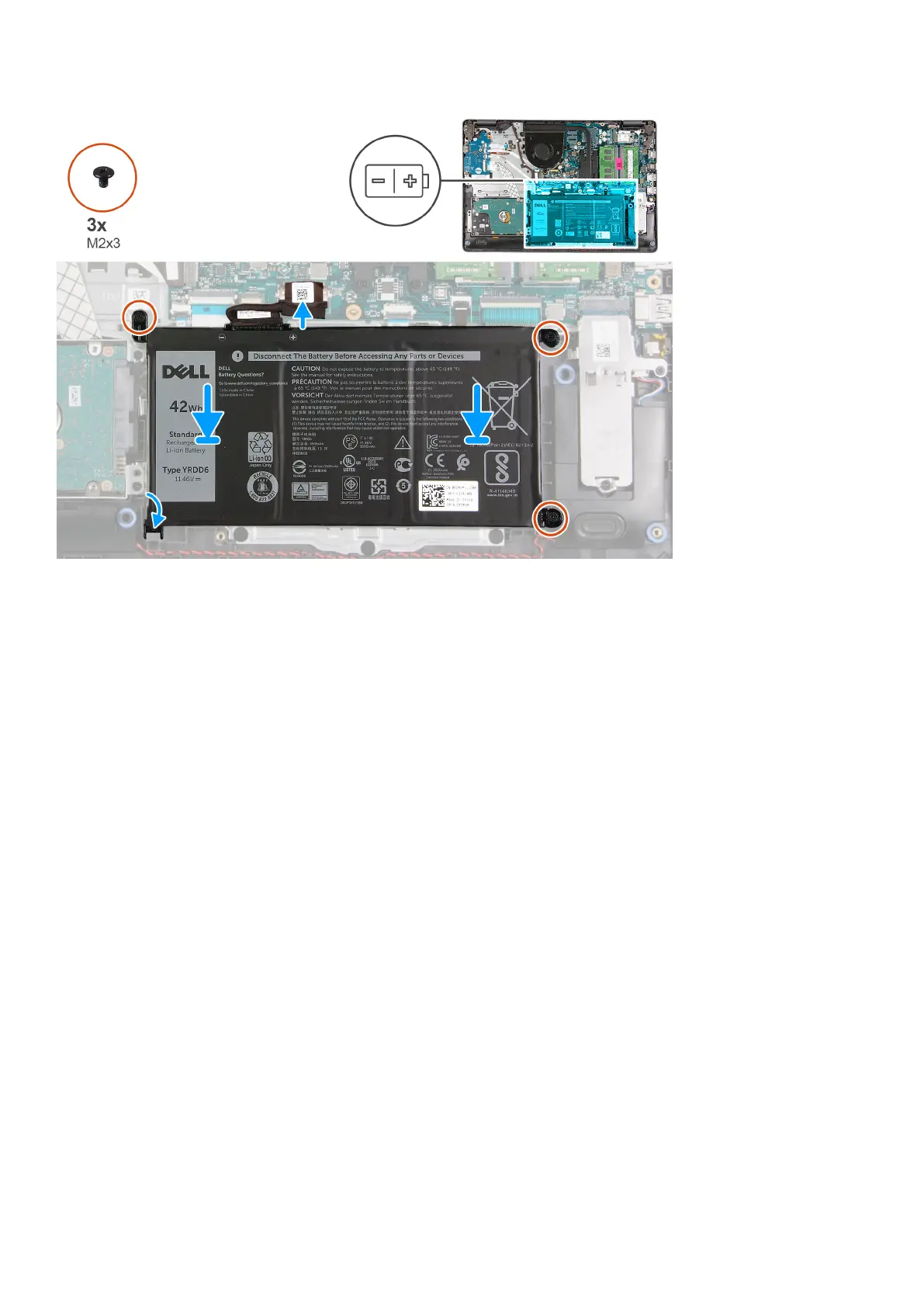

1. Slide the notch on the battery under the tab on the palm-rest and keyboard assembly and place the battery on the palm-rest
and keyboard assembly.
2. Align the screw holes on the battery to the screw holes on the palm-rest and keyboard assembly.
3. Replace the three screws (M2x3) that secure the battery to the palm-rest and keyboard assembly.
4. Connect the battery cable to the connector on the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Hard drive
Removing the hard drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task
The following images indicate the location of the hard drive and provides a visual representation of the removal procedure.
Removing and installing components
27
