Dell Inspiron 5570 User Manual

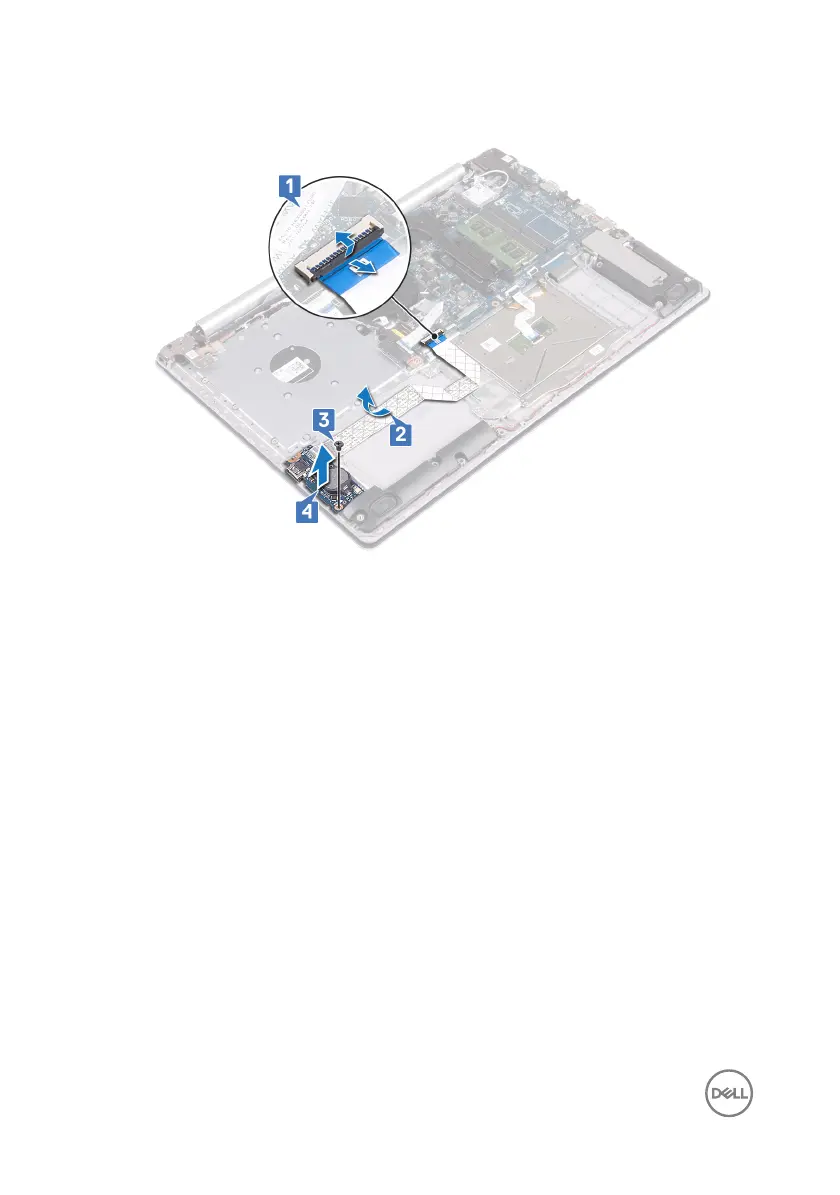

4 Lift the I/O board o the palm rest and keyboard assembly.
Procedure for computers shipped without optical drive
1 Disconnect the coin-cell battery cable from the I/O board.
2 Open the latch and disconnect the I/O-board cable from the system board.
3 Remove the two screws (M2x4) that secure the I/O board to the palm rest and
keyboard assembly.
82

Dell Inspiron 5570 Specifications

General

Wireless	802.11ac Wi-Fi
Bluetooth	Bluetooth 4.1
Processor	Intel Core i5-8250U
Display	15.6-inch FHD (1920 x 1080) Anti-Glare LED-Backlit Display
RAM	8GB DDR4
Storage	1TB HDD
Graphics	Intel UHD Graphics 620
Operating System	Windows 10 Home
Battery	42WHr Battery, 3-Cell (Integrated)
Weight	4.41 lbs (2.0 kg)
Ports	2 x USB 3.1 Gen 1, 1 x USB 2.0, 1 x HDMI, 1 x SD Card Reader, 1 x Headphone/Microphone Combo
