Dell Latitude D430 - Removing the Display-Panel Brackets; Removing the Display Cable

Removing the Display-Panel Brackets


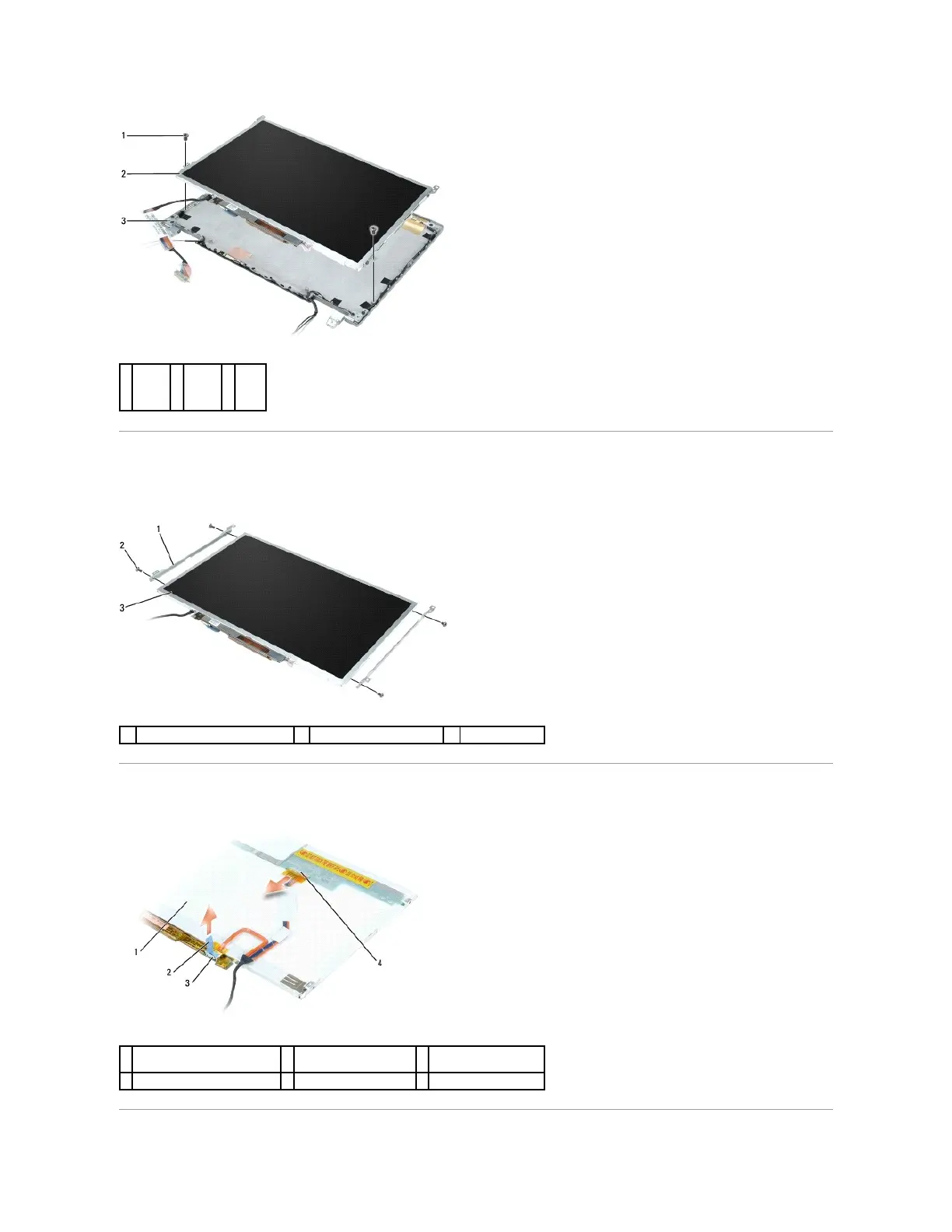

1. Remove the four M2 x 3-mm screws (two on each bracket) from the display-panel brackets.
Removing the Display Cable
1
M2 x
3-mm
screws
(2)
2
display
panel
3
top
cover
1
display-panel brackets (2)
2
M2 x 3-mm screws (4)
3
display panel
1
back of display-panel cable
assembly
2
pull-tab on inverter
connector
3
bottom flex-cable
connector
4
top flex-cable connector




