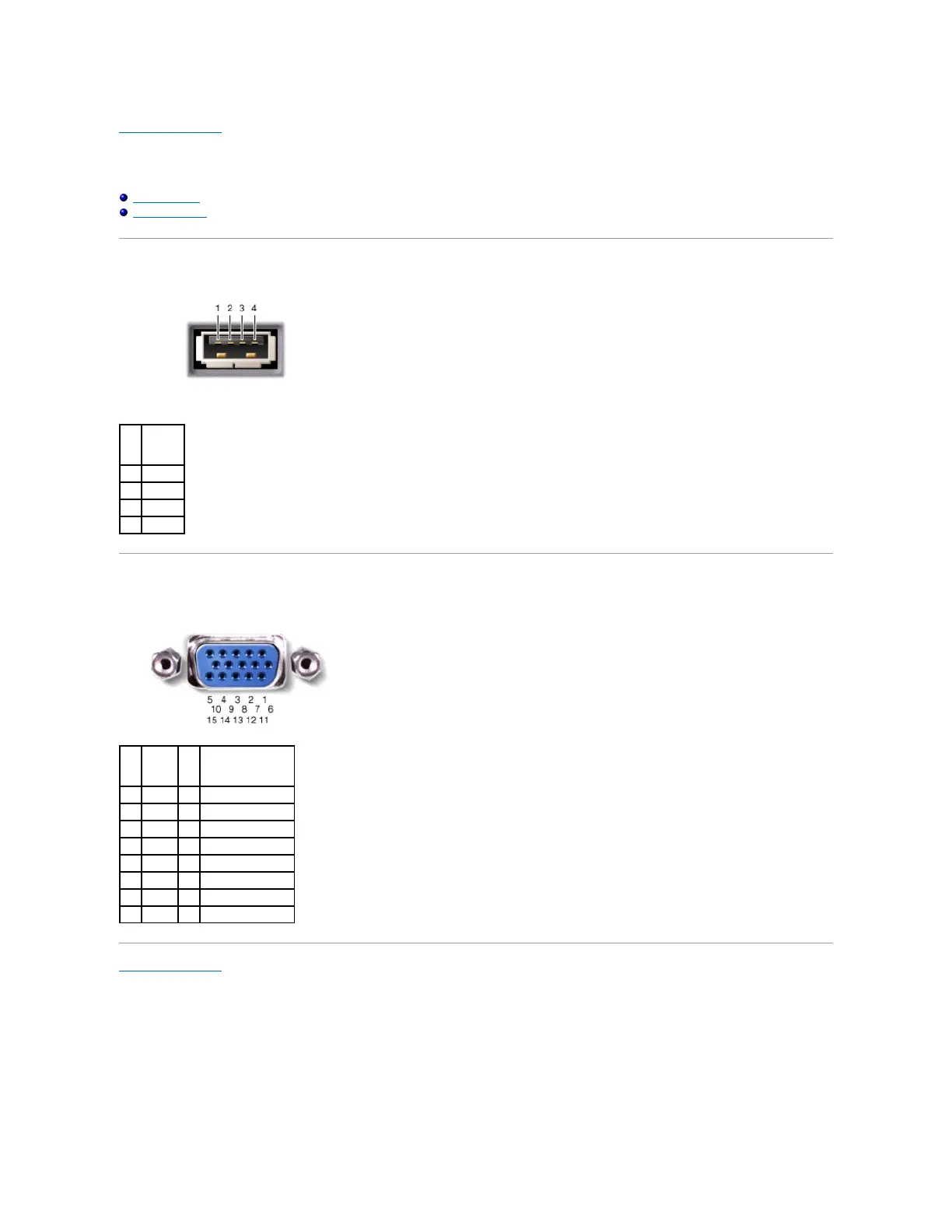

 Pin Assignments for I/O Connectors
Dell™Latitude™D430
USB Connector
Video Connector
USB Connector
Video Connector
Back to Contents Page


Pin

Signal
1
USB5V+
2
USBP–
3
USBP+
4
GND

Pin

Signal

Pin

Signal
1
CRT_R
9
5V+
2
CRT_G
10
GND
3
CRT_B
11
MONITOR_DETECT–
4
NC
12
DDC_DATA
5
GND
13
CRT_HS
6
GND
14
CRT_VS
7
GND
15
DDC_CLK
8
GND


